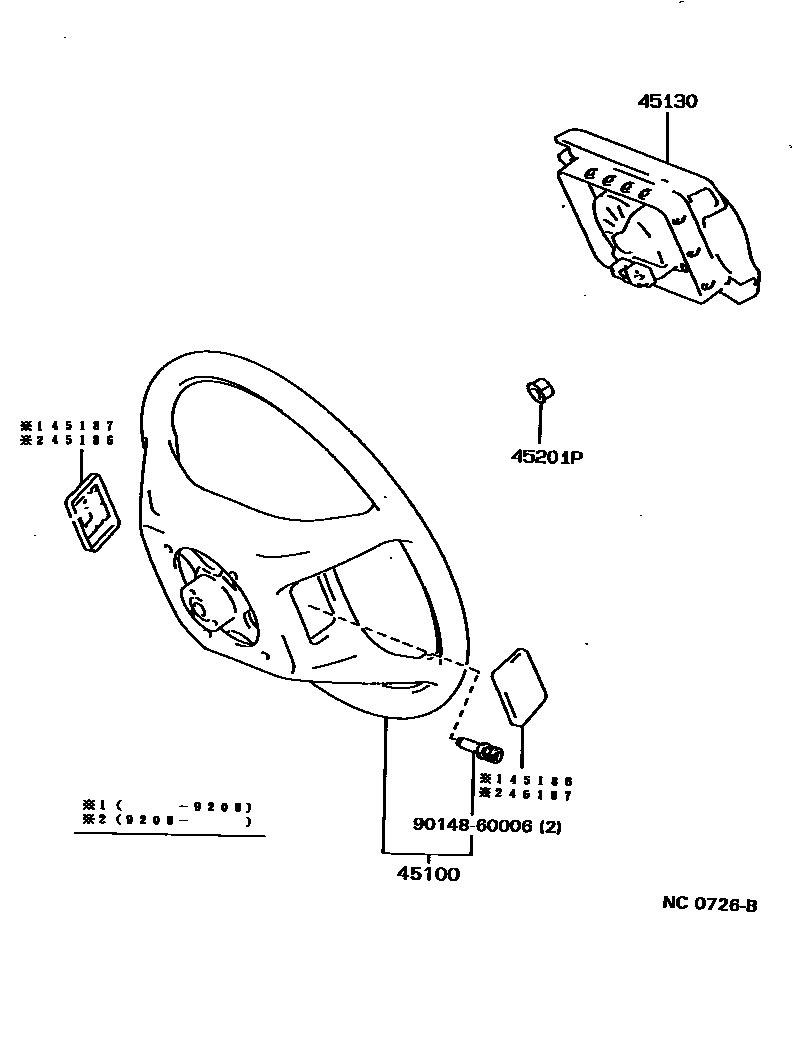

STEERING WHEEL
45100WHEEL ASSY, STEERING
BLACK,TRIM1#
MAROON,TRIM3#
DARK BLUE,TRIM8#
GREIGE,TRIM0#
LEATHER PACKAGE,BLACK,TRIM1#
LEATHER PACKAGE,MAROON,TRIM3#
LEATHER PACKAGE,DARK BLUE,TRIM8#
LEATHER PACKAGE,GREIGE,TRIM0#
45130BUTTON ASSY, HORN
BLACK,TRIM1#
MAROON,TRIM3#
DARK BLUE,TRIM8#
GREIGE,TRIM0#
45186COVER, STEERING WHEEL, LOWER NO.2
BLACK,TRIM1#
GREIGE,TRIM0#
MAROON,TRIM3#
DARK BLUE,TRIM8#
45187COVER, STEERING WHEEL, LOWER NO.3
BLACK,TRIM1#
GREIGE,TRIM0#
MAROON,TRIM3#
DARK BLUE,TRIM8#
45201PNUT, STEERING WHEEL SET
9014860006
main90148-60006
6 parts on this diagram · 1 diagram in section
