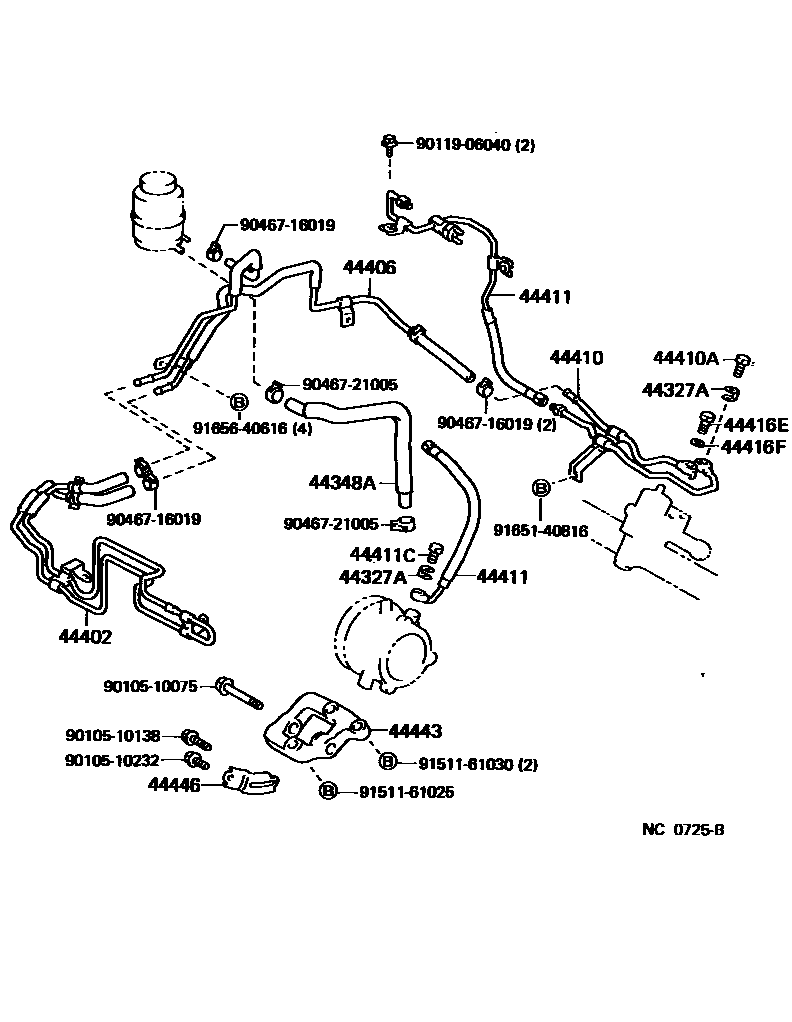

POWER STEERING TUBE
44327AGASKET, PRESSURE PORT, NO.1
VANE PUMP SIDE
GEAR SIDE
44348AHOSE, OIL RESERVOIR TO PUMP, NO.1
44402COOLER SUB-ASSY, POWER STEERING OIL, NO.1
44406TUBE SUB-ASSY, RETURN
44410TUBE ASSY, PRESSURE FEED
44410ABOLT, UNION(FOR PRESSURE FEED TUBE)
sub96341-11703
44411HOSE, PRESSURE FEED
GEAR SIDE
VANE PUMP SIDE
44411CBOLT, UNION(FOR PRESSURE FEED HOSE)
44416EBOLT, UNION(FOR RETURN TUBE)
44416FGASKET(FOR RETURN TUBE)
44443BRACKET, PUMP
44446STRUT, ADJUSTING
9010510075
main90105-10075
9010510138
main90105-10138
9010510232
main90105-10232
9011906040
main90119-06040
9046716019
main90467-16019
9046721005
main90467-21005
9151161025
main91511-61025
9151161030
main91511-61030
9165140816
main91651-40816
9165640616
main91656-40616
22 parts on this diagram · 1 diagram in section
