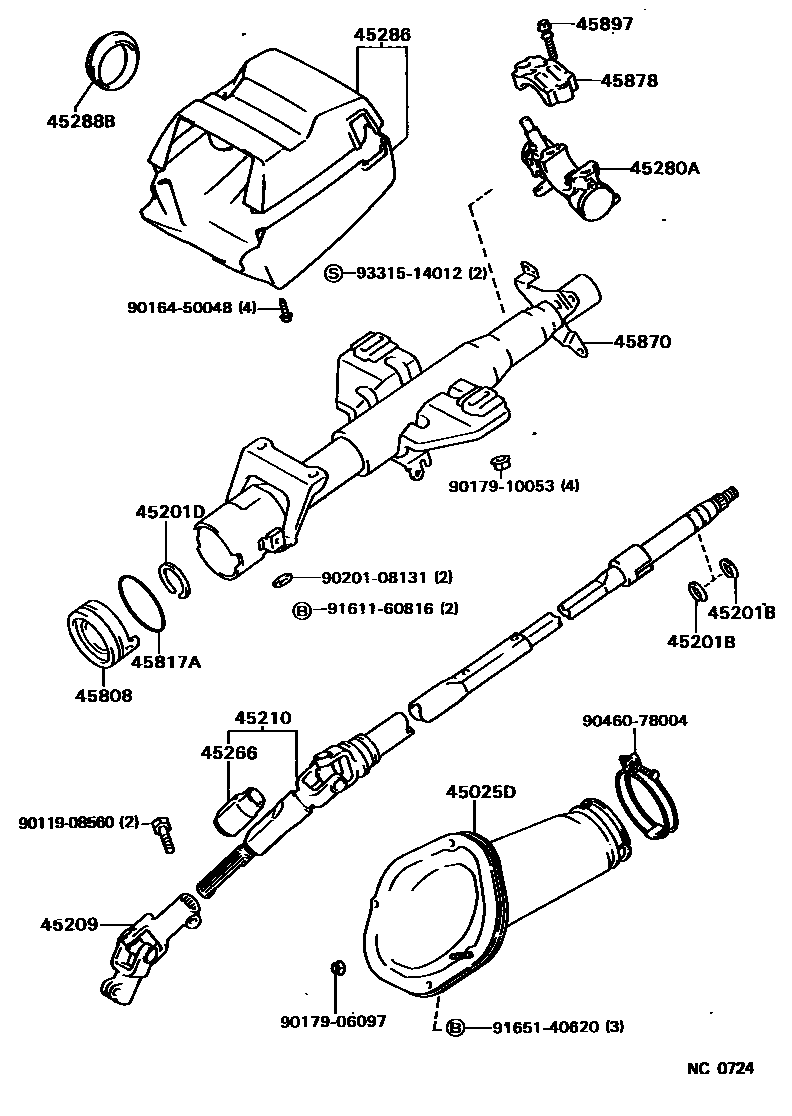

STEERING COLUMN & SHAFT

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-32120iVZV21198906-199107

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042×2iVZV21198906-199107

T=1.20

main90520-17196×2iVZV21198906-199107

T=1.35-1.45

45201DRING(FOR STEERING MAIN SHAFT)

main90520-28061iVZV21198906-199107

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-50010iVZV21198906-199107

45210SHAFT ASSY, STEERING MAIN

main45210-32060iVZV21198906-199012

main45210-32061iVZV21199012-199107

45266COVER, STEERING INTERMEDIATE SHAFT DUST

main45266-20010iVZV21198906-199107

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-32220iVZV21..5F198906-199107

main45280-32230iVZV21..4FC198906-199107

45286COVER, STEERING COLUMN

main45286-32932-01iVZV21198906-199107

BLACK,TRIM1#

main45286-32932-02iVZV21198906-199107

MAROON,TRIM3#

main45286-32932-04iVZV21198906-199107

DARK BLUE,TRIM8#

main45286-32932-05iVZV21198906-199107

GREIGE,TRIM0#

45288BCOVER, STEERING COLUMN, UPPER

main45288-32060-01iVZV21198906-199107

BLACK,TRIM1#

main45288-32060-02iVZV21198906-199107

MAROON,TRIM3#

main45288-32060-04iVZV21198906-199107

DARK BLUE,TRIM8#

main45288-32060-05iVZV21198906-199107

GREIGE,TRIM0#

45808STOPPER SUB-ASSY, STEERING SHAFT THRUST

main45808-32010iVZV21198906-199001

main45808-32020iVZV21199001-199107

45817ARING, O(FOR STEERING SHAFT THRUST STOPPER)

main90301-54002iVZV21198906-199107

45870TUBE ASSY, STEERING COLUMN

main45870-32130iVZV21198906-199107

45878BRACKET, STEERING COLUMN UPPER SUPPORT

main45878-32080iVZV21198906-199107

45897BOLT, STEERING LOCK SET

main45897-12020×2iVZV21198906-199107

9011908560

main90119-08560

9016450048

main90164-50048

9017906097

main90179-06097

9017910053

main90179-10053

9020108131

main90201-08131

9046078004

main90460-78004

9161160816

main91611-60816

9165140620

main91651-40620

9331514012

main93315-14012

23 parts on this diagram · 1 diagram in section
