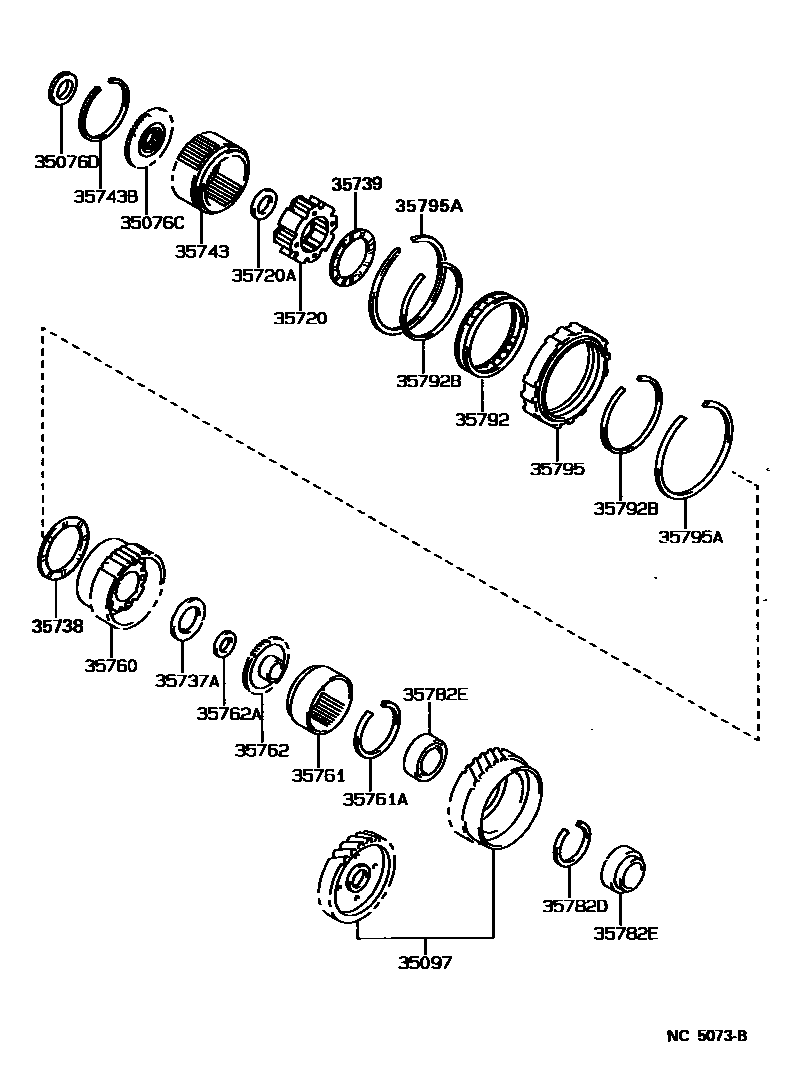

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)

35076CFLANGE SUB-ASSY, FRONT PLANETARY RING GEAR

main35076-32020iVZV21..4FC198906-199105

35076DBEARING, THRUST NEEDLE ROLLER(FOR FRONT PLANETARY FLANGE)

main90374-31001iVZV21..4FC198906-199105

35097COUNTER GEAR KIT, AUTOMATIC TRANSAXLE

main35097-32020iVZV21..4FC198906-199107

35720GEAR ASSY, FRONT PLANETARY

main35720-32020iVZV21..4FC198906-199105

35720ABEARING, THRUST NEEDLE ROLLER (FOR FRONT PLANETARY GEAR)

main90374-30008iVZV21..4FC198906-199105

35737AWASHER, PLANETARY CARRIER THRUST, NO.1

main35738-32030iVZV21..4FC198906-199105

35738WASHER, PLANETARY CARRIER THRUST, NO.2

main35738-32020iVZV21..4FC198906-199105

35739WASHER, PLANETARY CARRIER THRUST, NO.3

main35739-32020iVZV21..4FC198906-199105

35743GEAR, FRONT PLANETARY RING

main35743-32030iVZV21..4FC198906-199105

35743BRING, HOLE SNAP (FOR FRONT PLANETARY RING GEAR)

main90521-99014iVZV21..4FC198906-199105

35760GEAR ASSY, REAR PLANETARY

main35760-32020iVZV21..4FC198906-199105

35761GEAR, REAR PLANETARY RING

main35761-32020iVZV21..4FC198906-199105

35761ARING, HOLE SNAP (FOR REAR PLANETARY RING GEAR)

main90521-90001iVZV21..4FC198906-199105

35762FLANGE, REAR PLANETARY RING GEAR

main35762-32021iVZV21..4FC198906-199105

35762ABEARING, THRUST NEEDLE ROLLER (FOR REAR PLANETARY FLANGE)

main90374-22002iVZV21..4FC198906-199105

35782DRING, HOLE SNAP(FOR COUNTER DRIVE GEAR)

main90521-67001iVZV21..4FC198906-199107

35782EBEARING(FOR COUNTER DRIVE GEAR)

main90368-40004×2iVZV21..4FC198906-199107

35792CLUTCH, 1 WAY, NO.2

main35792-32020iVZV21..4FC198906-199107

35792BRING, HOLE SNAP (FOR 1 WAY CLUTCH NO.2)

main90521-99010×2iVZV21..4FC198906-199107

35795RACE, 1 WAY CLUTCH OUTER

main35795-32010iVZV21..4FC198906-199107

35795ARING, HOLE SNAP (FOR 1 WAY CLUTCH OUTER RACE)

main90521-99011×2iVZV21..4FC198906-199107

21 parts on this diagram · 1 diagram in section
