TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

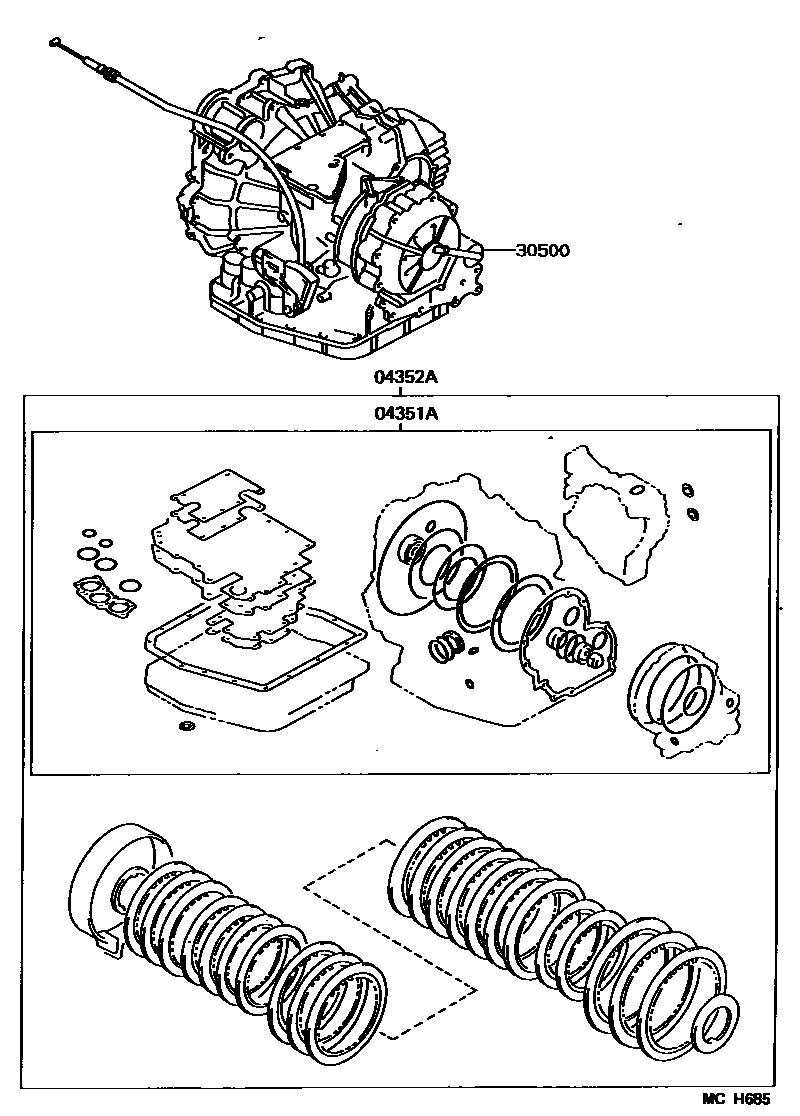

Parts diagram

04351AGASKET KIT, TRANSAXLE OVERHAUL(ATM)

main04351-32050i198906-199006

main04351-32051i199006-199107

04352AKIT, TRANSAXLE OVERHAUL(ATM)

main04352-32050i198906-199006

main04352-32051i199006-199107

30500TRANSAXLE ASSY, AUTOMATIC

main30500-32530i198906-199106

3 parts on this diagram · 1 diagram in section
