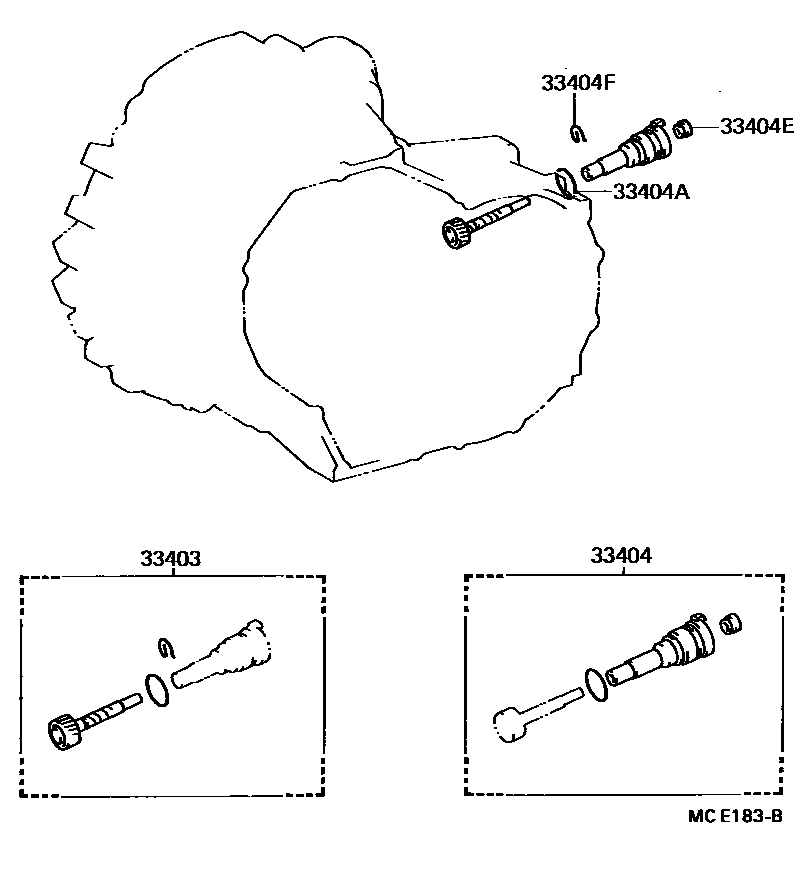

SPEEDOMETER DRIVEN GEAR (MTM)

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33403-39215iVZV21..5F198906-199102

N=29,MARK 29:35

main33403-39216iVZV21..5F199102-199107

N=29,MARK 29:35

33404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)

main33404-17010iVZV21..5F198906-199107

33404ARING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main96721-24030iVZV21..5F198906-199107

33404ESEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90310-09003iVZV21..5F198906-199107

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iVZV21..5F198906-199107

5 parts on this diagram · 1 diagram in section
