CLUTCH & RELEASE FORK

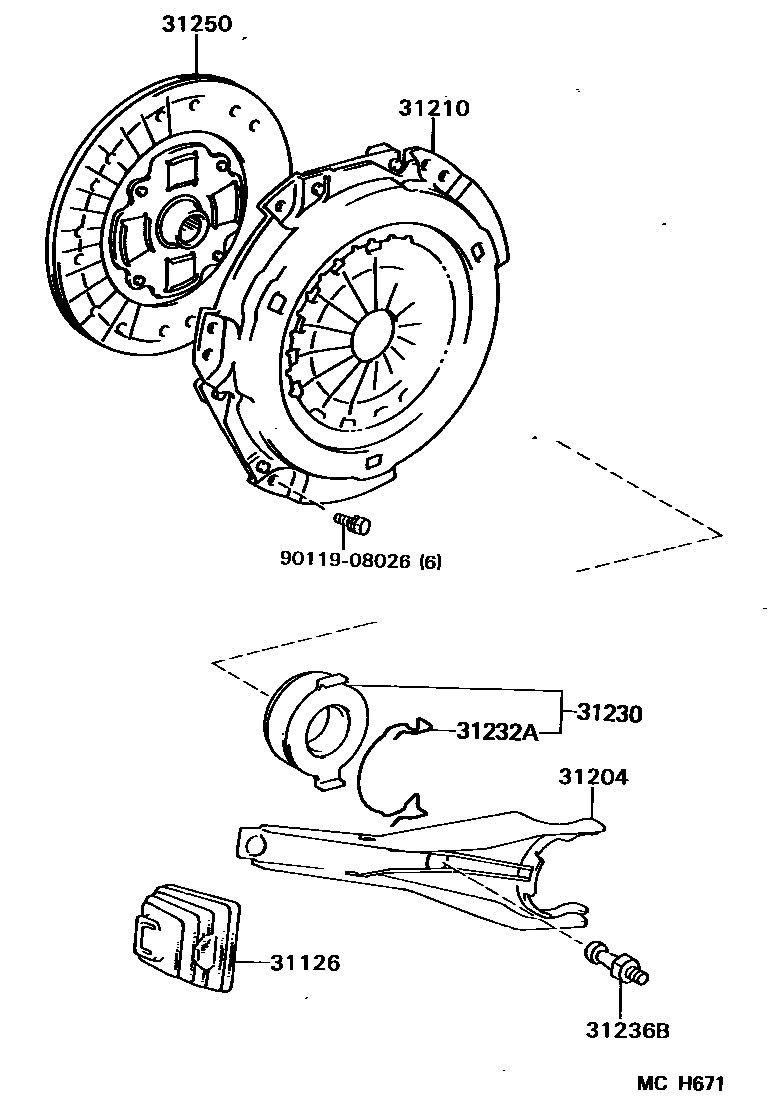

Parts diagram

31126BOOT, CLUTCH RELEASE FORK

main31126-32010i198906-199107

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-20100i198906-199107

31210COVER ASSY, CLUTCH

main31210-32091i198906-199107

31230BEARING ASSY, CLUTCH RELEASE

main31230-20170i198906-199107

31232ACLIP, RELEASE BEARING HUB

main31232-20020i198906-199107

31236BSUPPORT, RELEASE FORK

main31236-20060i198906-199107

31250DISC ASSY, CLUTCH

main31250-20140i198906-199107

9011908026

main90119-08026

8 parts on this diagram · 1 diagram in section
