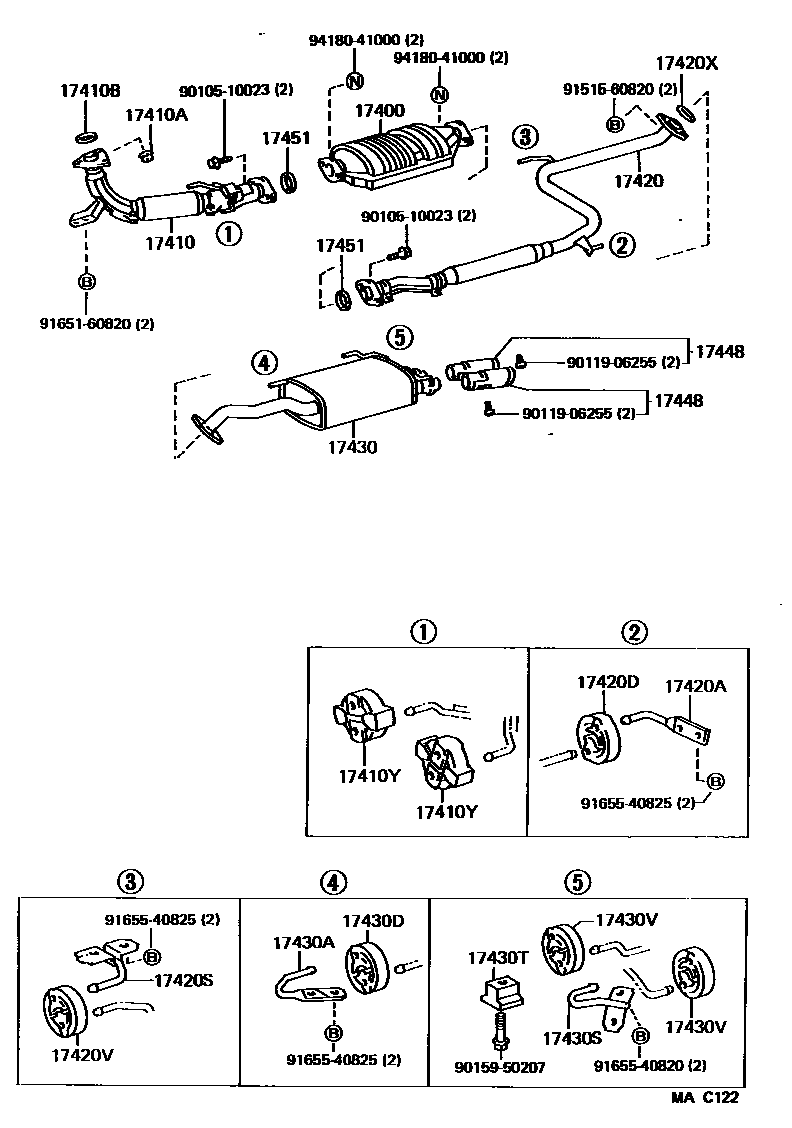

EXHAUST PIPE
17400CONVERTER ASSY, W/CATALYST
CALIFORNIA SPEC
17410PIPE ASSY, EXHAUST, FRONT
17410ANUT, EXHAUST PIPE SET STUD BOLT
17410BGASKET, EXHAUST PIPE
17410YBOLT OR RING, EXHAUST PIPE FRONT (FOR REAR)
17420PIPE ASSY, EXHAUST, CENTER
CALIFORNIA SPEC
17420ABRACKET, EXHAUST PIPE CENTER, FRONT
17420DBOLT OR RING, EXHAUST PIPE CENTER, FRONT
17420SBRACKET, EXHAUST PIPE CENTER, REAR
17420VBOLT OR RING, EXHAUST PIPE CENTER, REAR
17420XGASKET, EXHAUST PIPE, CENTER
17430PIPE ASSY, EXHAUST, TAIL
17430ABRACKET, EXHAUST TAILPIPE(FOR FRONT)
17430DBOLT OR RING, EXHAUST TAILPIPE (FOR FRONT)
17430SBRACKET, EXHAUST TAILPIPE (FOR REAR)
17430TCUSHION, EXHAUST TAILPIPE (FOR REAR)
17430VBOLT OR RING, EXHAUST TAILPIPE (FOR REAR)
17448BAFFLE, TAILPIPE
17451GASKET, EXHAUST PIPE
9010510023
main90105-10023
9011906255
main90119-06255
9015950207
main90159-50207
9151560820
main91515-60820
9165160820
main91651-60820
9165540820
main91655-40820
9165540825
main91655-40825
9418041000
main94180-41000
27 parts on this diagram · 1 diagram in section
