WATER PUMP

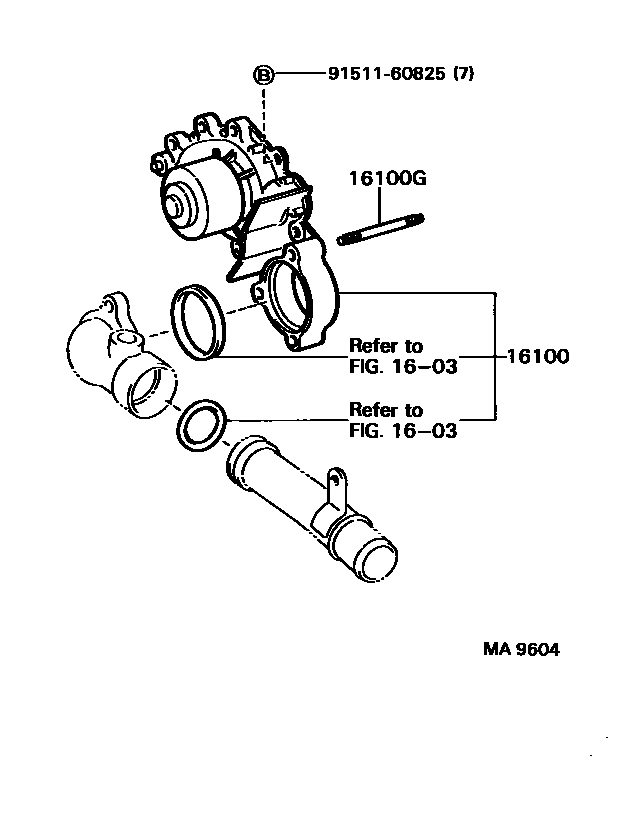

Parts diagram

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

16100PUMP ASSY, ENGINE WATER

main16100-69206i198906-199105

main16100-69305i199105-199107

16100GBOLT, STUD(FOR WATER PUMP SET)

main90116-08270×3i198906-199107

9151160825

main91511-60825

4 parts on this diagram · 1 diagram in section
