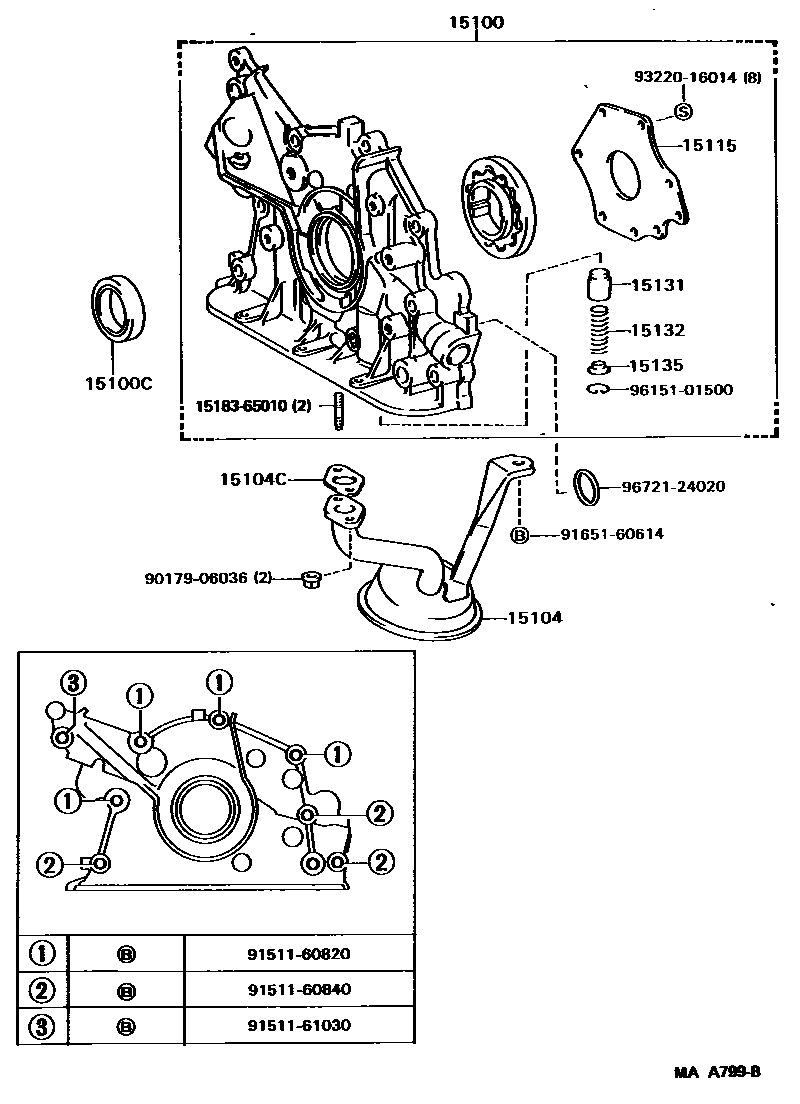

ENGINE OIL PUMP

15100PUMP ASSY, OIL

main15100-62020i2VZFE..VZV21198906-199107

15100CSEAL(FOR OIL PUMP)

main90311-40006i2VZFE..VZV21198906-198911

main90311-40013i2VZFE..VZV21198911-199107

15104STRAINER SUB-ASSY, OIL

main15104-62010i2VZFE..VZV21198906-199107

15104CGASKET(FOR OIL STRAINER)

main15147-62020i2VZFE..VZV21198906-199107

15115COVER, OIL PUMP

main15115-62010i2VZFE..VZV21198906-199107

15131VALVE, OIL PUMP RELIEF

main15131-24010i2VZFE..VZV21198906-199107

15132SPRING, OIL PUMP RELIEF VALVE

main15132-62010i2VZFE..VZV21198906-199107

15135RETAINER, OIL PUMP RELIEF VALVE

main15135-15010i2VZFE..VZV21198906-199107

1518365010BOLT, UNION(FOR OIL PUMP)

main15183-65010

9017906036

main90179-06036

9151160820

main91511-60820

9151160840

main91511-60840

9151161030

main91511-61030

9165160614

main91651-60614

9322016014

main93220-16014

9615101500

main96151-01500

9672124020

main96721-24020

17 parts on this diagram · 1 diagram in section
