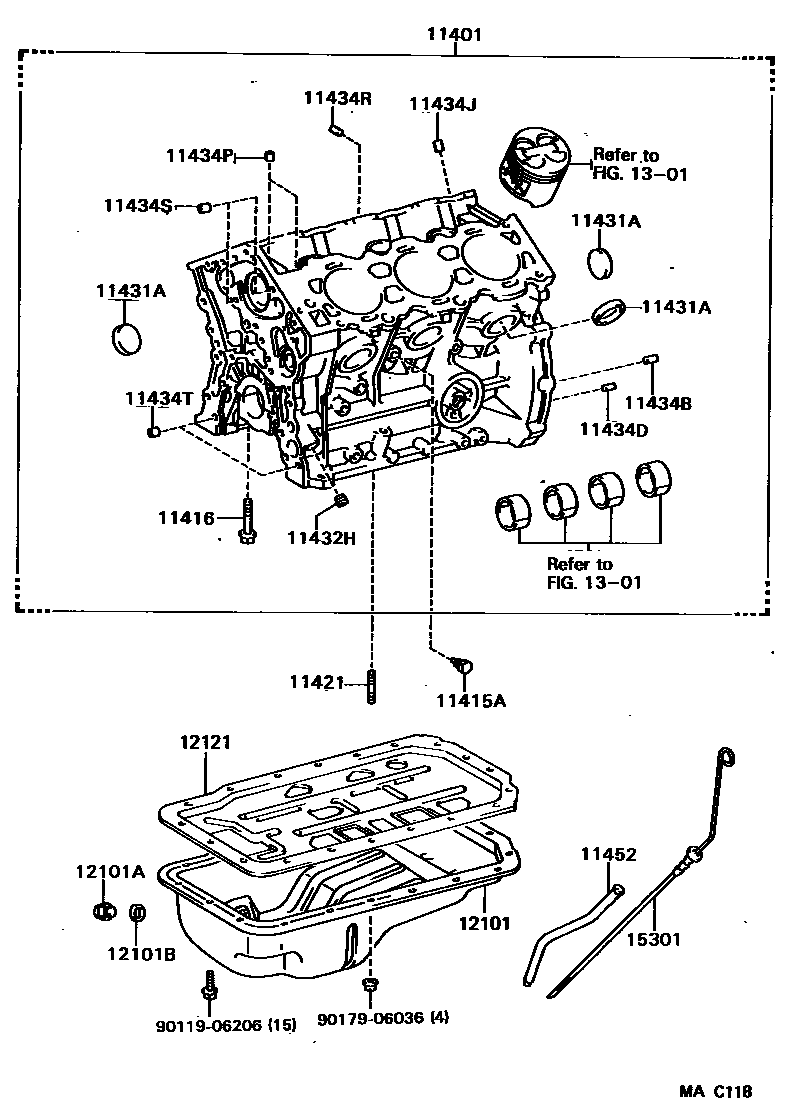

CYLINDER BLOCK
11401BLOCK SUB-ASSY, CYLINDER
sub11401-69386
11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
11416BOLT(FOR CRANKSHAFT BEARING CAP SET)
sub90910-02176
11421BOLT, STUD(FOR OIL PAN)
11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
11432HPLUG, W/HEAD TAPER SCREW, NO.5
11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)
L=22,OD=10
11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
L=14,OD=6
11434JPIN, RING (FOR CYLINDER HEAD SET)
11434PPIN, STRAIGHT(FOR OIL PUMP SET)
L=8,OD=11
11434RPIN, STRAIGHT(FOR DRIVE SHAFT BEARING BRACKET)
11434SPIN, RING(FOR WATER PUMP SET)
11434TPIN, RING(FOR TIMING BELT IDLER BRACKET SET)
11452GUIDE, OIL LEVEL GAGE
12101APLUG(FOR OIL PAN DRAIN)
12121PLATE, OIL PAN BAFFLE, NO.1
sub12122-62011
1301
15301GAGE SUB-ASSY, OIL LEVEL
9011906206
main90119-06206
9017906036
main90179-06036
22 parts on this diagram · 1 diagram in section
