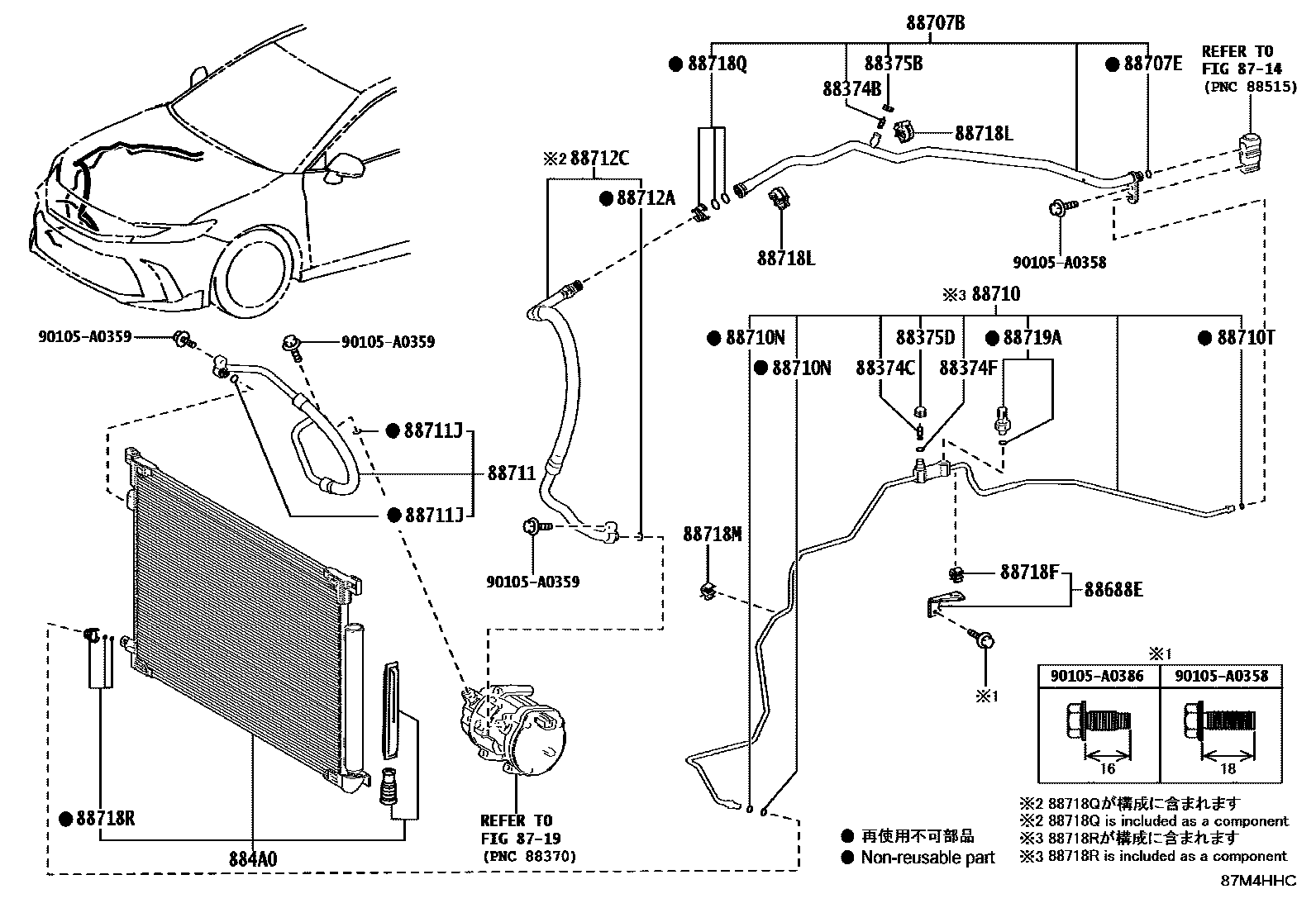

HEATING & AIR CONDITIONING - COOLER PIPING

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88374BVALVE, SERVICE, NO.1

main88374-30010i202404

88374CVALVE, SERVICE, NO.2

main88374-30010i202404

88374FRING, O, NO.1 (FOR SERCIVE VALVE)

main90099-14122i202404

ID=10.6,OD=14.16

88375BCAP, SERVICE VALVE, NO.1

main88375-30310i202404

88375DCAP, SERVICE VALVE, NO.2

main88375-30320i202404

884A0CONDENSER ASSY, COOLER

main884A0-0R040i202404

88688EBRACKET, COOLER REFRIGERANT HOSE, NO.1

main88688-06360i202404

88707BTUBE SUB-ASSY, SUCTION, B

main88707-06360i202404

88707ERING, O, NO.2(FOR SUCTION TUBE)

main90069-08009i202404

ID=13.4,OD=18.2

88710TUBE ASSY, AIR CONDITIONER

main88710-06720i202404

88710NRING, O, NO.1(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)

main90099-14158×2i202404

ID=6.7,OD=10.3

88710TRING, O, NO.3(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)

main90069-08011i202404

ID=6.7,OD=10.3

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-06610i202404

88711JRING, O, NO.1(FOR DISCHARGE HOSE)

main90069-08007×2i202404

ID=10.8,OD=15.6

88712ARING, O(FOR COOLER REFRIGERANT SUCTION HOSE)

main90069-08009i202404

ID=13.4,OD=18.2

88712CHOSE, SUCTION

main88704-06270i202404

88718FCLAMP, NO.1(FOR COOLER REFRIGERANT HOSE)

main88718-58050i202404

88718LCLAMP, PIPING

main88718-06520×2i202404

88718MCLAMP, PIPING

main88718-06530i202404

88718QCLAMP, PIPING

main88718-52280i202404

88718RCLAMP, PIPING

main88718-1E150i202404

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-11010i202404

90105A0358

main90105-A0358

90105A0359

main90105-A0359

90105A0386

main90105-A0386

27 parts on this diagram · 1 diagram in section
