HEATING & AIR CONDITIONING - WATER PIPING

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

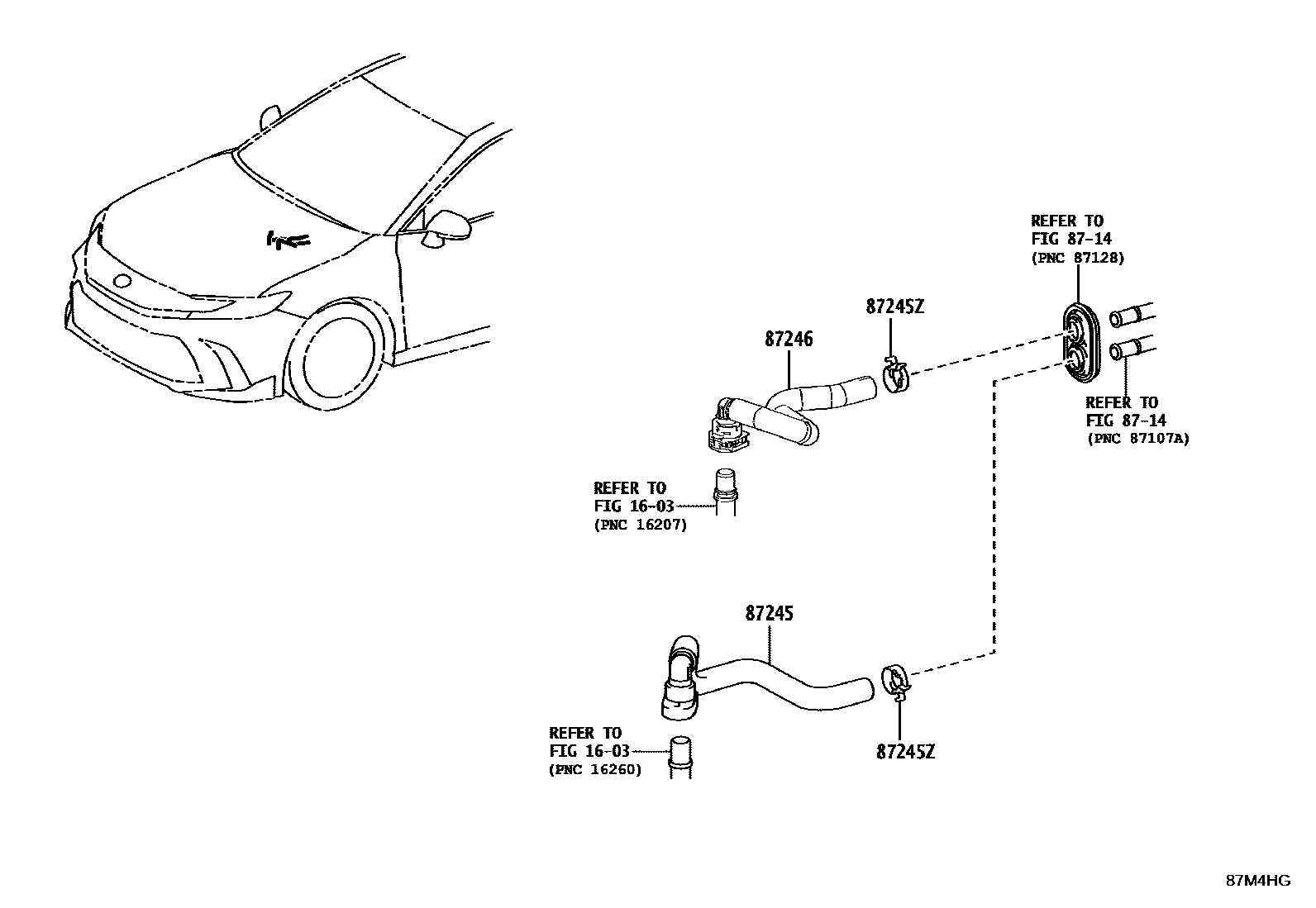

87245HOSE, HEATER WATER, INLET

main87209-06060iAXVH8#202404

87245ZCLIP OR CLAMP (FOR HEATER WATER HOSE)

main90466-A0029×2iAXVH8#202404

(L)

main96138-42501×2iAXVH8#202404

(J)

87246HOSE, HEATER WATER, OUTLET

main87209-06070iAXVH8#202404

5 parts on this diagram · 1 diagram in section
