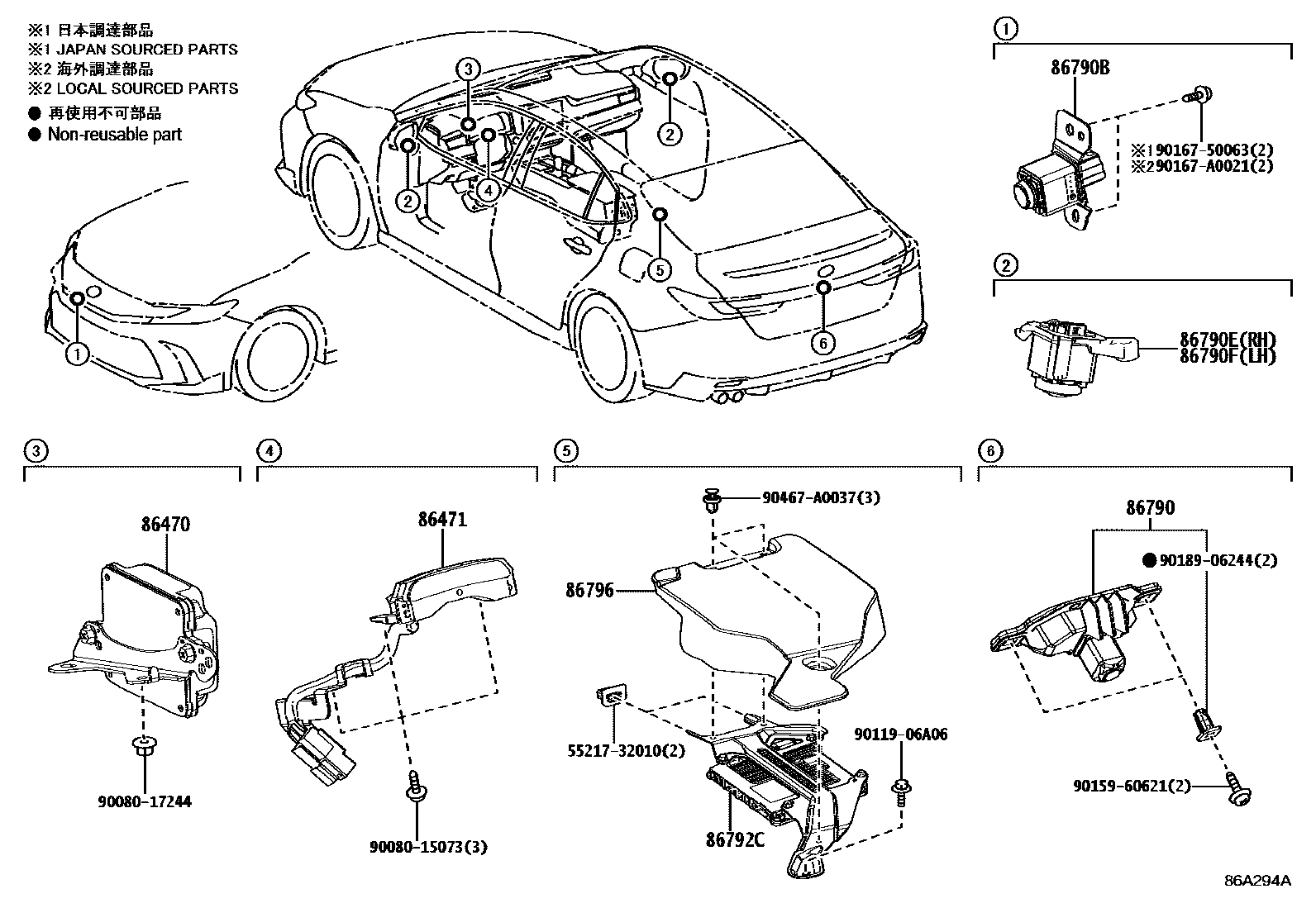

CAMERA & REAR MONITOR DISPLAY
86470COMPUTER ASSY, DRIVER MONITOR
LANE KEEPING SYSTEM-WITH(TOUCH & EDSS & L2PT)
86471CAMERA, DRIVER MONITOR
LANE KEEPING SYSTEM-WITH(TOUCH & EDSS & L2PT)
86790CAMERA ASSY, TELEVISION
REAR & REAR SIDE MONITOR-WITH(*BSM & SAFE EXIT ASSIST)
OUTSIDE REAR VIEW MIRROR-MANUAL RETRACTABLE & *HEA & *BSM & *PVM
86790BCAMERA ASSY, TELEVISION, FR
OUTSIDE REAR VIEW MIRROR-MANUAL RETRACTABLE & *HEA & *BSM & *PVM
86790ECAMERA ASSY, TELEVISION, SIDE RH
OUTSIDE REAR VIEW MIRROR-MANUAL RETRACTABLE & *HEA & *BSM & *PVM
86790FCAMERA ASSY, TELEVISION, SIDE LH
OUTSIDE REAR VIEW MIRROR-MANUAL RETRACTABLE & *HEA & *BSM & *PVM
86792CCOMPUTER, PARKING ASSIST
ADVANCED SAFETY PACKAGE&OUTSIDE REAR VIEW MIRROR-MANUAL RETRACTABLE & *HEA & *BSM& *PVM&AUDIO-12.3INCH PREMIUM 9SPEAKER
86796COVER, COMPUTER PARKING ASSIST
ADVANCED SAFETY PACKAGE&OUTSIDE REAR VIEW MIRROR-MANUAL RETRACTABLE & *HEA & *BSM& *PVM&AUDIO-12.3INCH PREMIUM 9SPEAKER
5521732010STRIP, DASH PANEL SILENCER FINISH
main55217-32010
9008015073
main90080-15073
9008017244
main90080-17244
9011906A06
main90119-06A06
9015960621
main90159-60621
9016750063
main90167-50063
90167A0021
main90167-A0021
9018906244
main90189-06244
90467A0037
main90467-A0037
17 parts on this diagram · 1 diagram in section
