RADIO RECEIVER & AMPLIFIER & CONDENSER

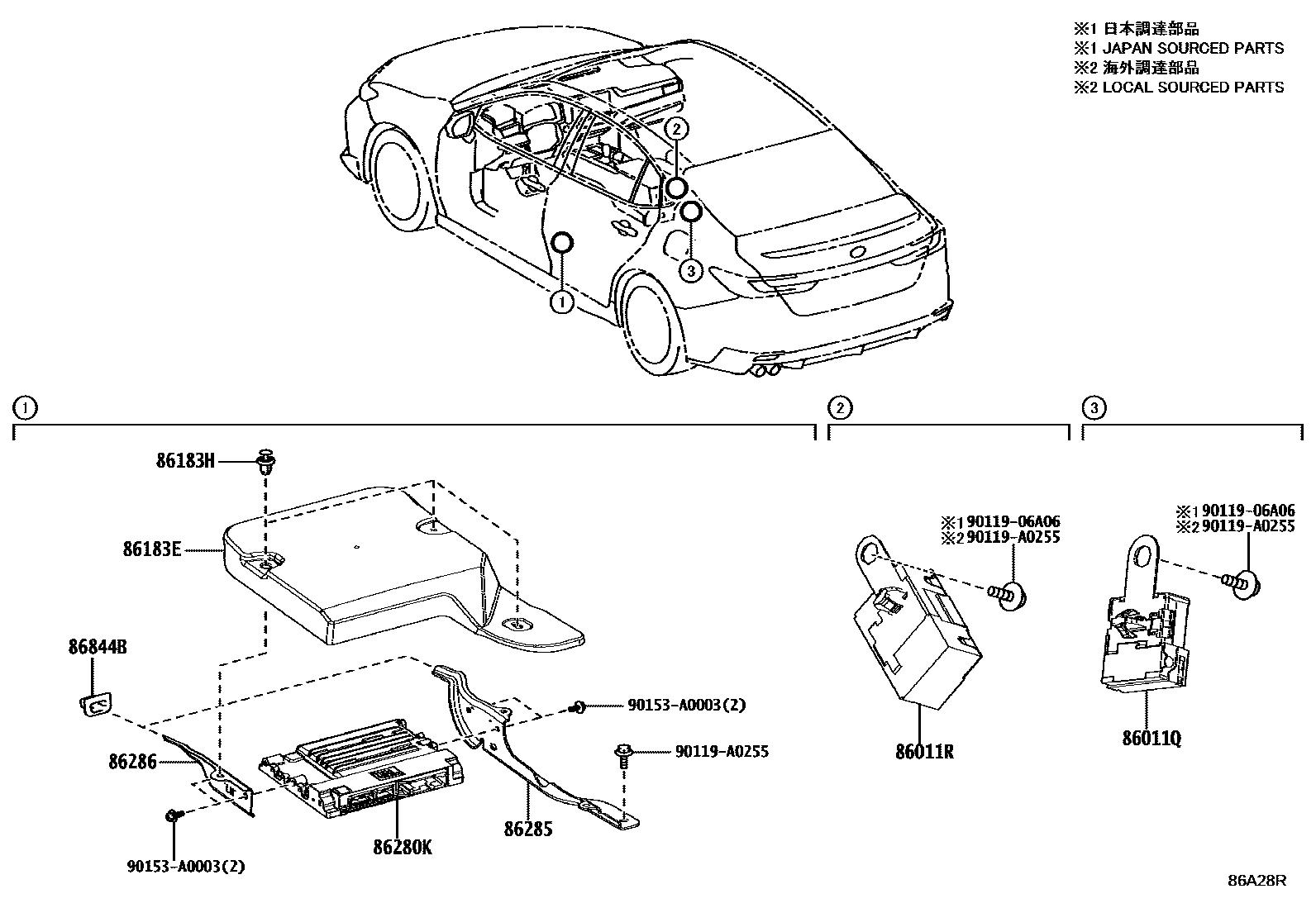

Parts diagram

86011QCONDENSER, RADIO SETTING

main90980-04189i202404

86011RCONDENSER, RADIO SETTING

main90980-04204i202404

86183ECOVER, AUDIO AMPLIFIER

main86183-AQ010i202404

AUDIO-12.3INCH PREMIUM 9SPEAKER

86183HCLIP, AUDIO AMPLIFIER COVER

main90467-07215×3i202404

AUDIO-12.3INCH PREMIUM 9SPEAKER

86280KAMPLIFIER ASSY, STEREO COMPONENT

main86280-AQ010i202404

AUDIO-12.3INCH PREMIUM 9SPEAKER

86285BRACKET, AMPLIFIER, NO.1

main86285-AQ010i202404

AUDIO-12.3INCH PREMIUM 9SPEAKER

86286BRACKET, AMPLIFIER, NO.2

main86286-AQ011i202404

AUDIO-12.3INCH PREMIUM 9SPEAKER

86844BRETAINER, AUDIO AMPLIFIER COVER

main55217-32010×2i202404

AUDIO-12.3INCH PREMIUM 9SPEAKER

9011906A06

main90119-06A06

90119A0255

main90119-A0255

90153A0003

main90153-A0003

11 parts on this diagram · 1 diagram in section
