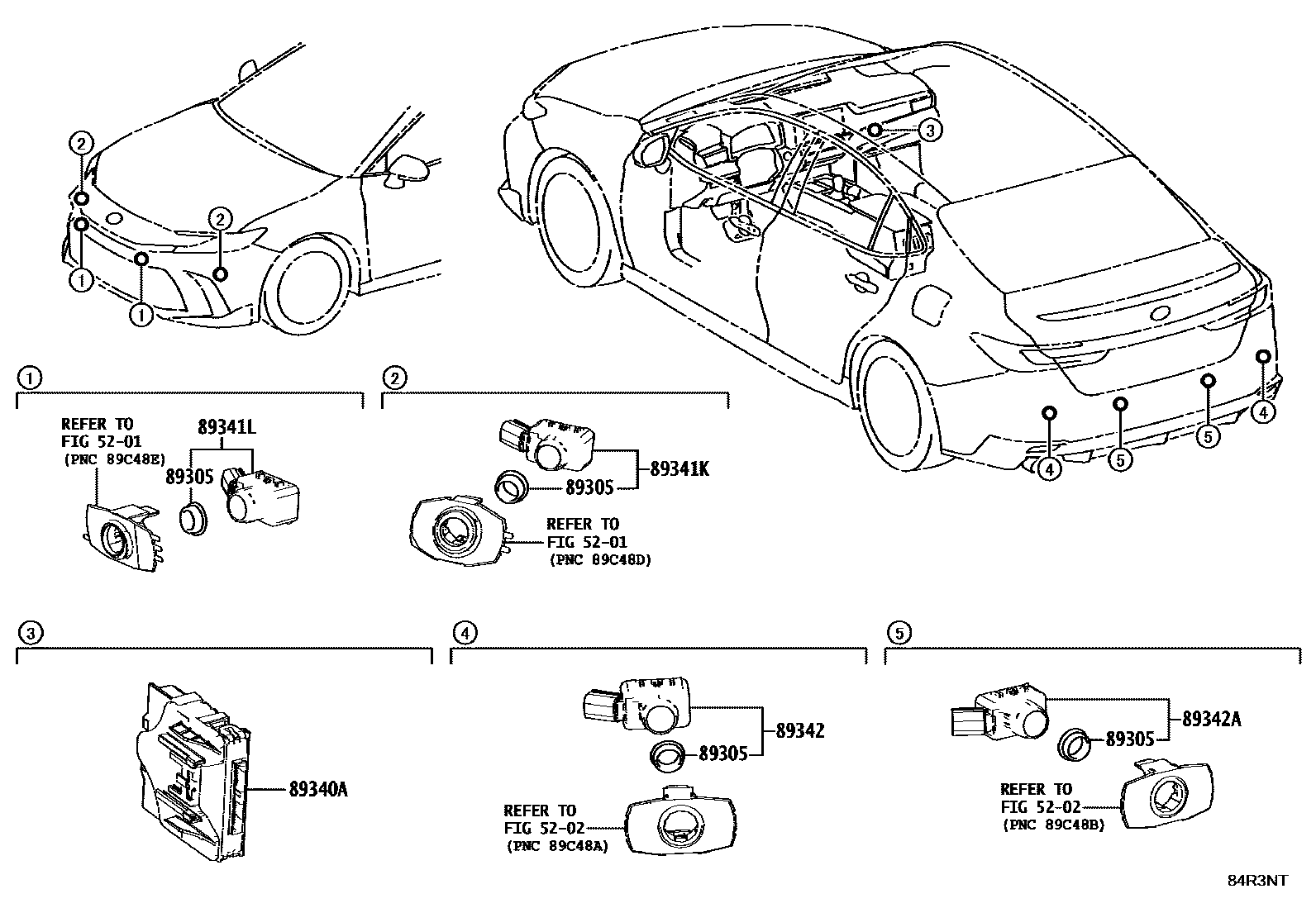

CLEARANCE & BACK SONAR
5201FRONT BUMPER & BUMPER STAY
5202REAR BUMPER & BUMPER STAY
89305CUSHION SET, ULTRASONIC SENSOR
ADVANCED SAFETY PACKAGE
89340ACOMPUTER ASSY, CLEARANCE WARNING
ADVANCED SAFETY PACKAGE,*614
89341KSENSOR, ULTRASONIC, FRONT CORNER
ADVANCED SAFETY PACKAGE,PLATINUM WHITE PEARL MC.,089; ADVANCED SAFETY PACKAGE,PLATINUM WHITE PEARL MC.,089 ,2PS
ADVANCED SAFETY PACKAGE,PRECIOUS METAL,1L5; ADVANCED SAFETY PACKAGE,PRECIOUS METAL,1L5 ,2YJ
ADVANCED SAFETY PACKAGE,DK.GRAY,1L7
ADVANCED SAFETY PACKAGE,ATTITUDE BLACK MC.,218
ADVANCED SAFETY PACKAGE,EMOTIONAL RED 2,2SC ,3U5; ADVANCED SAFETY PACKAGE,EMOTIONAL RED 2,3U5
ADVANCED SAFETY PACKAGE,LABRADORITE,795; ADVANCED SAFETY PACKAGE,LABRADORITE,795 ,M04
ADVANCED SAFETY PACKAGE,DK.BLUE,8Q4
89341LSENSOR, ULTRASONIC, FRONT CENTER
ADVANCED SAFETY PACKAGE,PLATINUM WHITE PEARL MC.,089; ADVANCED SAFETY PACKAGE,PLATINUM WHITE PEARL MC.,089 ,2PS
ADVANCED SAFETY PACKAGE,PRECIOUS METAL,1L5; ADVANCED SAFETY PACKAGE,PRECIOUS METAL,1L5 ,2YJ
ADVANCED SAFETY PACKAGE,DK.GRAY,1L7
ADVANCED SAFETY PACKAGE,ATTITUDE BLACK MC.,218
ADVANCED SAFETY PACKAGE,EMOTIONAL RED 2,2SC ,3U5; ADVANCED SAFETY PACKAGE,EMOTIONAL RED 2,3U5
ADVANCED SAFETY PACKAGE,LABRADORITE,795; ADVANCED SAFETY PACKAGE,LABRADORITE,795 ,M04
ADVANCED SAFETY PACKAGE,DK.BLUE,8Q4
89342SENSOR, ULTRASONIC, REAR CORNER
ADVANCED SAFETY PACKAGE,PLATINUM WHITE PEARL MC.,089; ADVANCED SAFETY PACKAGE,PLATINUM WHITE PEARL MC.,089 ,2PS
ADVANCED SAFETY PACKAGE,PRECIOUS METAL,1L5; ADVANCED SAFETY PACKAGE,PRECIOUS METAL,1L5 ,2YJ
ADVANCED SAFETY PACKAGE,DK.GRAY,1L7
ADVANCED SAFETY PACKAGE,ATTITUDE BLACK MC.,218
ADVANCED SAFETY PACKAGE,EMOTIONAL RED 2,2SC ,3U5; ADVANCED SAFETY PACKAGE,EMOTIONAL RED 2,3U5
ADVANCED SAFETY PACKAGE,LABRADORITE,795; ADVANCED SAFETY PACKAGE,LABRADORITE,795 ,M04
ADVANCED SAFETY PACKAGE,DK.BLUE,8Q4
89342ASENSOR, ULTRASONIC, REAR CENTER
ADVANCED SAFETY PACKAGE,PLATINUM WHITE PEARL MC.,089; ADVANCED SAFETY PACKAGE,PLATINUM WHITE PEARL MC.,089 ,2PS
ADVANCED SAFETY PACKAGE,PRECIOUS METAL,1L5; ADVANCED SAFETY PACKAGE,PRECIOUS METAL,1L5 ,2YJ
ADVANCED SAFETY PACKAGE,DK.GRAY,1L7
ADVANCED SAFETY PACKAGE,ATTITUDE BLACK MC.,218
ADVANCED SAFETY PACKAGE,EMOTIONAL RED 2,2SC ,3U5; ADVANCED SAFETY PACKAGE,EMOTIONAL RED 2,3U5
ADVANCED SAFETY PACKAGE,LABRADORITE,795; ADVANCED SAFETY PACKAGE,LABRADORITE,795 ,M04
ADVANCED SAFETY PACKAGE,DK.BLUE,8Q4
8 parts on this diagram · 1 diagram in section
