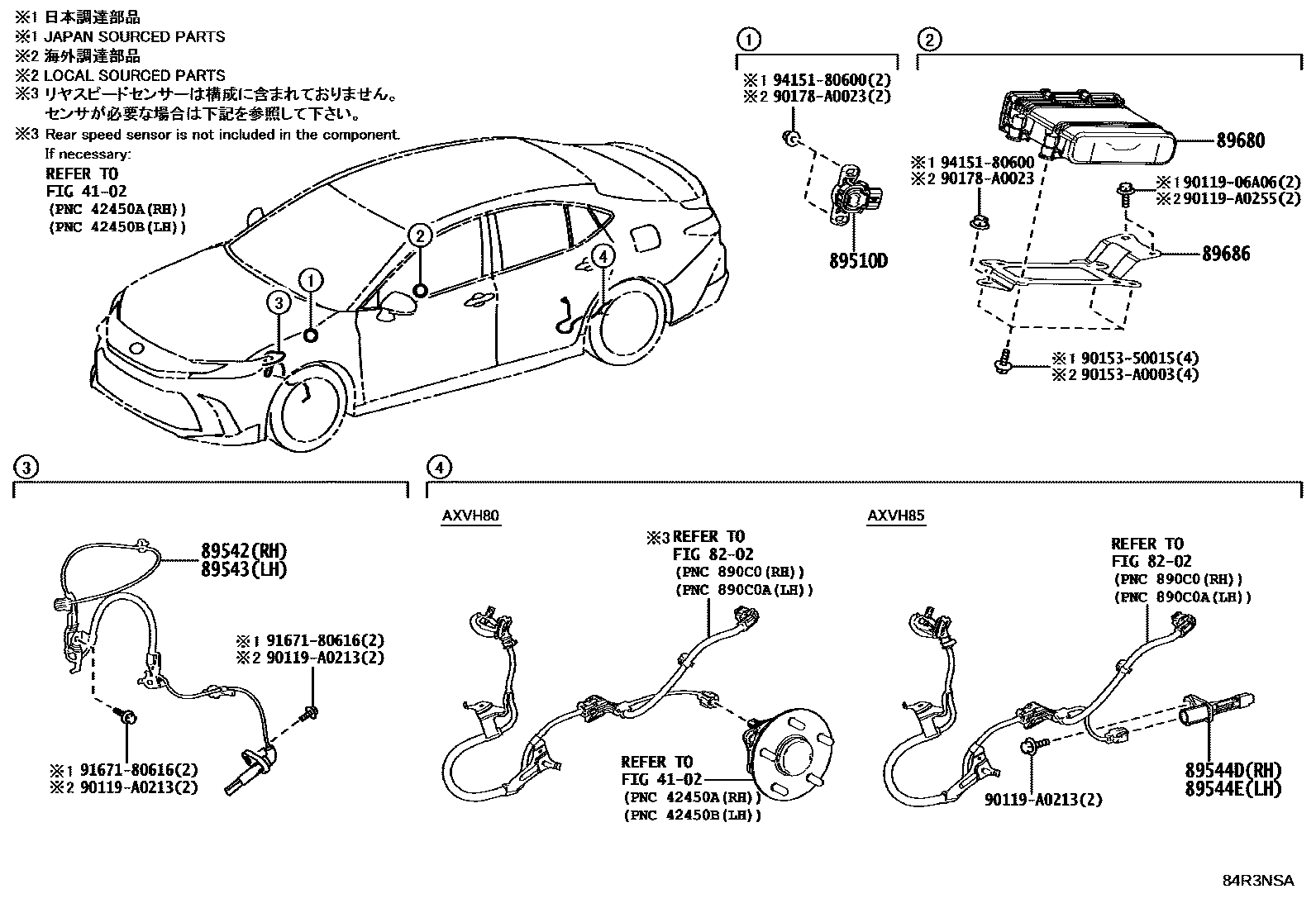

ABS & VSC

4102REAR AXLE SHAFT & HUB

→ Go to FIG 41-02

8202WIRING & CLAMP

→ Go to FIG 82-02

89510DSENSOR ASSY, BRAKE PEDAL STROKE

main89510-42010iAXVH8#202404

89542SENSOR, SPEED, FRONT RH

main89542-AQ010iAXVH8#202404

89543SENSOR, SPEED, FRONT LH

main89543-AQ010iAXVH8#202404

89544DSENSOR, SKID CONTROL, REAR RH

main89544-06130iAXVH85202404

89544ESENSOR, SKID CONTROL, REAR LH

main89544-06130iAXVH85202404

89680SUPPLY ASSY, BRAKE CONTROL POWER

main89680-48030iAXVH8#202404

89686BRACKET, BRAKE CONTROL POWER SUPPLY, NO.1

main89686-06040iAXVH8#202404

9011906A06

main90119-06A06

90119A0213

main90119-A0213

90119A0255

main90119-A0255

9015350015

main90153-50015

90153A0003

main90153-A0003

90178A0023

main90178-A0023

9167180616

main91671-80616

9415180600

main94151-80600

17 parts on this diagram · 1 diagram in section
