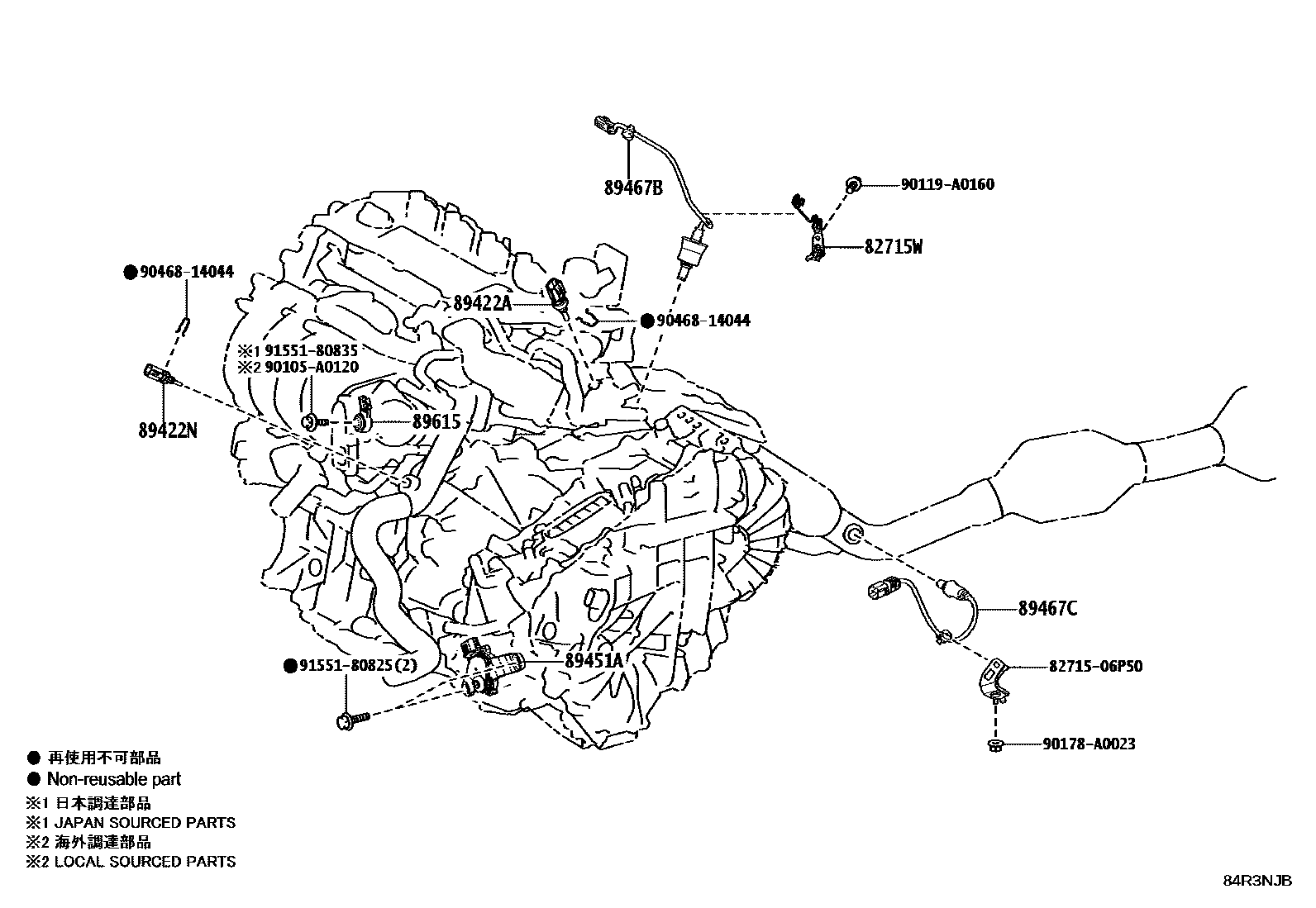

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE ROOM 0003 1COWL 0004 1INSTRUMENT PANEL 0005 1STEERING 0006 1SEAT 0007 1FLOOR & LUGGAGE

82715WBRACKET, WIRING HARNESS CLAMP

main82715-33K11iAXVH8#202404

89422ASENSOR, WATER TEMPERATURE

main89422-33040iAXVH8#202404

89422NSENSOR, WATER TEMPERATURE, NO.2

main89422-33040iAXVH8#202404

89451ASENSOR, SHIFT LEVER POSITION

main89451-28020iAXVH8#202404

89467BSENSOR, AIR FUEL RATIO

main89467-06320iAXVH8#202404

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-06310iAXVH8#202404

89615SENSOR, KNOCK CONTROL

main89615-06010iAXVH8#202404

(L),DENSO

main89615-20090iAXVH8#202404

(J),DENSO

main89615-78010iAXVH8#202404

(J),NGK

main89615-F6010iAXVH8#202404

(L),NGK

8271506P50BRACKET,WIRING HARNESS CLAMP

main82715-06P50

90105A0120

main90105-A0120

90119A0160

main90119-A0160

90178A0023

main90178-A0023

9046814044

main90468-14044

9155180825

main91551-80825

9155180835

main91551-80835

14 parts on this diagram · 7 diagrams in section
