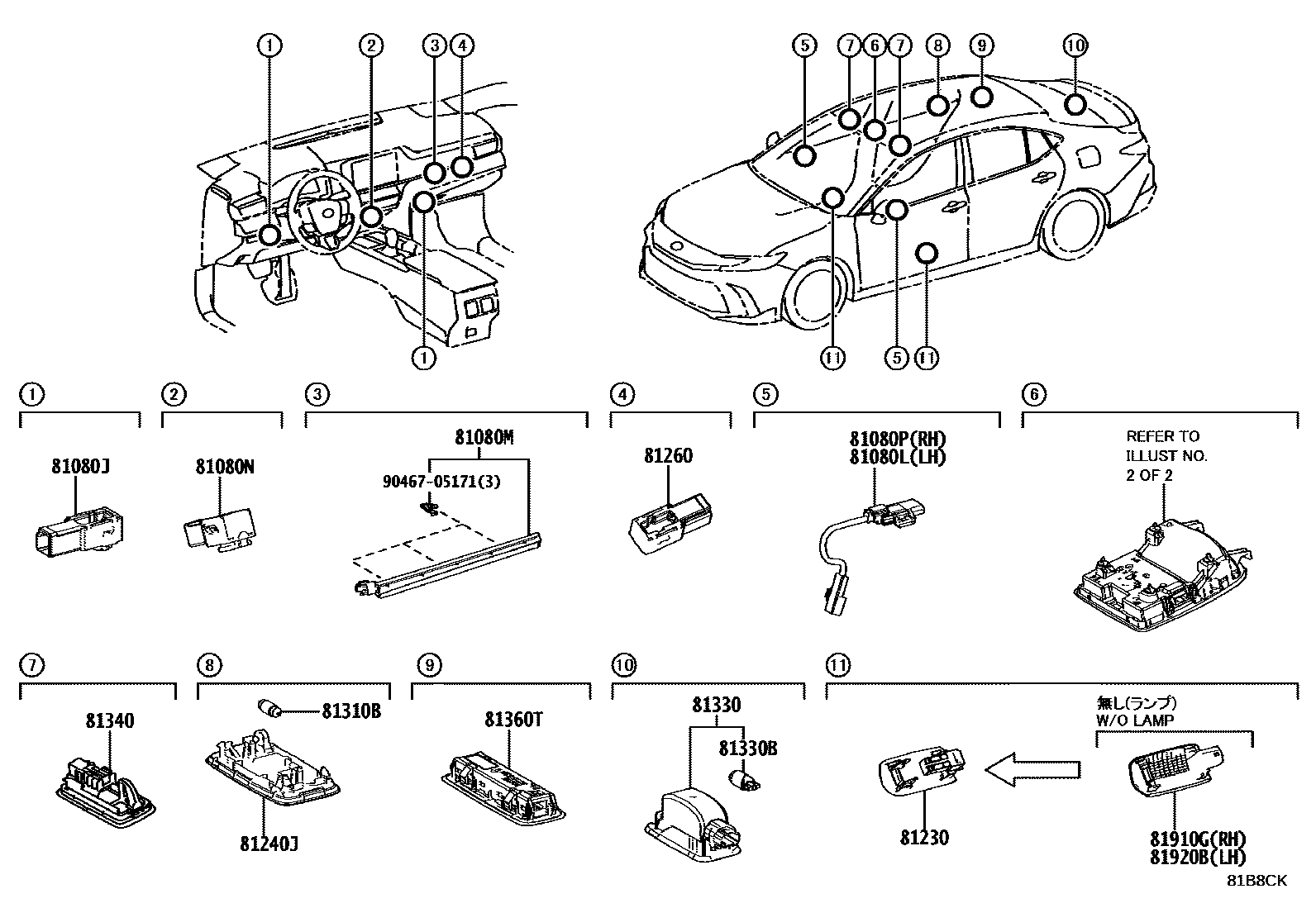

INTERIOR LAMP
81080JLAMP ASSY, INTERIOR ILLUMINATION, NO.1
81080LLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH
81080MLAMP ASSY, INTERIOR ILLUMINATION, NO.1
81080NLAMP ASSY, INTERIOR ILLUMINATION, NO.1
81080PLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH
81230LAMP ASSY, COURTESY
81240JLAMP ASSY, ROOM
LT.GRAY,TRIM1#,2#
BLACK,TRIM1#,2#
81260LAMP ASSY, GLOVE BOX
81310BBULB, REAR ROOM LAMP
12V 8W
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330BBULB, LUGGAGE COMPARTMENT LAMP
12V 5W
81340LAMP ASSY, VANITY
81360TLAMP ASSY, SPOT
LT.GRAY,TRIM1#,2#,TYPE A; MOON ROOF-WITH,LT.GRAY,TRIM1#,2#,TYPE A
BLACK,TRIM2#,3#,TYPE A; MOON ROOF-WITH,BLACK,TRIM1#,2#,TYPE A
LT.GRAY,TRIM1#,2#,TYPE B; MOON ROOF-WITH,LT.GRAY,TRIM1#,2#,TYPE B
BLACK,TRIM2#,3#,TYPE B; MOON ROOF-WITH,BLACK,TRIM1#,2#,TYPE B
81910GLENS, REFLEX REFLECTOR, FRONT RH
81920BLENS, REFLEX REFLECTOR, FRONT LH
9046705171
main90467-05171
16 parts on this diagram · 2 diagrams in section
