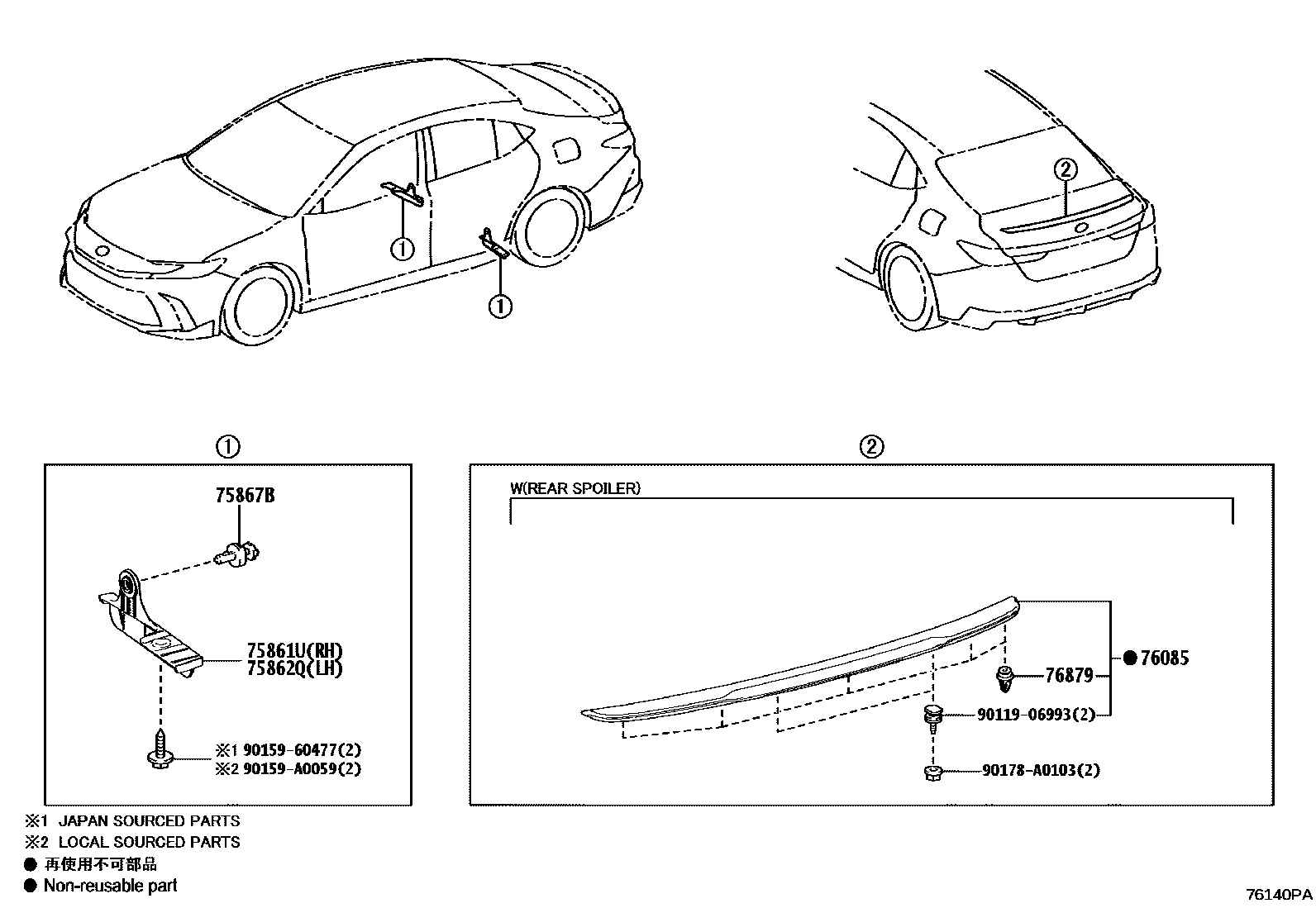

MUDGUARD & SPOILER

75861UCOVER, ROCKER PANEL MOULDING END, FRONT RH

main75861-06110iAXVH8#202404

75862QCOVER, ROCKER PANEL MOULDING END, FRONT LH

main75862-06120iAXVH8#202404

75867BCLIP, ROCKER PANEL MOULDING

main90467-07220×2iAXVH8#202404

76085SPOILER SUB-ASSY, REAR

main76085-AQ900iAXVH8#..G,N202404

PAINT REQ.

76879CLIP, REAR SPOILER, NO.1

main90467-A0048×5iAXVH8#..G,N202404

REAR SPOILER-WITH(LUGGAGE)

9011906993

main90119-06993

9015960477

main90159-60477

90159A0059

main90159-A0059

90178A0103

main90178-A0103

9 parts on this diagram · 1 diagram in section
