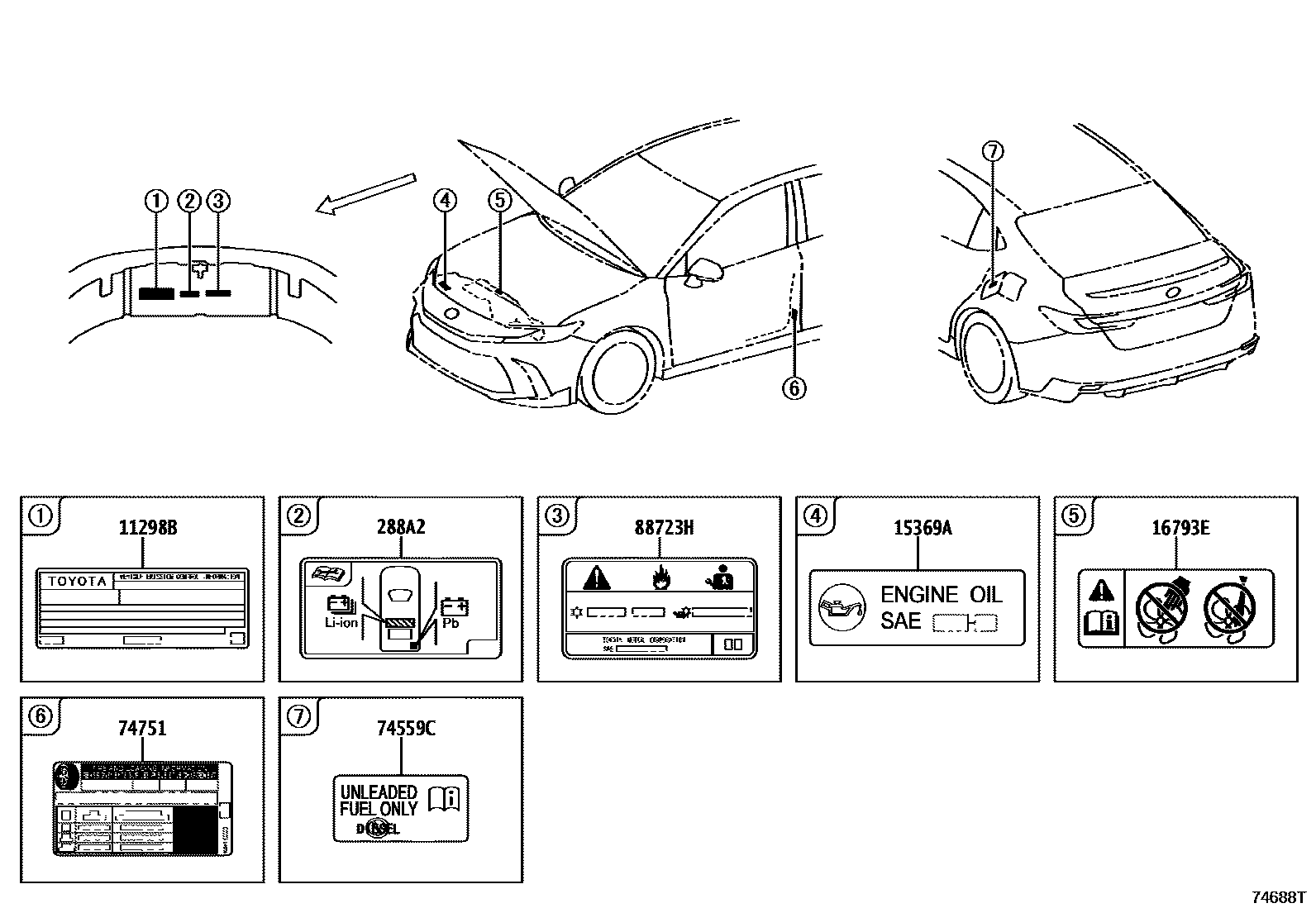

CAUTION PLATE (EXTERIOR & INTERIOR)

0001 1ENGINE ROOM & EXTERIOR 0002 1INTERIOR

11298BLABEL, EMISSION CONTROL INFORMATION

main11298-F0410iA25..AXVH8#202404

15369ALABEL, ENGINE OIL INFORMATION

main15369-F0020iA25..AXVH8#; A25..AXVH80..G,N,P202404

MEXICO SPEC

16793ELABEL, COOLING FAN CAUTION

main16793-0P040iA25..AXVH8#202404

(L)

main16793-36030iA25..AXVH8#202404

(J)

288A2LABEL, BATTERY LOCATION

main288A2-F2030iA25..AXVH8#202404

74559CLABEL, FUEL INFORMATION, NO.2

main74559-0D060iAXVH80..G,N,P202404

MEXICO SPEC,(L)

main74559-20140iAXVH80..G,N,P202404

MEXICO SPEC,(J)

74751LABEL, TIRE PRESSURE INFORMATION

main42661-06B20iAXVH8#..G,P,S; AXVH85..N202404

TIRE&DISK WHEEL-205/65R16 6.5J IS40 ALUMINUM ALL SEASON

main42661-06B50supersedes 42661-06B40iAXVH8#..G,S; AXVH8#..P202404

TIRE&DISK WHEEL-235/40R19 8.5J IS45AS ILA

main42661-06B40iAXVH8#..G,S; AXVH8#..N202404

TIRE&DISK WHEEL-235/45R18 8J IS50 ALUMINUM ALL SEASON

main42661-06B70iAXVH80..G,N; AXVH80..P202404

MEXICO SPEC&TIRE&DISK WHEEL-235/45R18 8J IS50 ALUMINUM SUMMER

main42661-AQ010supersedes 42661-AQ020iAXVH80..N202404

MEXICO SPEC&TIRE&DISK WHEEL-205/65R16 6.5J IS40 ALUMINUM SUMMER

88723HLABEL, COOLER SERVICE CAUTION

main88723-06230iAXVH8#202404

7 parts on this diagram · 2 diagrams in section
