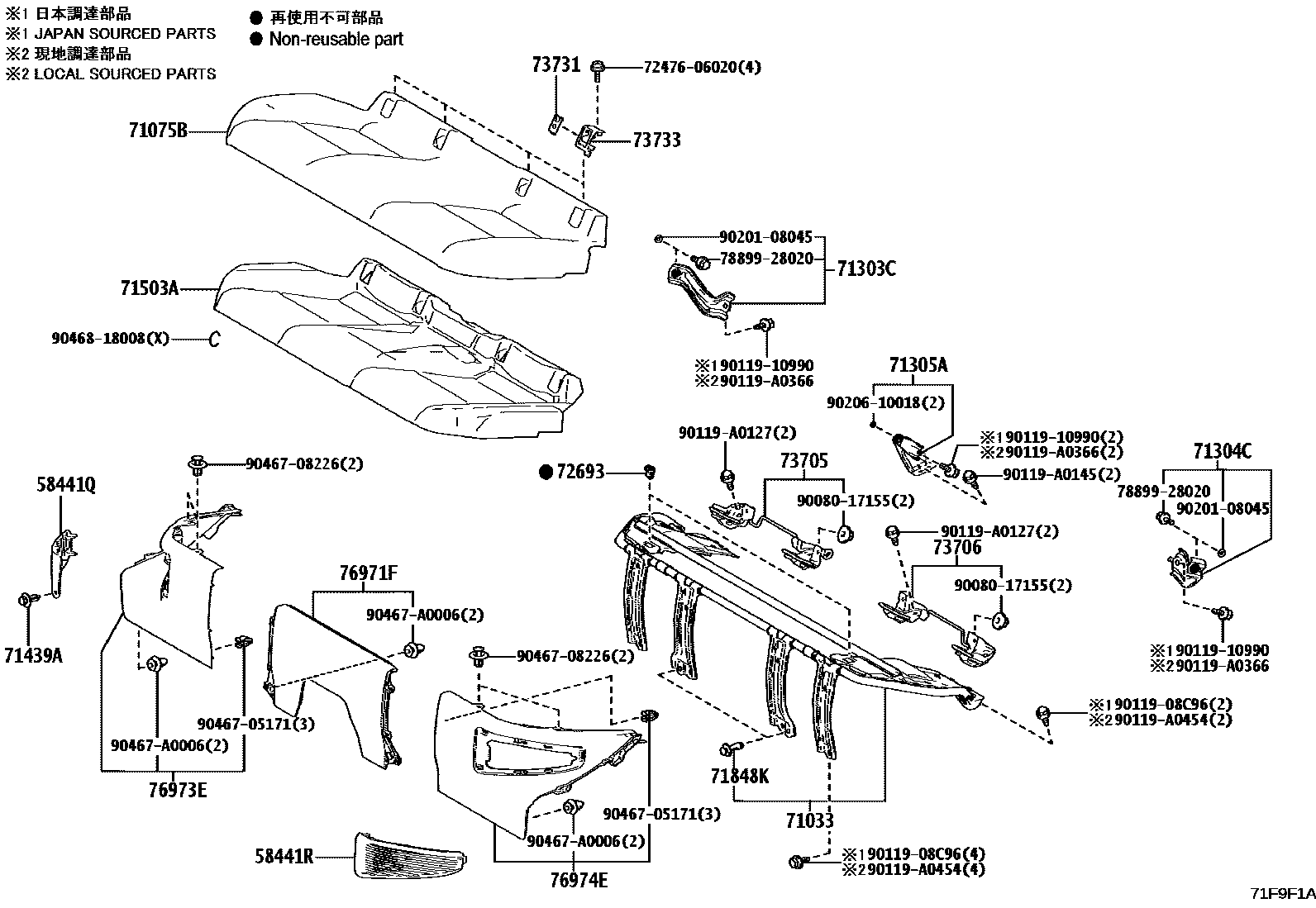

REAR SEAT & SEAT TRACK

0001 1SEAT CUSHION 0002 1SEAT BACK 0003 1SEAT BACK(HEADREST SPLIT TYPE

58441QCOVER, BATTERY SERVICE HOLE, RH

main58441-AQ010-C0iAXVH8#..G,N,S; AXVH8#..P202404

BLACK,TRIM1#,2#; BLACK,TRIM2#,3#

58441RCOVER, BATTERY SERVICE HOLE, LH

main58441-AQ020-C0iAXVH8#..G,N,S; AXVH8#..P202404

BLACK,TRIM1#,2#; BLACK,TRIM2#,3#

71033LEG SUB-ASSY, REAR SEAT CUSHION

main71033-AQ010iAXVH8#202404

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71075-AQ030-B1iAXVH8#..N202404

MD GRAY,TRIM1#

main71075-AQ030-C1iAXVH8#..N202404

BLACK,TRIM2#

main71075-AQ040-B1iAXVH8#..G202404

LT GRAY/GREEN,TRIM1#

main71075-AQ040-C1iAXVH8#..G202404

BLACK/BROWN,TRIM2#

main71075-AQ050-B1iAXVH8#..S202404

GRAY/WHITE,TRIM1#

main71075-AQ050-C1iAXVH8#..S202404

BLACK/WHITE,TRIM2#

main71075-AQ060-C3iAXVH8#..P202404

BLACK/BLUE BACKING,TRIM2#

main71075-AQ060-D2iAXVH8#..P202404

SENSUAL RED,TRIM3#

71303CHINGE SUB-ASSY, REAR SEATBACK, RH

main71303-06030iAXVH8#202404

71304CHINGE SUB-ASSY, REAR SEATBACK, LH

main71304-06020iAXVH8#202404

71305AHINGE SUB-ASSY, REAR SEATBACK, CENTER

main71305-06070iAXVH8#202404

71439ACLIP

main90467-06165-C3iAXVH8#202404

BLACK

71503APAD SUB-ASSY, REAR SEAT CUSHION

main71503-AQ020iAXVH8#202404

71848KCAP, SEAT ADJUSTER COVER

main71848-47050×2iAXVH8#202404

72693HOOK, REAR SEAT CUSHION LOCK

main72693-06030×2iAXVH8#202404

73705BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH

main73705-06120iAXVH8#202404

73706BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH

main73706-06120iAXVH8#202404

73731COVER, CHILD RESTRAINT SEAT

main73731-06060-B4×4iAXVH8#..G202404

LT.GRAY,TRIM1#

main73731-06060-C0×4iAXVH8#..G; AXVH8#..N,S; AXVH8#..P202404

BLACK,TRIM1#,2#; BLACK,TRIM2#; BLACK,TRIM2#,3#

73733COVER, CHILD RESTRAINT SEAT BASE

main73733-AQ010-B0×4iAXVH8#..G202404

LT.GRAY,TRIM1#

main73733-AQ010-C0×4iAXVH8#..G; AXVH8#..N,S; AXVH8#..P202404

BLACK,TRIM1#,2#; BLACK,TRIM2#; BLACK,TRIM2#,3#

76971FCOVER, REAR UNDER

main76971-06010-C0iAXVH8#..G,N,S; AXVH8#..P202404

BLACK,TRIM1#,2#; BLACK,TRIM2#,3#

76973ECOVER, REAR UNDER SIDE, RH

main76973-AQ010-C0iAXVH8#..G,N,S; AXVH8#..P202404

BLACK,TRIM1#,2#; BLACK,TRIM2#,3#

76974ECOVER, REAR UNDER SIDE, LH

main76974-AQ010-C0iAXVH8#..G,N,S; AXVH8#..P202404

BLACK,TRIM1#,2#; BLACK,TRIM2#,3#

7247606020SCREW, HORIZONTAL JACK, INNER

main72476-06020

7889928020BOLT, FRONT SEAT

main78899-28020

9008017155

main90080-17155

9011908C96

main90119-08C96

9011910990

main90119-10990

90119A0127

main90119-A0127

90119A0145

main90119-A0145

90119A0366

main90119-A0366

90119A0454

main90119-A0454

9020108045

main90201-08045

9020610018

main90206-10018

9046705171

main90467-05171

9046708226

main90467-08226

90467A0006

main90467-A0006

9046818008

main90468-18008

33 parts on this diagram · 3 diagrams in section
