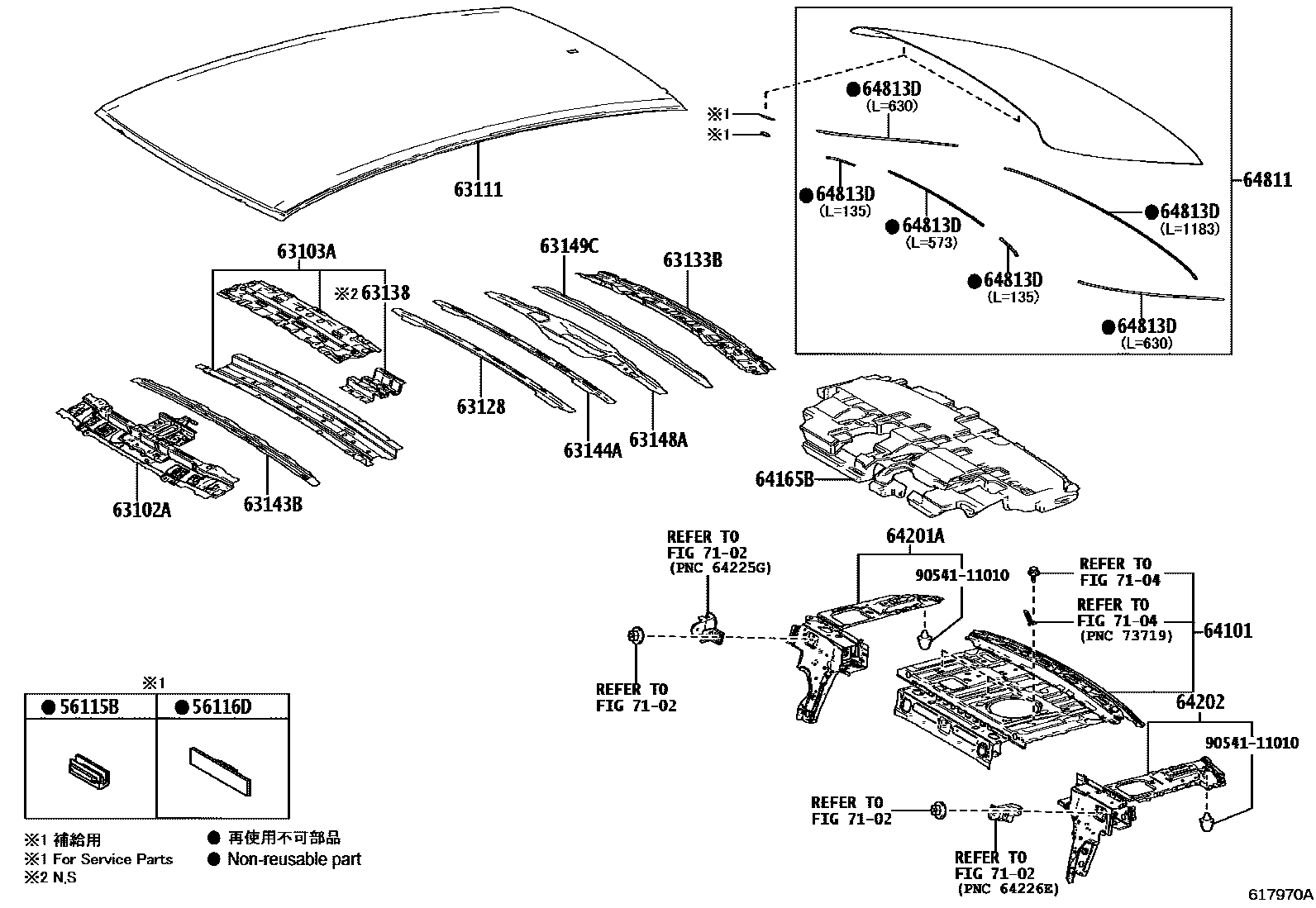

ROOF PANEL & BACK WINDOW GLASS

0001 1ROOF PANEL(NORMAL ROOF) 0002 1ROOF PANEL(MOON ROOF) 0003 1ROOF PANEL(PANORAMA ROOF) 0004 1SLIDING ROOF PANEL(MOON ROOF)0005 1SLIDING ROOF PANEL(PANORAMA R

56115BSTOPPER, BACK WINDOW GLASS, NO.1

main56115-30120iAXVH8#202404

56116DSTOPPER, BACK WINDOW GLASS, NO.2

main56116-22050iAXVH8#202404

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-06916iAXVH8#202404

main63102-06917iAXVH8#..N,S202404

MOON ROOF-WITH

main63102-06918iAXVH80..G202404

SAIPAN SPEC&MOON ROOF-WITH(PANORAMA ROOF)

63103AREINFORCEMENT SUB-ASSY, ROOF PANEL

main63103-AQ010iAXVH8#..N,S202404

main63103-AQ020iAXVH8#..G,P202404

63111PANEL, ROOF

main63111-06600iAXVH8#202404

main63111-06610iAXVH8#..N,S202404

MOON ROOF-WITH

main63111-06650iAXVH80..G202404

USA POSSESSIONS SPEC

main63111-06660iAXVH80..N202404

MEXICO SPEC&MOON ROOF-WITH

63128REINFORCEMENT, ROOF PANEL, NO.6

main63128-06010iAXVH8#202404

63133BFRAME, BACK WINDOW

main63133-06160iAXVH8#202404

63138BRACKET, DOME LAMP, NO.2

main63138-AQ010iAXVH8#..N,S202404

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-06120iAXVH8#202404

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-06230iAXVH8#202404

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63148-06130iAXVH8#202404

63149CREINFORCEMENT, ROOF PANEL SIDE, LH

main63149-06080iAXVH8#202404

64101PANEL SUB-ASSY, UPPER BACK

main64101-06430iAXVH8#202404

64165BCOVER, UPPER BACK PANEL HOLE, NO.1

main64165-06290iAXVH8#202404

main64165-06360iAXVH8#..G,P202404

AUDIO-12.3INCH PREMIUM 9SPEAKER

64201AEXTENSION SUB-ASSY, PACKAGE TRAY, RH

main64201-06230iAXVH8#202404

64202EXTENSION SUB-ASSY, PACKAGE TRAY, LH

main64202-06230iAXVH8#202404

64811GLASS, BACK WINDOW

main64801-06221iAXVH8#202404

64813DDAM, BACK WINDOW GLASS ADHESIVE

main64813-06180iAXVH8#202404

L=1183

main64813-06220×2iAXVH8#202404

L=630

main64813-06230iAXVH8#202404

L=573

main64813-06440×2iAXVH8#202404

L=135

7102

7104

9054111010

main90541-11010

21 parts on this diagram · 5 diagrams in section
