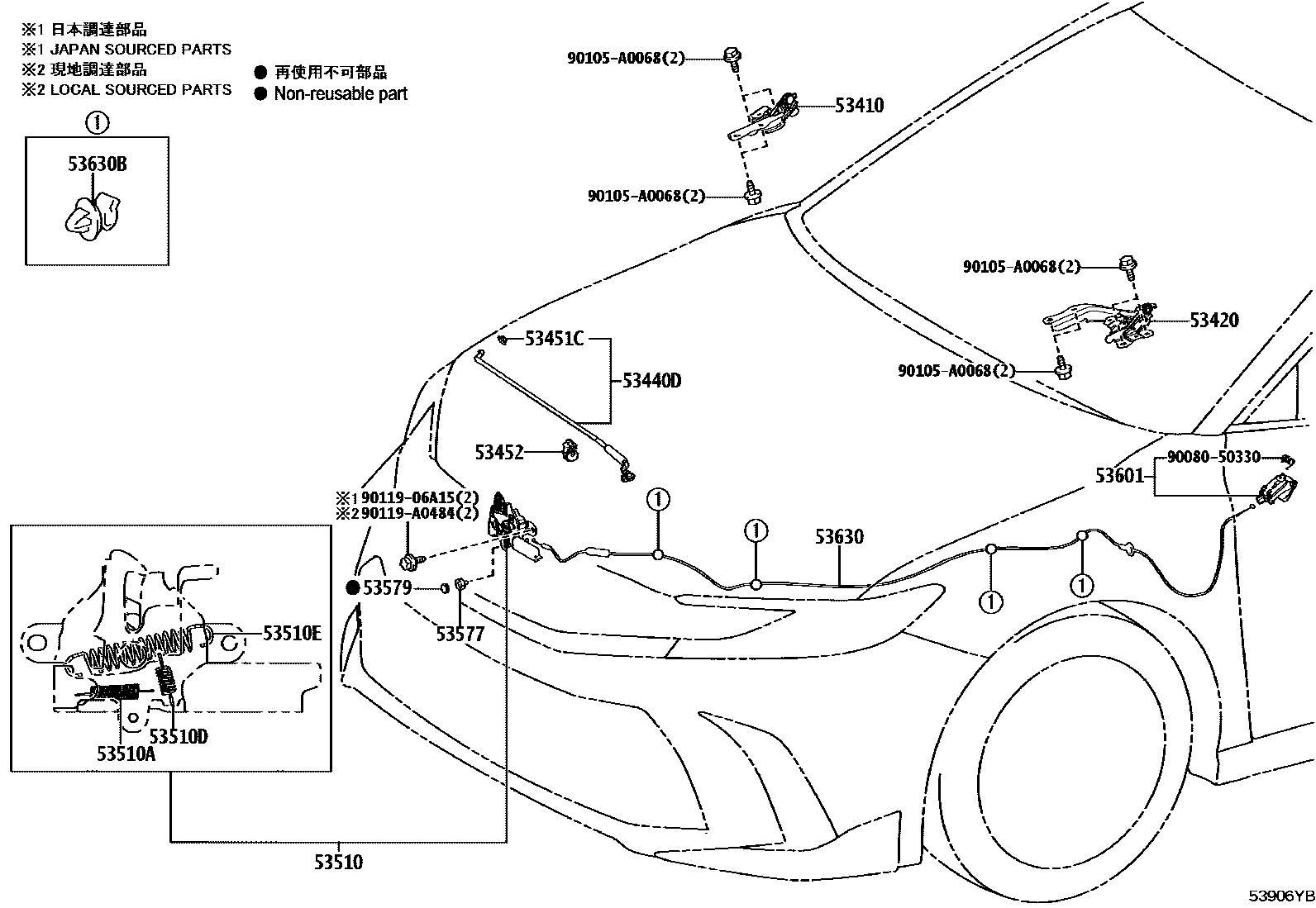

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-AQ020iAXVH8#202404

53420HINGE ASSY, HOOD, LH

main53420-AQ020iAXVH8#202404

53440DSUPPORT ASSY, HOOD

main53440-06230iAXVH8#202404

53451CCLIP, HOOD SUPPORT ROD

main53454-12040iAXVH8#202404

53452HOLDER, HOOD STAY

main53452-AQ010iAXVH8#202404

53510LOCK ASSY, HOOD

main53510-06330iAXVH8#202404

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09055iAXVH8#202404

WD=0.9,CW=21

53510DSPRING, TENSION(FOR HOOD LOCK)

main90506-12063iAXVH8#202404

WD=1.2,CW=8.5

53510ESPRING, TENSION(FOR HOOD LOCK)

main90506-18067iAXVH8#202404

WD=1.8,CW=13

53577BOLT, HOOD LOCK

main53577-0E010iAXVH8#202404

53579CAP, HOOD LOCK NUT

main53579-0E010iAXVH8#202404

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-02040-C0iAXVH8#..G,N,S; AXVH8#..P202404

BLACK,TRIM1#,2#; BLACK,TRIM2#,3#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-06231iAXVH8#202404

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90469-06005×4iAXVH8#202404

9008050330

main90080-50330

90105A0068

main90105-A0068

9011906A15

main90119-06A15

90119A0484

main90119-A0484

18 parts on this diagram · 1 diagram in section
