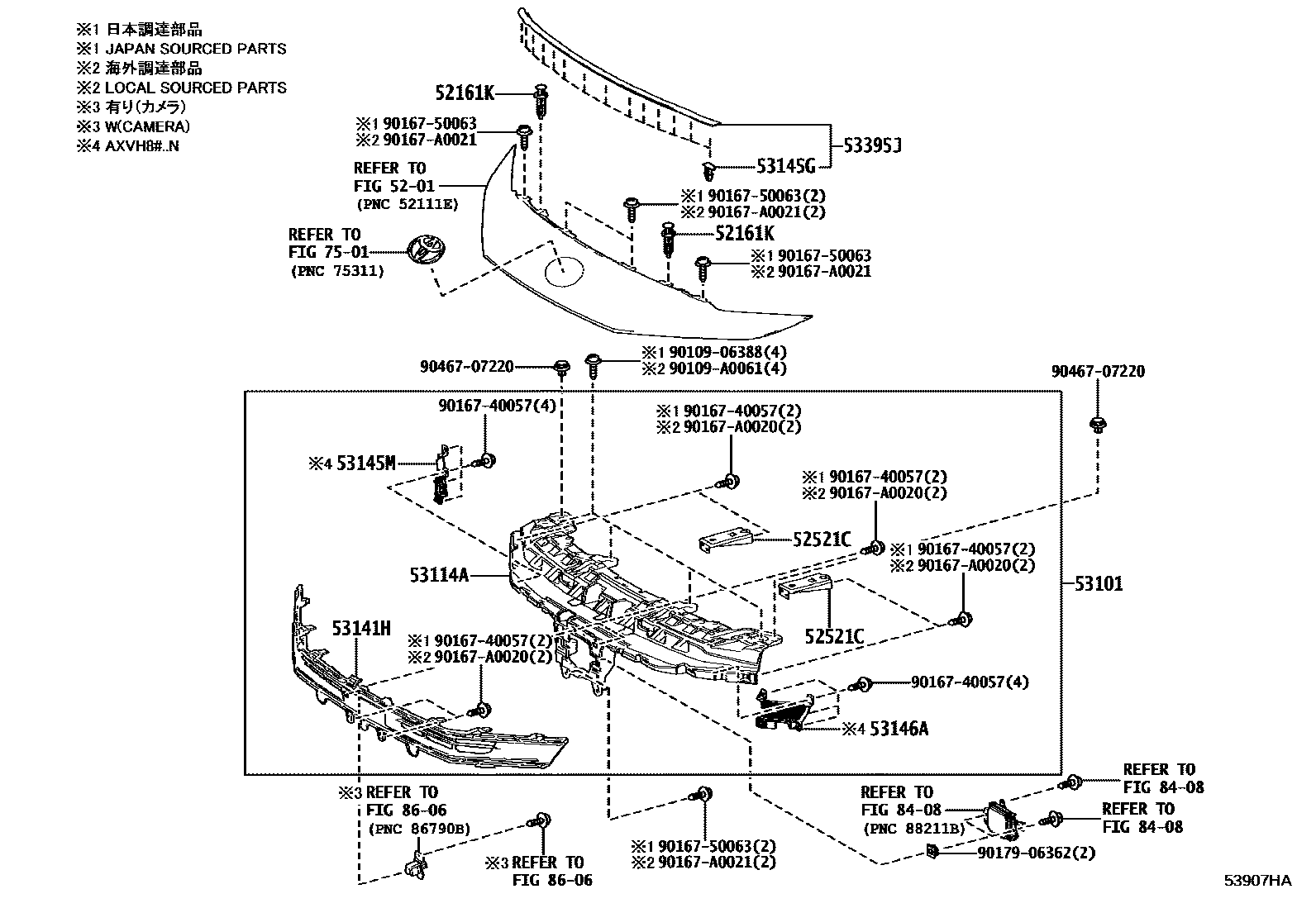

RADIATOR GRILLE

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

52161KPIECE, FRONT BUMPER

main52161-02020×2i202404

52521CRETAINER, FRONT BUMPER, UPPER

main52521-AQ010×2i202404

53101GRILLE SUB-ASSY, RADIATOR

main53101-AQ010supersedes 53101-AQ041i202404

NO PAINT REQ.; NO PAINT REQ.,MEXICO SPEC

main53101-AQ020i202404

NO PAINT REQ.

main53101-AQ030i202404

NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*551 & *HEA & *BSM & *PVM & *MEM; NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-MANUAL RETRACTABLE & *HEA & *BSM & *PVM

53114AGRILLE, RADIATOR, INNER

main53114-AQ010i202404

53141HGARNISH, RADIATOR GRILLE

main53141-AQ010supersedes 53141-AQ040i202404

main53141-AQ020i202404

main53141-AQ030i202404

OUTSIDE REAR VIEW MIRROR-*551 & *HEA & *BSM & *PVM & *MEM; OUTSIDE REAR VIEW MIRROR-MANUAL RETRACTABLE & *HEA & *BSM & *PVM

53145GCLIP, RADIATOR GRILLE

main53145-02010×14i202404

53145MBRACKET, RADIATOR GRILLE, GARNISH, NO.1

main53145-AQ010i202404-202406

53146ABRACKET, RADIATOR GRILLE, GARNISH, NO.2

main53146-AQ010i202404-202406

53395JSEAL, HOOD TO FRONT END PANEL

main53395-AQ010i202404

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

8408CRUISE CONTROL (AUTO DRIVE)

→ Go to FIG 84-08

8606CAMERA & REAR MONITOR DISPLAY

→ Go to FIG 86-06

9010906388

main90109-06388

90109A0061

main90109-A0061

9016740057

main90167-40057

9016750063

main90167-50063

90167A0020

main90167-A0020

90167A0021

main90167-A0021

9017906362

main90179-06362

9046707220

main90467-07220

21 parts on this diagram · 1 diagram in section
