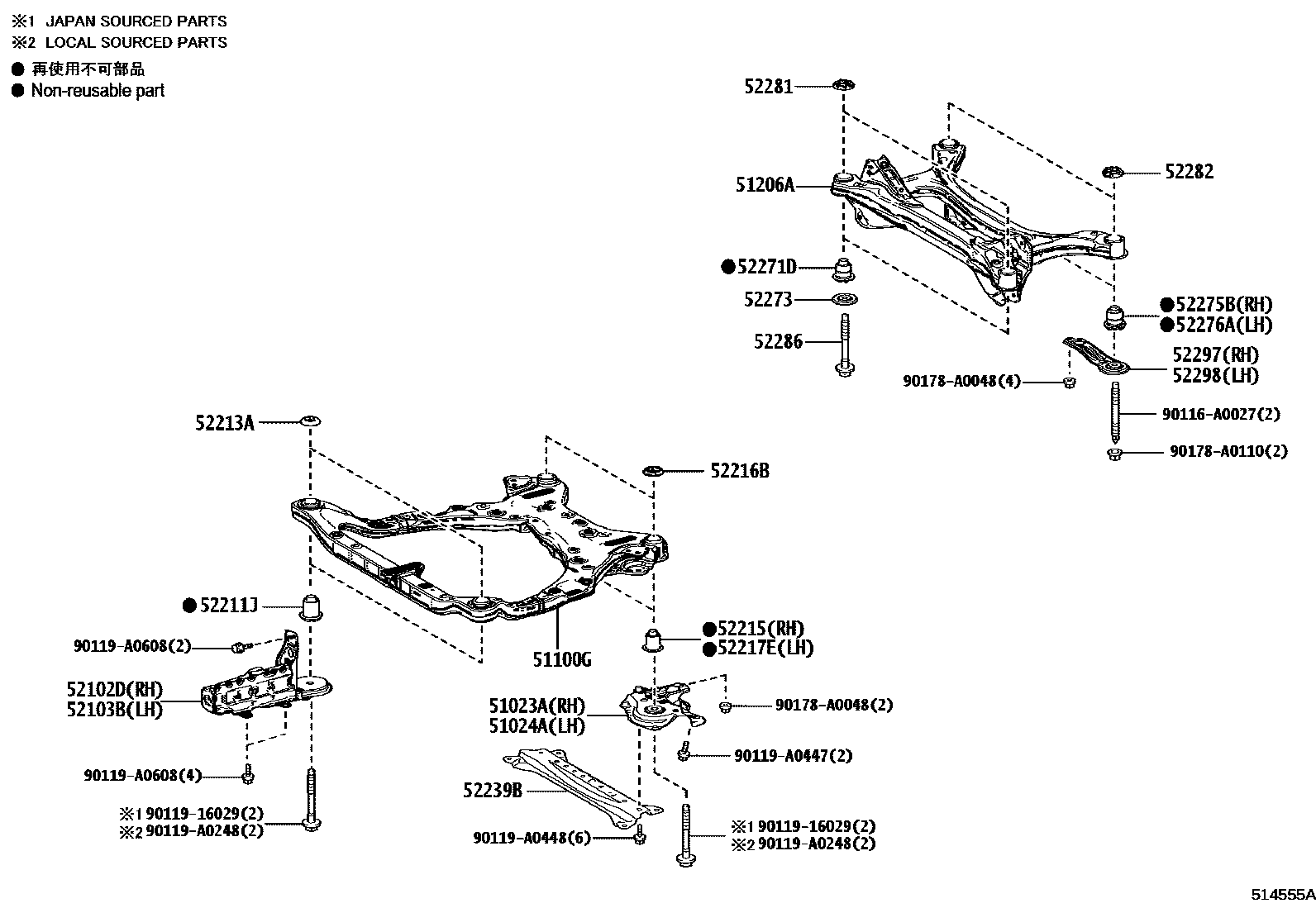

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1SUSPENSION CROSSMEMBER 0002 1SUSPENSION CROSSMEMBER 0003 1UNDER COVER 0004 1UNDER COVER

51023ABRACKET SUB-ASSY, FRONT SUSPENSION MEMBER, RH

main51023-06050iAXVH8#202404

51024ABRACKET SUB-ASSY, FRONT SUSPENSION MEMBER, LH

main51024-06050iAXVH8#202404

51100GFRAME ASSY, FRONT

main51100-06290iAXVH8#202404

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-06130iAXVH80202404

main51206-06190iAXVH85202404

52102DEXTENSION SUB-ASSY, FRONT BUMPER, RH

main52102-06010iAXVH8#202404

52103BEXTENSION SUB-ASSY, FRONT BUMPER, LH

main52103-06010iAXVH8#202404

52211JCUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52211-06170×2iAXVH8#202404

52213ASTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52213-06170×2iAXVH8#202404

52215CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52215-06170iAXVH8#202404

52216BSTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52216-06150×2iAXVH8#202404

52217ECUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR LH

main52217-06150iAXVH8#202404

52239BPLATE, BODY MOUNTING

main52239-06030iAXVH8#202404

52271DCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT

main52271-06130×2iAXVH8#..G,N; AXVH80..P202404

MEXICO SPEC

main52271-06170×2iAXVH8#..P,S202404

52273STOPPER, REAR SUSPENSION MEMBER, LOWER

main52273-06050×2iAXVH8#202404

52275BCUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR RH

main52275-06150iAXVH8#..G,N; AXVH80..P202404

MEXICO SPEC

main52275-06190iAXVH8#..P,S202404

52276ACUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR LH

main52276-06010iAXVH8#..G,N; AXVH80..P202404

MEXICO SPEC

main52276-06050iAXVH8#..P,S202404

52281CUSHION, DIFFERENTIAL SUPPORT MEMBER

main52281-06040×2iAXVH8#202404

52282STOPPER, DIFFERENTIAL SUPPORT MEMBER, UPPER

main52282-06070×2iAXVH8#..G,N; AXVH80..P202404

MEXICO SPEC

main52282-06110×2iAXVH8#..P,S202404

52286BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.2

main90119-A0450×2iAXVH8#202404

52297BRACE, REAR SUSPENSION MEMBER, REAR LOWER RH

main52297-06010iAXVH80202404

main52297-06090iAXVH85202404

52298BRACE, REAR SUSPENSION MEMBER, REAR LOWER LH

main52298-06010iAXVH80202404

main52298-06090iAXVH85202404

90116A0027

main90116-A0027

9011916029

main90119-16029

90119A0248

main90119-A0248

90119A0447

main90119-A0447

90119A0448

main90119-A0448

90119A0608

main90119-A0608

90178A0048

main90178-A0048

90178A0110

main90178-A0110

29 parts on this diagram · 4 diagrams in section
