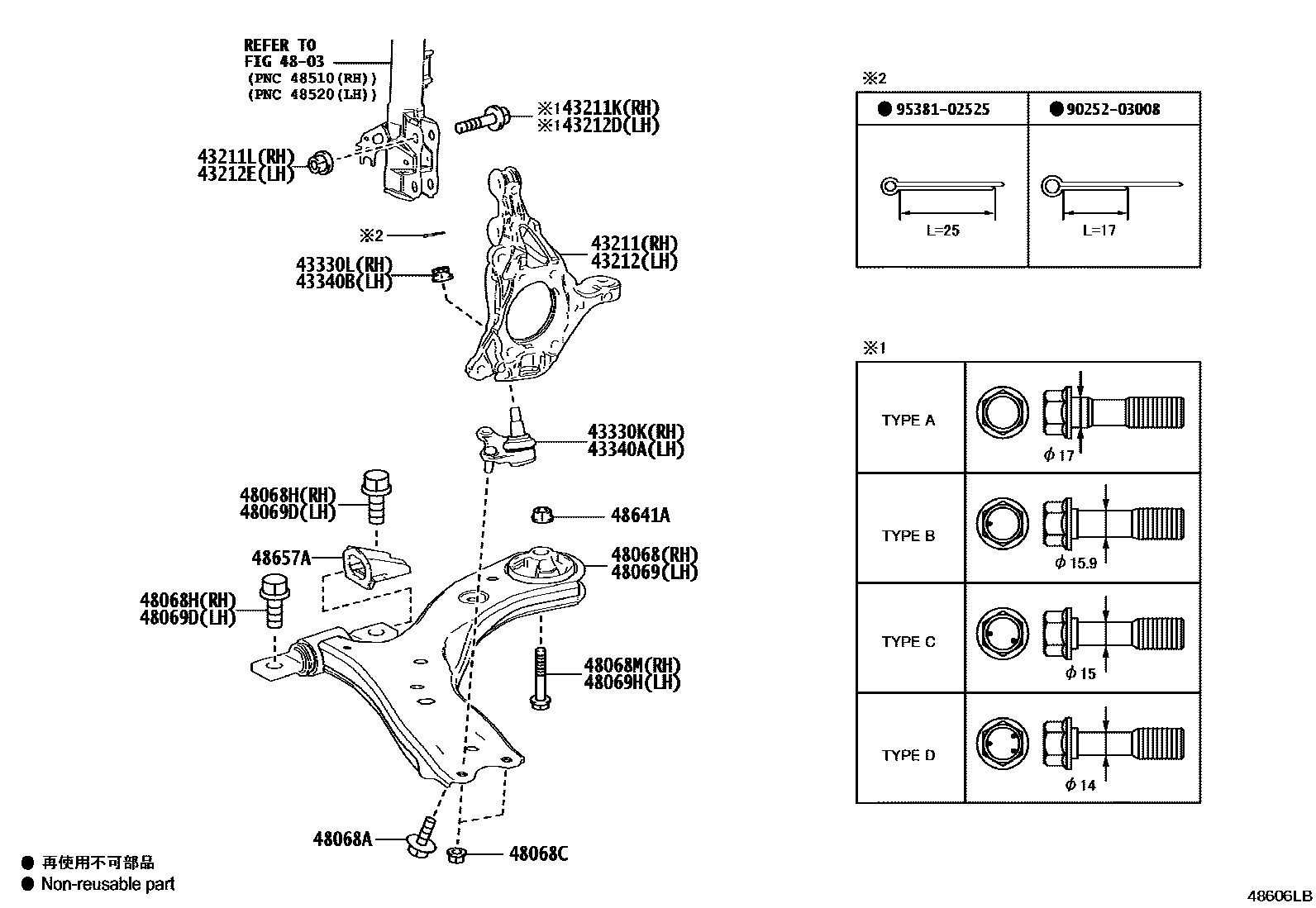

FRONT AXLE ARM & STEERING KNUCKLE
43211KNUCKLE, STEERING, RH
MEXICO SPEC&TIRE&DISK WHEEL-235/45R18 8J IS50 ALUMINUM SUMMER
43211KBOLT (FOR STEERING KNUCKLE RH)
OD=15.9,TYPE B:REFER ILLUST.
OD=15,TYPE C:REFER ILLUST.
OD=14,TYPE D:REFER ILLUST.
OD=17,(J),TYPE A:REF ILL.
OD=17,(L),TYPE A:REF ILL.
43211LNUT (FOR STEERING KNUCKLE RH)
(J)
(L)
43212KNUCKLE, STEERING, LH
MEXICO SPEC&TIRE&DISK WHEEL-235/45R18 8J IS50 ALUMINUM SUMMER
43212DBOLT (FOR STEERING KNUCKLE LH)
OD=15.9,TYPE B:REFER ILLUST.
OD=15,TYPE C:REFER ILLUST.
OD=14,TYPE D:REFER ILLUST.
OD=17,(J),TYPE A:REF ILL.
OD=17,(L),TYPE A:REF ILL.
43212ENUT (FOR STEERING KNUCKLE LH)
(J)
(L)
43330KJOINT ASSY, LOWER BALL, FRONT RH
43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)
(L)
(J)
43340AJOINT ASSY, LOWER BALL, FRONT LH
43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)
(L)
(J)
4803
48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068ABOLT(FOR FRONT SUSPENSION LOWER ARM)
(J)
(L)
48068CNUT(FOR FRONT SUSPENSION LOWER ARM)
48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
(J)
(L)
48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)
(J)
(L)
48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
(J)
(L)
48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)
(J)
(L)
48641ANUT(FOR SUSPENSION LOWER ARM SHAFT)
48657ASTOPPER, FRONT LOWER ARM BUSH
(L)
(J)
9025203008
main90252-03008
9538102525
main95381-02525
23 parts on this diagram · 1 diagram in section
