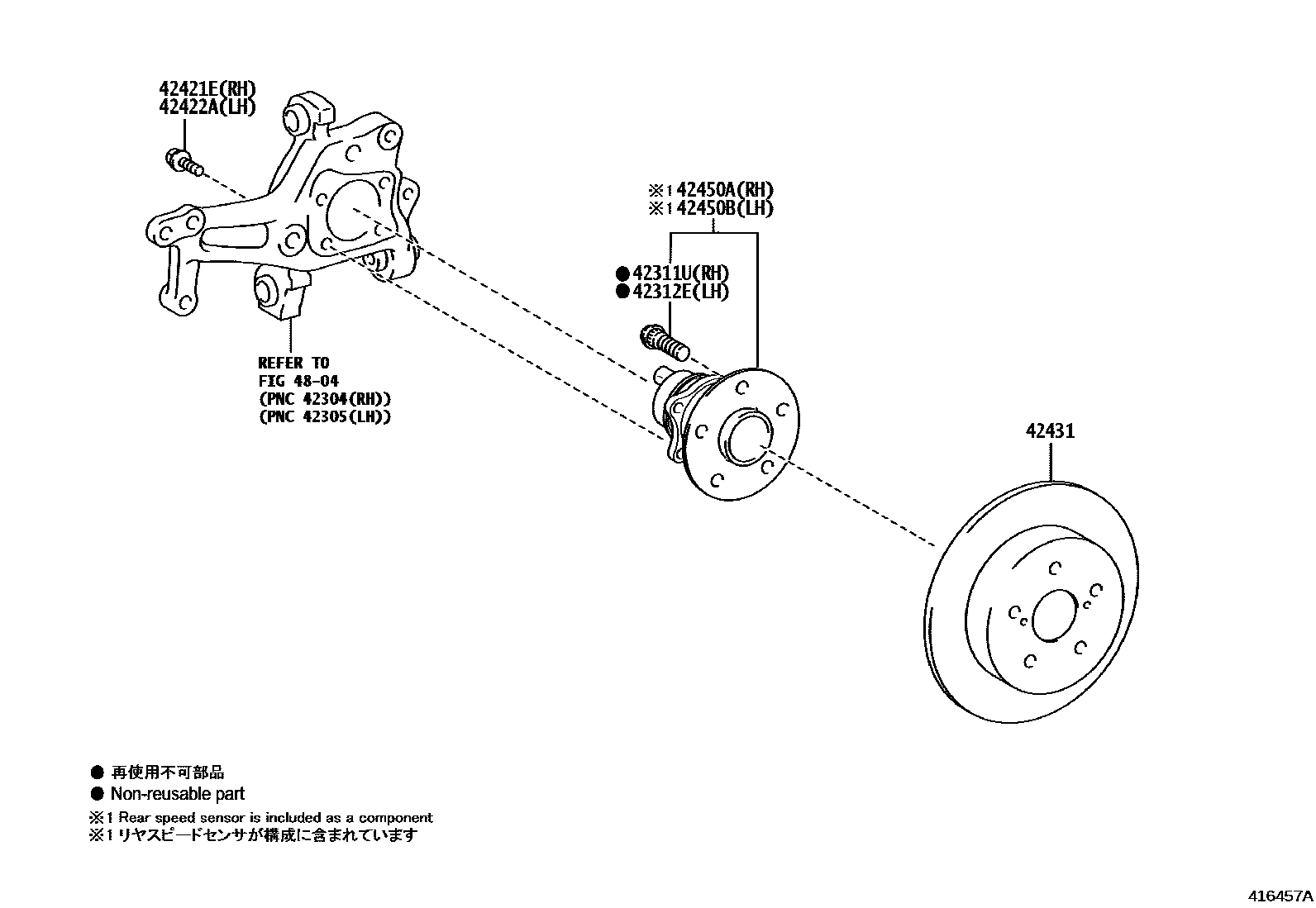

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02049×5iAXVH8#202404

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02049×5iAXVH8#202404

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-A0389×4iAXVH8#202404

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-A0389×4iAXVH8#202404

42431DISC, REAR

main42431-06180×2iAXVH8#202404

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42410-AQ010iAXVH85202404

main42450-AQ010iAXVH80202404

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42410-AQ010iAXVH85202404

main42450-AQ010iAXVH80202404

4804REAR SPRING & SHOCK ABSORBER

→ Go to FIG 48-04

8 parts on this diagram · 3 diagrams in section
