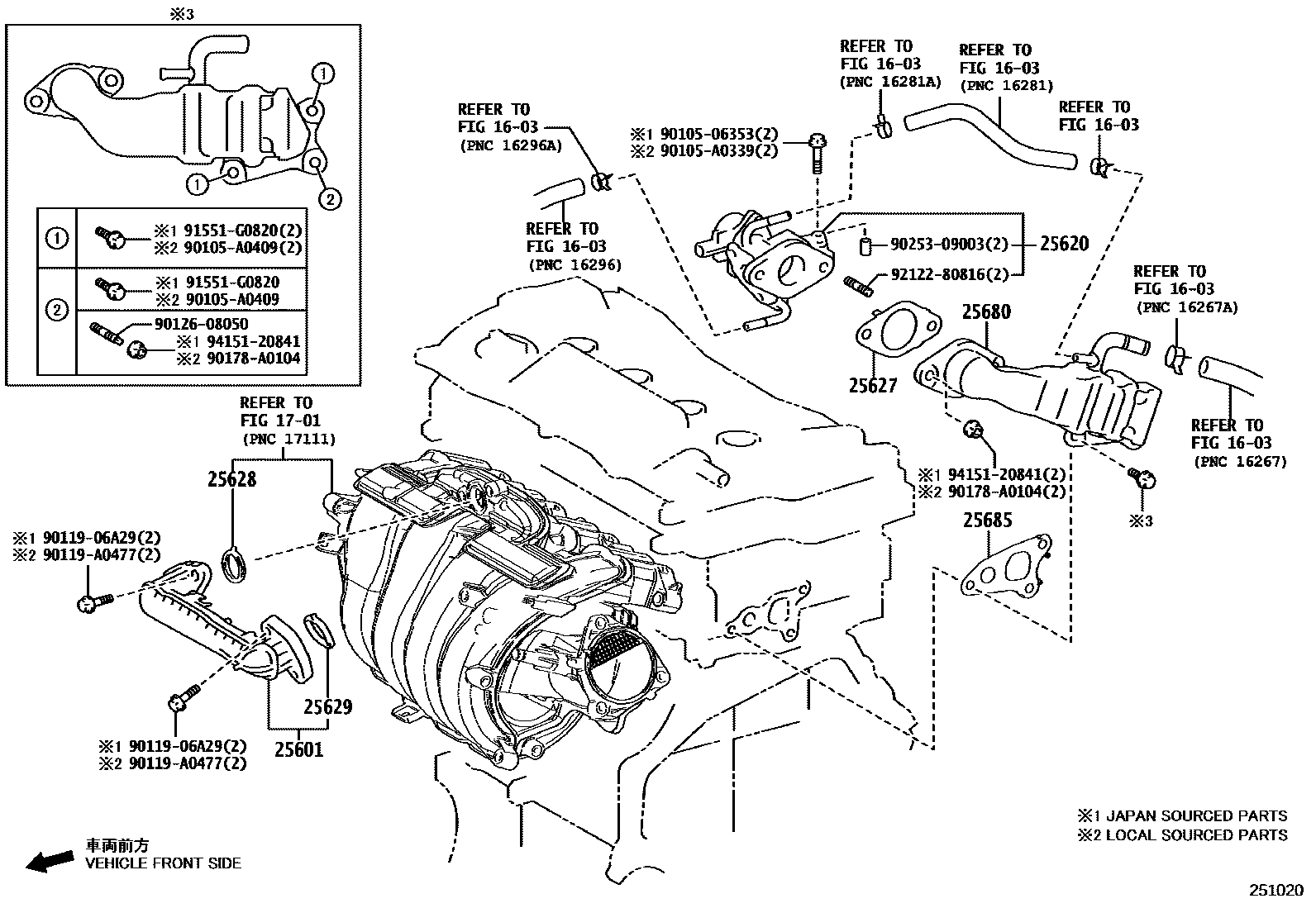

EXHAUST GAS RECIRCULATION SYSTEM

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

1701MANIFOLD

→ Go to FIG 17-01

25601PIPE SUB-ASSY, EGR, NO.1

main25601-25030iA25..AXVH8#202404

*636

main25601-F0020iA25..AXVH8#202404

*744 OR *745

25620VALVE ASSY, EGR

main25620-24050iA25..AXVH8#202404

*636

main25620-F2010iA25..AXVH8#202404

*744 OR *745

25627GASKET, EGR VALVE

main25627-24010iA25..AXVH8#202404

*636

main25627-F2010iA25..AXVH8#202404

*744 OR *745

25628GASKET, EGR INLET

main25628-25010iA25..AXVH8#202404

*636,*744 OR *745

25629GASKET, EGR VALVE ADAPTER

main25629-25010iA25..AXVH8#202404

*636,*744 OR *745

25680COOLER ASSY, EGR

main25680-25060iA25..AXVH8#202404

*636

main25680-F0030iA25..AXVH8#202404

*744 OR *745

25685GASKET, EGR COOLER, NO.1

main25685-25011iA25..AXVH8#202404

*636,*744 OR *745

9010506353

main90105-06353

90105A0339

main90105-A0339

90105A0409

main90105-A0409

9011906A29

main90119-06A29

90119A0477

main90119-A0477

9012608050

main90126-08050

90178A0104

main90178-A0104

9025309003

main90253-09003

91551G0820

main91551-G0820

9212280816

main92122-80816

9415120841

main94151-20841

20 parts on this diagram · 1 diagram in section
