ENGINE OIL PUMP

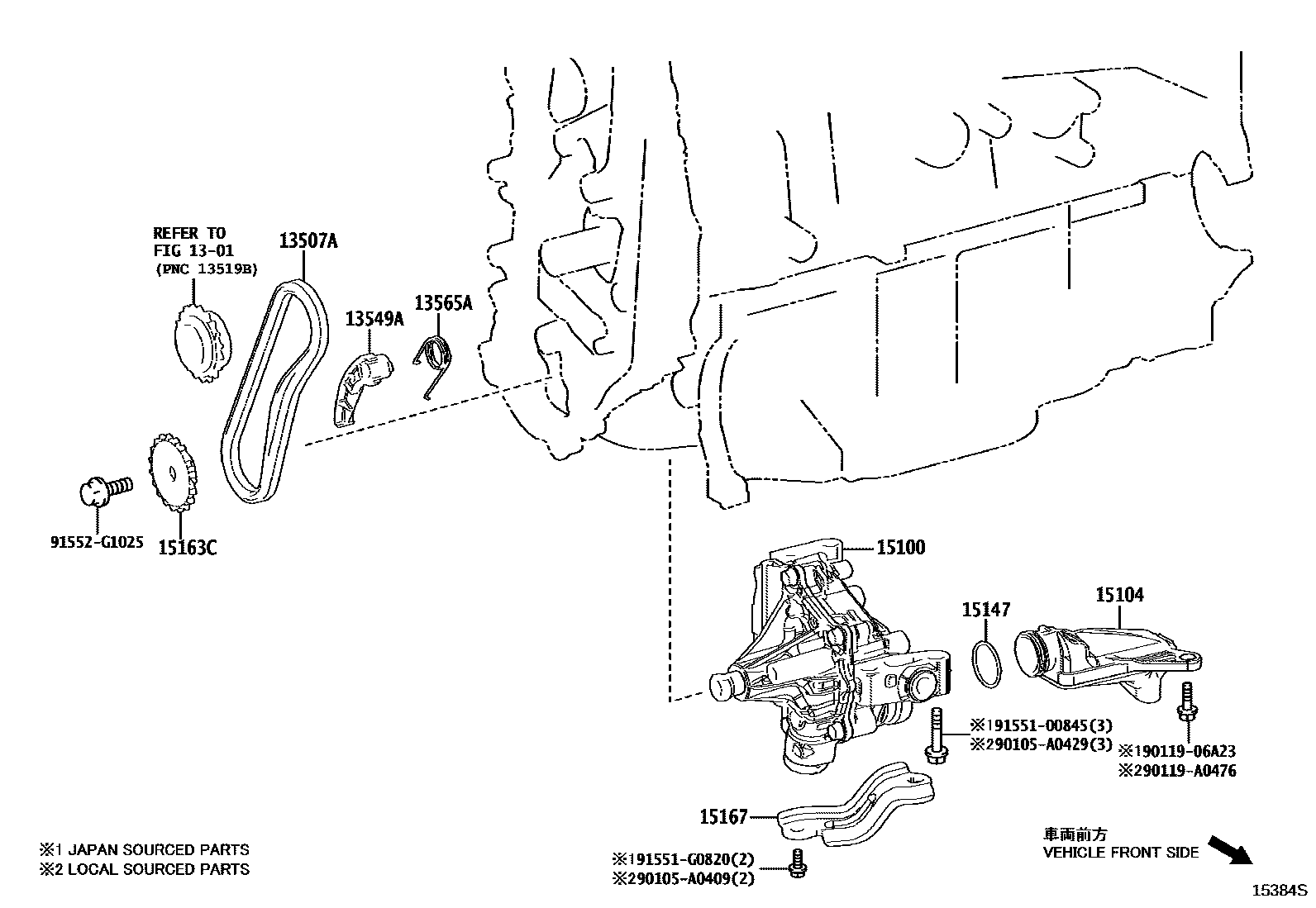

Parts diagram

1301CRANKSHAFT & PISTON

→ Go to FIG 13-01

13507ACHAIN SUB-ASSY, OIL PUMP DRIVE

main13507-25010i202404

*636

main13507-F0010i202404

*744 OR *745

13549APLATE, CHAIN TENSIONER

main13549-25020i202404

*636

main13549-F0010i202404

*744 OR *745

13565ASPRING, CHAIN DAMPER

main13565-25010i202404

*636

main13565-F0010i202404

*744 OR *745

15100PUMP ASSY, OIL

main15100-25032i202404

*636

main15100-F0011i202404

*744 OR *745

15104STRAINER SUB-ASSY, OIL

main15104-25030i202404

*636

main15104-F0010i202404

*744 OR *745

15147GASKET, OIL STRAINER

main15147-25010i202404

*636,*744 OR *745

15163CSPROCKET, OIL PUMP DRIVE SHAFT

main15163-25010i202404

*636

main15163-F0010i202404

*744 OR *745

15167BRACKET, OIL PUMP

main15167-25011i202404

*636,*744 OR *745

90105A0409

main90105-A0409

90105A0429

main90105-A0429

9011906A23

main90119-06A23

90119A0476

main90119-A0476

9155100845

main91551-00845

91551G0820

main91551-G0820

91552G1025

main91552-G1025

16 parts on this diagram · 1 diagram in section
