CRANKSHAFT & PISTON

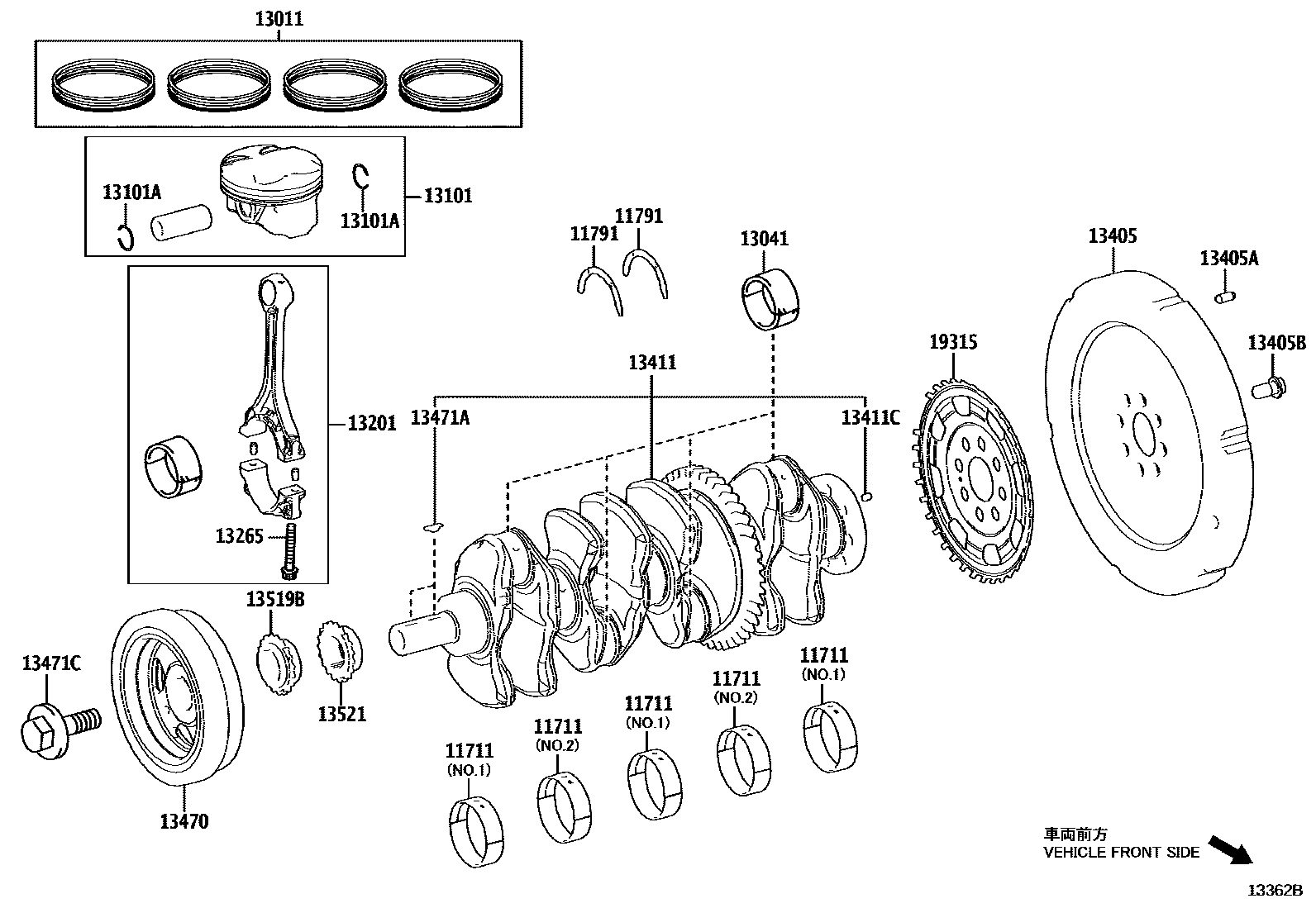

Parts diagram

11711BEARING, CRANKSHAFT

main11701-25010-01×5i202404

MARK 1,*636:REFER R/M

main11701-25010-02×5i202404

MARK 2,*636:REFER R/M

main11701-25010-03×5i202404

MARK 3,*636:REFER R/M

main11701-25010-04×5i202404

MARK 4,*636:REFER R/M

main11701-25010-05×5i202404

MARK 5,*636:REFER R/M

main11701-F0010-01×5i202404

MARK 1,*744OR*745:REFER R/M

main11701-F0010-02×5i202404

MARK 2,*744OR*745:REFER R/M

main11701-F0010-03×5i202404

MARK 3,*744OR*745:REFER R/M

main11701-F0010-04×5i202404

MARK 4,*744OR*745:REFER R/M

main11701-F0010-05×5i202404

MARK 5,*744OR*745:REFER R/M

11791WASHER, CRANKSHAFT THRUST, UPPER

main11791-25040×2i202404

STD,*636

main11791-F0040×2i202404

STD,*744 OR *745

13011RING SET, PISTON

main13011-25080i202404

STD,*636

main13011-F0040i202404

STD,*744 OR *745

13041BEARING, CONNECTING ROD

main13041-25020-01×4i202404

MARK 1,*636:REFER R/M

main13041-25020-02×4i202404

MARK 2,*636:REFER R/M

main13041-25020-03×4i202404

MARK 3,*636:REFER R/M

main13041-F0010-01×4i202404

MARK 1,*744OR*745:REFER R/M

main13041-F0010-02×4i202404

MARK 2,*744OR*745:REFER R/M

main13041-F0010-03×4i202404

MARK 3,*744OR*745:REFER R/M

13101PISTON SUB-ASSY, W/PIN

main13101-25040×4i202404

STD,*636,(J),*744 OR *745

main13101-F0020×4i202404

STD,(L),*744 OR *745

13101ARING, HOLE SNAP(FOR PISTON PIN)

main90520-21024×8i202404

*636,*744 OR *745

13201ROD SUB-ASSY, CONNECTING

main13201-29815-A0×4i202404

MARK A,*636:REFER R/M

main13201-29815-B0×4i202404

MARK B,*636:REFER R/M

main13201-29815-C0×4i202404

MARK C,*636:REFER R/M

main13201-F9000-A0×4i202404

MARK A,*744OR*745:REFER R/M

main13201-F9000-B0×4i202404

MARK B,*744OR*745:REFER R/M

main13201-F9000-C0×4i202404

MARK C,*744OR*745:REFER R/M

13265BOLT, CONNECTING ROD

main13265-25020×8i202404

*636

main13265-F0010×8i202404

*744 OR *745

13405FLYWHEEL SUB-ASSY

main13451-25030i202404

*636,*744 OR *745

13405APIN, STRAIGHT(FOR FLYWHEEL)

main90250-08120×3i202404

L=18,OD=8,*636,*744 OR *745

13405BBOLT, FLYWHEEL SETTING

main90105-12404×8i202404

*636,*744 OR *745

13411CRANKSHAFT

main13401-25010i202404

*636

main13401-F0010i202404

*744 OR *745

13411CPIN, STRAIGHT(FOR CRANKSHAFT)

main90250-06035i202404

*636,*744 OR *745

13470PULLEY ASSY, CRANKSHAFT

main13470-25020i202404

*636,*744 OR *745

13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)

main90280-04001×2i202404

*636,*744 OR *745

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90119-16020i202404

*636

main90119-A0265i202404

*744 OR *745

13519BSPROCKET, OIL PUMP DRIVE

main13519-25010i202404

*636

main13519-F0010i202404

*744 OR *745

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-25010i202404

*636

main13521-F0010i202404

*744 OR *745

19315PLATE, CRANK ANGLE SENSOR, NO.1

main19315-25011i202404

*636

main19315-F0011i202404

*744 OR *745

19 parts on this diagram · 1 diagram in section
