STANDARD TOOL

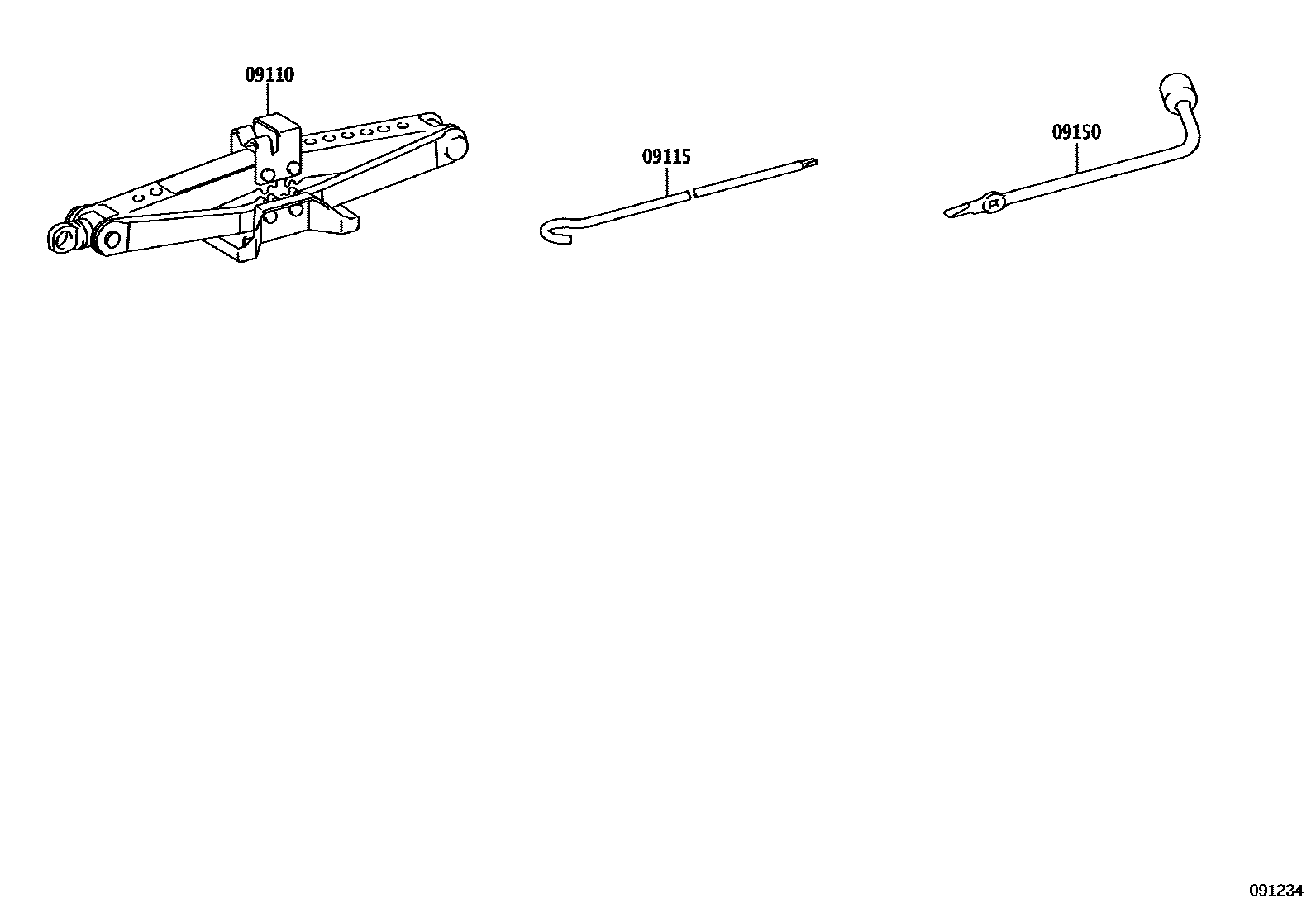

Parts diagram

09110JACK ASSY

main09111-06120i202404

09115ROD SUB-ASSY, JACK HANDLE

main09115-0R010i202404

09150WRENCH, HUB NUT BOX

main09150-06010i202404

3 parts on this diagram · 1 diagram in section
