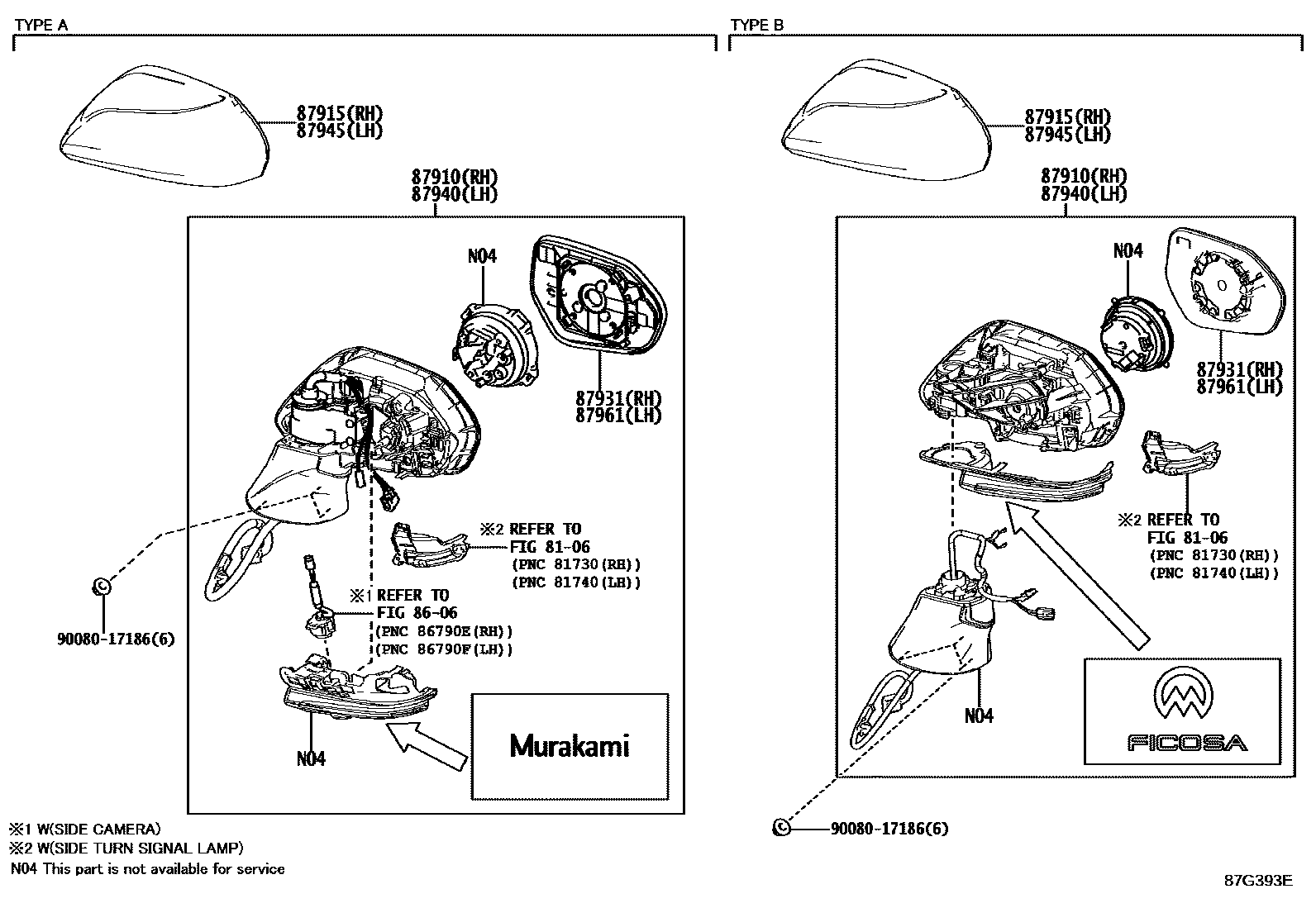

MIRROR
8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP
8606CAMERA & REAR MONITOR DISPLAY
87910MIRROR ASSY, OUTER REAR VIEW, RH
TYPE A, MURAKAMI
TYPE B
NO PAINT REQ.,TYPE B, FICOSA
NO PAINT REQ.,CANADA SPEC&CONVENIENT PACKAGE 2&HEATER PACKAGE&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),TYPE A, MURAKAMI; NO PAINT REQ.,CANADA SPEC&CONVENIENT PACKAGE 2&LANE CHANGE ASSIST-WITH(*BSM & REARCROSS TRAFFIC ALERT),TYPE A, MURAKAMI; NO PAINT REQ.,CONVENIENT PACKAGE 2&HEATER PACKAGE&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),TYPE A, MURAKAMI; NO PAINT REQ.,CONVENIENT PACKAGE 2&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),TYPE A, MURAKAMI; NO PAINT REQ.,LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),TYPE A, MURAKAMI
NO PAINT REQ.,DRIVER ASSIST PACKAGE&AUDIO-8INCH DISPLAY & CD & 9SPEAKER&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),TYPE A, MURAKAMI; NO PAINT REQ.,DRIVER ASSIST PACKAGE&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),TYPE A, MURAKAMI
NO PAINT REQ.,DRIVER ASSIST PACKAGE,TYPE A, MURAKAMI
87915COVER, OUTER MIRROR, RH
main87915-06130-A0supersedes 87915-06330-A0iAXVH71..SE; AXVH71..XLE;AXVA7#,AXVH70,GSV70..LE,SE,XLE202010
LANE CHANGE ASSIST-WITH,SUPER WHITE 2,040,TYPE A, MURAKAMI; SUPER WHITE 2,040,TYPE A, MURAKAMI
PLATINUM WHITE PEARL MC.,089,TYPE A, MURAKAMI
GRAY M.M.,1H1,TYPE A, MURAKAMI; LANE CHANGE ASSIST-WITH,GRAY M.M.,1H1,TYPE A, MURAKAMI
LANE CHANGE ASSIST-WITH,SILVER ME.,1J9,TYPE A, MURAKAMI; SILVER ME.,1J9,TYPE A, MURAKAMI
ASH GRAY ME.,1K6,TYPE A, MURAKAMI; LANE CHANGE ASSIST-WITH,ASH GRAY ME.,1K6,TYPE A, MURAKAMI
main87915-06130-C0supersedes 87915-06330-C0iAXVA7#,AXVH7#,GSV70..LE,XLE; AXVA7#,AXVH70..SE; AXVA7#,AXVH70..XSE; AXVH71..SE; GSV70..XSE202010
ATTITUDE BLACK MC.,040 ,1J9 ,218 ,8Q4,TYPE A, MURAKAMI; ATTITUDE BLACK MC.,218 ,2PS ,2PT ,2QQ ,2SC ,2UZ ,2VV ,2YE,TYPE A, MURAKAMI; ATTITUDE BLACK MC.,218 ,2PS ,2PT ,2QQ ,2SC,TYPE A, MURAKAMI; ATTITUDE BLACK MC.,218,TYPE A, MURAKAMI; LANE CHANGE ASSIST-WITH,ATTITUDE BLACK MC.,040 ,1J9 ,218 ,8Q4,TYPE A, MURAKAMI
main87915-06130-C1supersedes 87915-06330-C1iAXVH71..SE; AXVH71..XLE;AXVA7#,AXVH70,GSV70202010-202108
BLACKISH AGEHA GF.,221,TYPE A, MURAKAMI; LANE CHANGE ASSIST-WITH,BLACKISH AGEHA GF.,221,TYPE A, MURAKAMI
RED MC.,3T3,TYPE A, MURAKAMI
EMOTIONAL RED 2,3U5,TYPE A, MURAKAMI; LANE CHANGE ASSIST-WITH,EMOTIONAL RED 2,3U5,TYPE A, MURAKAMI
main87915-06130-J2supersedes 87915-06330-J3iAXVA70,AXVH7#,GSV70..XLE,XSE; AXVA70,AXVH70..LE,SE201706-202010
BLUE ME.,8T7,TYPE A, MURAKAMI; LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),BLUE ME.,8T7,TYPE A, MURAKAMI
DK. BLUE MC.,8X8,TYPE A, MURAKAMI; LANE CHANGE ASSIST-WITH,DK. BLUE MC.,8X8,TYPE A, MURAKAMI
DK.BLUE,8Q4,TYPE A, MURAKAMI; LANE CHANGE ASSIST-WITH,DK.BLUE,8Q4,TYPE A, MURAKAMI
GRAYISH BLUE,8W2,TYPE A, MURAKAMI; LANE CHANGE ASSIST-WITH,GRAYISH BLUE,8W2,TYPE A, MURAKAMI
SUPER WHITE 2,040,TYPE B, FICOSA
CANADA SPEC&TRD PACKAGE,PLATINUM WHITE PEARL MC.,089,TYPE B; PLATINUM WHITE PEARL MC.,089,TYPE B
GRAY M.M.,1H1,TYPE B, FICOSA
SILVER ME.,1J9,TYPE B, FICOSA
ASH GRAY ME.,1K6,TYPE B, FICOSA
ATTITUDE BLACK MC.,218,TYPE B, FICOSA
BLACKISH AGEHA GF.,221,TYPE B, FICOSA
RED MC.,3T3,TYPE B, FICOSA
CANADA SPEC,EMOTIONAL RED 2,3U5,TYPE B; EMOTIONAL RED 2,3U5,TYPE B; EMOTIONAL RED 2,3U5,TYPE B, FICOSA
GRAPHITE ME.,4X7,TYPE B, FICOSA
BLUE ME.,8T7,TYPE B, FICOSA
DK. BLUE MC.,8X8,TYPE B, FICOSA
DK.BLUE,8Q4,TYPE B, FICOSA
GRAYISH BLUE,8W2,TYPE B, FICOSA
CANADA SPEC&CONVENIENT PACKAGE 2&HEATER PACKAGE&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),GRAPHITE ME.,4X7,TYPE A, MURAKAMI, #; CANADA SPEC&CONVENIENT PACKAGE 2&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFICALERT),GRAPHITE ME.,4X7,TYPE A, MURAKAMI, #; CONVENIENT PACKAGE 2&HEATER PACKAGE&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),GRAPHITE ME.,4X7,TYPE A, MURAKAMI, #; CONVENIENT PACKAGE 2&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),GRAPHITE ME.,4X7,TYPE A, MURAKAMI, #; DRIVER ASSIST PACKAGE&PARKING SUPPORT ALART/BRAKE-WITH(*ICS & *RCTB)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),GRAPHITE ME.,4X7,TYPE A, MURAKAMI; GRAPHITE ME.,4X7,TYPE A, MURAKAMI; LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),GRAPHITE ME.,4X7,TYPE A,MURAKAMI, #
main87915-06130-J1supersedes 87915-06330-J1iAXVA70,AXVH7#..LE,SE; AXVA70,AXVH71,GSV70..XLE,XSE; AXVA70,GSV70..XLE,XSE; AXVH71..XLE; GSV70;AXVA70..XLE201706-201809
DK.BLUE M.M.,8W7,TYPE A, MURAKAMI; DRIVER ASSIST PACKAGE&AUDIO-8INCH DISPLAY & CD & 9SPEAKER&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),DK.BLUE M.M.,8W7,TYPE A, MURAKAMI; DRIVER ASSIST PACKAGE&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),DK.BLUE M.M.,8W7,TYPE A, MURAKAMI; LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),DK.BLUE M.M.,8W7,TYPE A,MURAKAMI; MEXICO SPEC&DRIVER ASSIST PACKAGE&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),DK.BLUE M.M.,8W7,TYPE A, MURAKAMI
main87915-06330-J1supersedes 87915-06130-J1iAXVA70,AXVH7#..LE,SE; AXVA70,AXVH71,GSV70..XLE,XSE201706-201809
CANADA SPEC,DK.BLUE M.M.,8W7,TYPE B; DK.BLUE M.M.,8W7,TYPE B
87931OUTER MIRROR, RH
TYPE B, FICOSA
TYPE A, MURAKAMI
TYPE B
main87902-06190supersedes 87902-06180iAXVA7#,AXVH7#,GSV70..XLE,XSE; AXVA7#,AXVH70..LE,SE; AXVA75..SE;AXVH70..LE;AXVA70..LE,SE; AXVH71..SE202010
CANADA SPEC&OUTSIDE REAR VIEW MIRROR-MANUAL RETRACTABLE & *HEA&LANE CHANGE ASSIST-WITH,TYPE A, MURAKAMI; LANE CHANGE ASSIST-WITH,TYPE A, MURAKAMI; OUTSIDE REAR VIEW MIRROR-MANUAL RETRACTABLE & *HEA&LANE CHANGE ASSIST-WITH,TYPE A,MURAKAMI; TYPE A, MURAKAMI
87940MIRROR ASSY, OUTER REAR VIEW, LH
NO PAINT REQ.,TYPE A, MURAKAMI, #
NO PAINT REQ.,TYPE B
NO PAINT REQ.,TYPE B, FICOSA, #
NO PAINT REQ.,CANADA SPEC&CONVENIENT PACKAGE 2&HEATER PACKAGE&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),TYPE A, MURAKAMI; NO PAINT REQ.,CANADA SPEC&CONVENIENT PACKAGE 2&LANE CHANGE ASSIST-WITH(*BSM & REARCROSS TRAFFIC ALERT),TYPE A, MURAKAMI; NO PAINT REQ.,CONVENIENT PACKAGE 2&HEATER PACKAGE&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),TYPE A, MURAKAMI; NO PAINT REQ.,CONVENIENT PACKAGE 2&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),TYPE A, MURAKAMI; NO PAINT REQ.,LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),TYPE A, MURAKAMI
NO PAINT REQ.,DRIVER ASSIST PACKAGE&AUDIO-8INCH DISPLAY & CD & 9SPEAKER&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),TYPE A, MURAKAMI; NO PAINT REQ.,DRIVER ASSIST PACKAGE&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),TYPE A, MURAKAMI
NO PAINT REQ.,DRIVER ASSIST PACKAGE,TYPE A, MURAKAMI
87945COVER, OUTER MIRROR, LH
main87945-06130-A0supersedes 87945-06330-A0iAXVH71..SE; AXVH71..XLE;AXVA7#,AXVH70,GSV70..LE,SE,XLE202010
LANE CHANGE ASSIST-WITH,SUPER WHITE 2,040,TYPE A, MURAKAMI; SUPER WHITE 2,040,TYPE A, MURAKAMI
main87945-06130-A1supersedes 87945-06330-A1iAXVA70,AXVH71..SE; AXVA70,GSV70..XLE,XSE; AXVH71..XLE; GSV70;AXVA70..XLE201706-201809
DRIVER ASSIST PACKAGE&AUDIO-8INCH DISPLAY & CD & 9SPEAKER&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),PLATINUM WHITE PEARL MC.,089,TYPE A, MURAKAMI; DRIVER ASSIST PACKAGE&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),PLATINUM WHITE PEARL MC.,089,TYPE A, MURAKAMI; MEXICO SPEC&DRIVER ASSIST PACKAGE&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),PLATINUM WHITE PEARL MC.,089,TYPE A, MURAKAMI; PLATINUM WHITE PEARL MC.,089,TYPE A, MURAKAMI
GRAY M.M.,1H1,TYPE A, MURAKAMI; LANE CHANGE ASSIST-WITH,GRAY M.M.,1H1,TYPE A, MURAKAMI
LANE CHANGE ASSIST-WITH,SILVER ME.,1J9,TYPE A, MURAKAMI; SILVER ME.,1J9,TYPE A, MURAKAMI
ASH GRAY ME.,1K6,TYPE A, MURAKAMI; LANE CHANGE ASSIST-WITH,ASH GRAY ME.,1K6,TYPE A, MURAKAMI
main87945-06130-C0supersedes 87945-06330-C0iAXVA7#,AXVH7#,GSV70..LE,XLE; AXVA7#,AXVH70..SE; AXVA7#,AXVH70..XSE; AXVH71..SE; GSV70..XSE202010
ATTITUDE BLACK MC.,040 ,1J9 ,218 ,8Q4,TYPE A, MURAKAMI; ATTITUDE BLACK MC.,218 ,2PS ,2PT ,2QQ ,2SC ,2UZ ,2VV ,2YE,TYPE A, MURAKAMI; ATTITUDE BLACK MC.,218 ,2PS ,2PT ,2QQ ,2SC,TYPE A, MURAKAMI; ATTITUDE BLACK MC.,218,TYPE A, MURAKAMI; LANE CHANGE ASSIST-WITH,ATTITUDE BLACK MC.,040 ,1J9 ,218 ,8Q4,TYPE A, MURAKAMI
main87945-06130-C1supersedes 87945-06330-C1iAXVA70,AXVH7#,GSV70..XLE,XSE; AXVA70,AXVH70..LE,N,SE201706-202010
BLACKISH AGEHA GF.,221,TYPE A, MURAKAMI; LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),BLACKISH AGEHA GF.,221,TYPE A, MURAKAMI
RED MC.,3T3,TYPE A, MURAKAMI
DRIVER ASSIST PACKAGE&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),EMOTIONAL RED 2,3U5,TYPE A, MURAKAMI; EMOTIONAL RED 2,3U5,TYPE A, MURAKAMI; LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),EMOTIONAL RED 2,3U5,TYPEA, MURAKAMI
main87945-06130-J2supersedes 87945-06330-J3iAXVA70,AXVH7#,GSV70..XLE,XSE; AXVA70,AXVH70..LE,SE201706-202010
BLUE ME.,8T7,TYPE A, MURAKAMI; LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),BLUE ME.,8T7,TYPE A, MURAKAMI
DK. BLUE MC.,8X8,TYPE A, MURAKAMI; LANE CHANGE ASSIST-WITH,DK. BLUE MC.,8X8,TYPE A, MURAKAMI
DK.BLUE,8Q4,TYPE A, MURAKAMI; LANE CHANGE ASSIST-WITH,DK.BLUE,8Q4,TYPE A, MURAKAMI
GRAYISH BLUE,8W2,TYPE A, MURAKAMI; LANE CHANGE ASSIST-WITH,GRAYISH BLUE,8W2,TYPE A, MURAKAMI
SUPER WHITE 2,040,TYPE B, FICOSA
CANADA SPEC&TRD PACKAGE,PLATINUM WHITE PEARL MC.,089,TYPE B; PLATINUM WHITE PEARL MC.,089,TYPE B
GRAY M.M.,1H1,TYPE B, FICOSA
SILVER ME.,1J9,TYPE B, FICOSA
ASH GRAY ME.,1K6,TYPE B, FICOSA
ATTITUDE BLACK MC.,218,TYPE B, FICOSA
BLACKISH AGEHA GF.,221,TYPE B, FICOSA
RED MC.,3T3,TYPE B, FICOSA
CANADA SPEC,EMOTIONAL RED 2,3U5,TYPE B; EMOTIONAL RED 2,3U5,TYPE B; EMOTIONAL RED 2,3U5,TYPE B, FICOSA
GRAPHITE ME.,4X7,TYPE B, FICOSA
BLUE ME.,8T7,TYPE B, FICOSA
DK. BLUE MC.,8X8,TYPE B, FICOSA
DK.BLUE,8Q4,TYPE B, FICOSA
GRAYISH BLUE,8W2,TYPE B, FICOSA
CANADA SPEC&CONVENIENT PACKAGE 2&HEATER PACKAGE&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),GRAPHITE ME.,4X7,TYPE A, MURAKAMI, #; CANADA SPEC&CONVENIENT PACKAGE 2&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFICALERT),GRAPHITE ME.,4X7,TYPE A, MURAKAMI, #; CONVENIENT PACKAGE 2&HEATER PACKAGE&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),GRAPHITE ME.,4X7,TYPE A, MURAKAMI, #; CONVENIENT PACKAGE 2&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),GRAPHITE ME.,4X7,TYPE A, MURAKAMI, #; DRIVER ASSIST PACKAGE&PARKING SUPPORT ALART/BRAKE-WITH(*ICS & *RCTB)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),GRAPHITE ME.,4X7,TYPE A, MURAKAMI; GRAPHITE ME.,4X7,TYPE A, MURAKAMI; LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),GRAPHITE ME.,4X7,TYPE A,MURAKAMI, #
main87945-06130-J1iAXVA70,AXVH7#..LE,SE; AXVA70,AXVH71,GSV70..XLE,XSE; AXVA70,GSV70..XLE,XSE; AXVH71..XLE; GSV70;AXVA70..XLE201706-201809
DK.BLUE M.M.,8W7,TYPE A, MURAKAMI; DRIVER ASSIST PACKAGE&AUDIO-8INCH DISPLAY & CD & 9SPEAKER&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),DK.BLUE M.M.,8W7,TYPE A, MURAKAMI; DRIVER ASSIST PACKAGE&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),DK.BLUE M.M.,8W7,TYPE A, MURAKAMI; LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),DK.BLUE M.M.,8W7,TYPE A,MURAKAMI; MEXICO SPEC&DRIVER ASSIST PACKAGE&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),DK.BLUE M.M.,8W7,TYPE A, MURAKAMI
main87945-06330-J1supersedes 87945-06130-J1iAXVA70,AXVH7#..LE,SE; AXVA70,AXVH71,GSV70..XLE,XSE201706-201809
CANADA SPEC,DK.BLUE M.M.,8W7,TYPE B; DK.BLUE M.M.,8W7,TYPE B
87961MIRROR OUTER, LH
TYPE A, MURAKAMI
TYPE B
main87907-06170supersedes 87907-06160iAXVA7#,AXVH7#,GSV70..XLE,XSE; AXVA7#,AXVH70..LE,SE; AXVA75..SE;AXVH70..LE;AXVA70..LE,SE; AXVH71..SE202010
CANADA SPEC&OUTSIDE REAR VIEW MIRROR-MANUAL RETRACTABLE & *HEA&LANE CHANGE ASSIST-WITH,TYPE A, MURAKAMI; LANE CHANGE ASSIST-WITH,TYPE A, MURAKAMI; OUTSIDE REAR VIEW MIRROR-MANUAL RETRACTABLE & *HEA&LANE CHANGE ASSIST-WITH,TYPE A,MURAKAMI; TYPE A, MURAKAMI
TYPE B, FICOSA
9008017186
main90080-17186
9 parts on this diagram · 2 diagrams in section
