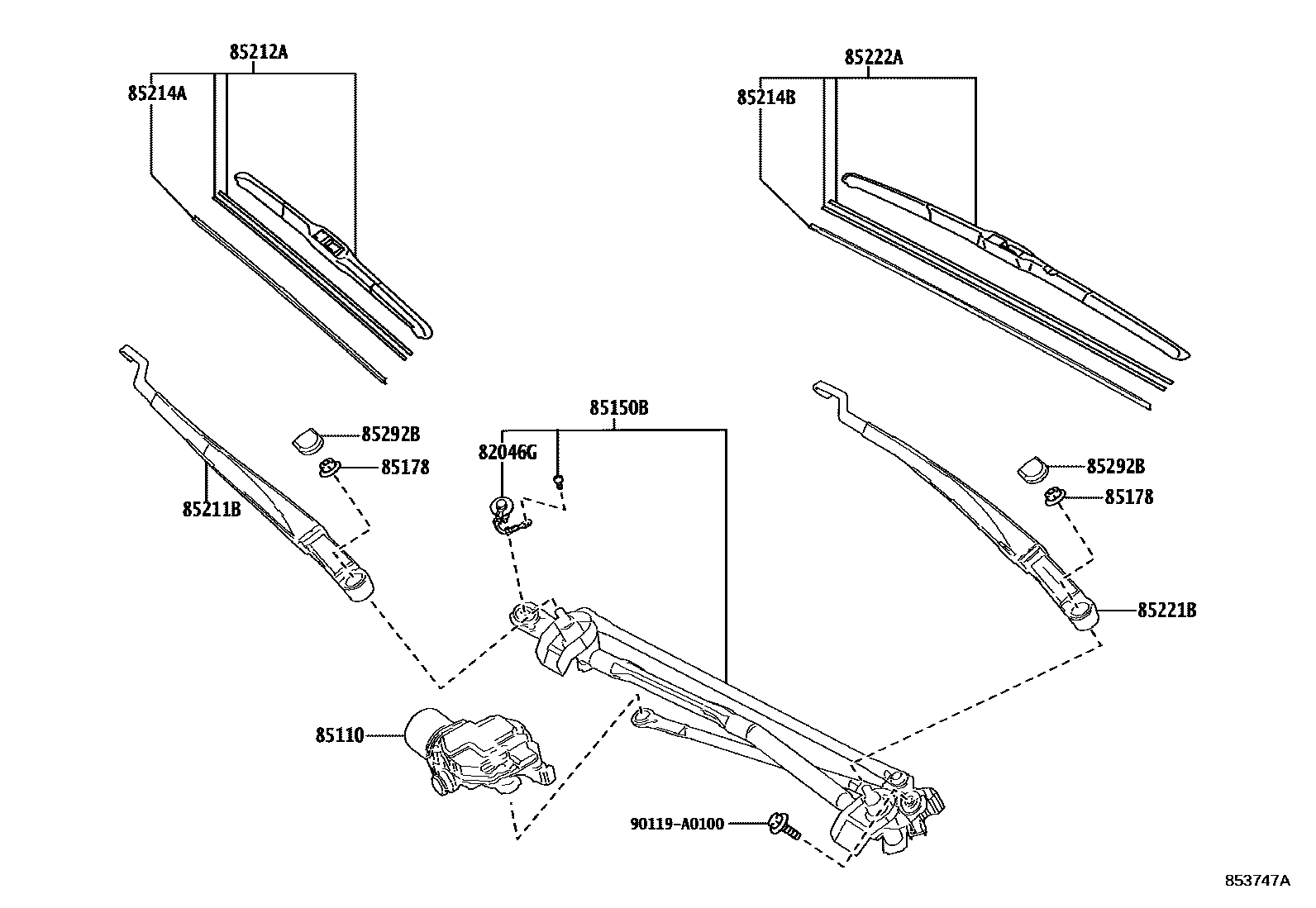

WINDSHIELD WIPER

0001 1 0003 1

82046GWIRE SUB-ASSY, BODY GROUND

main82046-06080iAXVA70,AXVH7#,GSV70201706-202010

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-33430iAXVA75202003-202007

main85110-33432iAXVA70,AXVH7#,GSV70202006-202010

85150BLINK ASSY, WIPER

main85150-06200iAXVA75202003-202010

main85150-06201iAXVA7#,AXVH7#,GSV70202010-202109

main85150-06202iAXVA7#,AXVH7#,GSV70202110

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-A0017×2iAXVA70,AXVH7#,GSV70201706-202010

85211BARM, FRONT WIPER, RH

main85211-06250iAXVA70,AXVH7#,GSV70201706-202010

85212ABLADE, FR WIPER, RH

main85212-06250iAXVA70,AXVH7#,GSV70201706-202010

85214ARUBBER, WIPER, RH

main85214-0E140iAXVA70,AXVH7#,GSV70201706-202010

85214BRUBBER, WIPER, LH

main85214-0E151iAXVA70,AXVH7#,GSV70201706-202010

85221BARM, FRONT WIPER, LH

main85221-06250iAXVA70,AXVH7#,GSV70201706-202010

85222ABLADE, FR WIPER, LH

main85222-06250iAXVA70,AXVH7#,GSV70201706-202010

85292BCAP, FRONT WIPER ARM HEAD

main85292-AA010×2iAXVA70,AXVH7#,GSV70201706-202010

90119A0100

main90119-A0100

12 parts on this diagram · 2 diagrams in section
