ELECTRONIC FUEL INJECTION SYSTEM

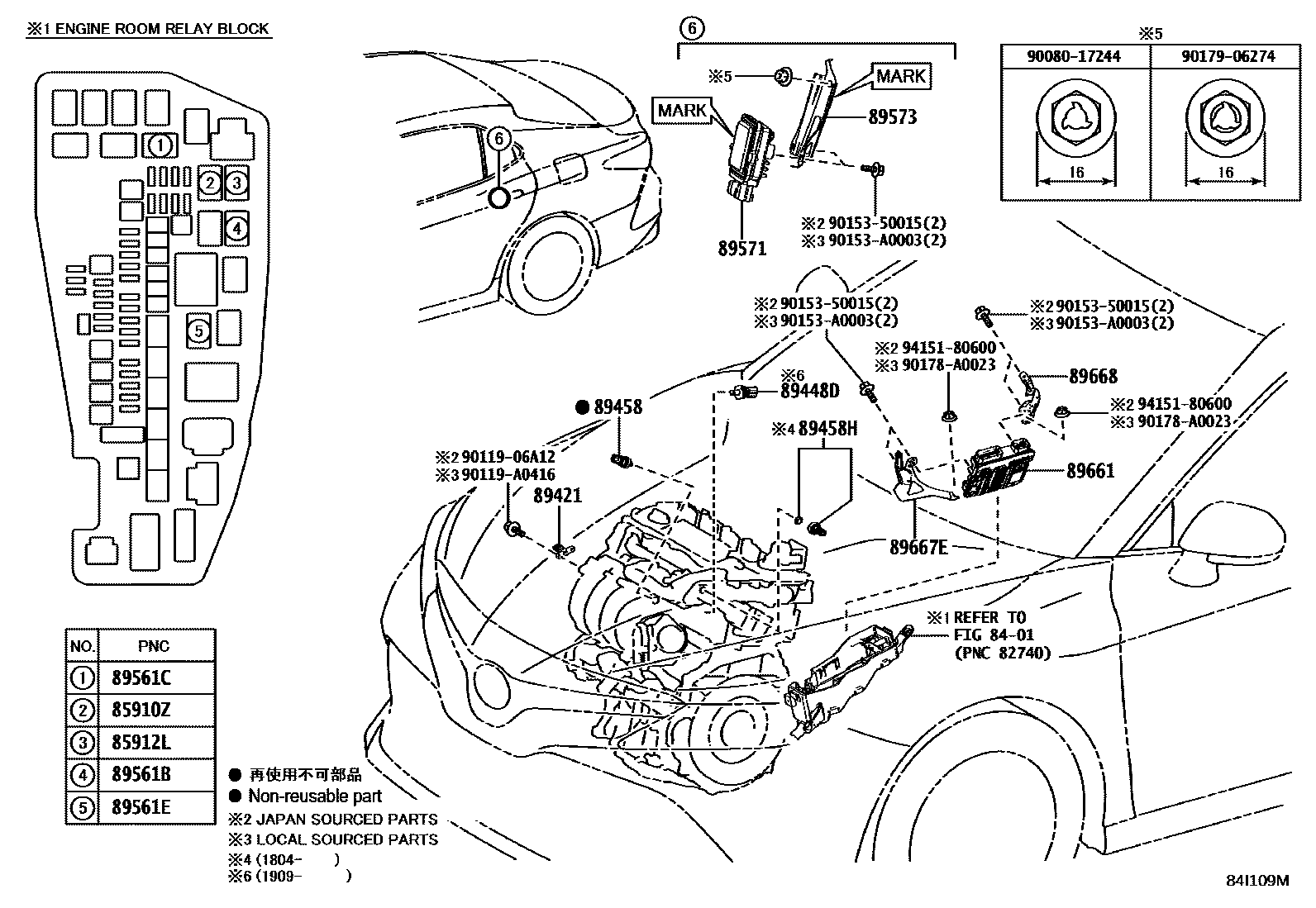

0001 1 0002 1 0003 1

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

85910ZRELAY, INJECTION (FOR EFI)

main90080-87026iAXVA70,GSV70201706-202010

85912LRELAY, VVT

main90080-87026iAXVA70,AXVH7#201706-202010

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-06020iAXVA70,AXVH7#201706-202010

(L)

main89421-33010iAXVA75202003-202010

(J)

89448DSENSOR, OIL PRESSURE & TEMPERATURE

main89448-06010iAXVA70; AXVH7#201909-202010

(L)

main89448-33010iAXVA70201909-202010

(J)

89458SENSOR, FUEL PRESSURE

main89458-06010iAXVA7#; AXVH7#202010

(L)

main89458-33030iAXVA7#202010

(J)

89458HSENSOR, FUEL PRESSURE, NO.2

main89458-06021iAXVA70; AXVH7#201804-202010

(L)

main89458-06022iAXVA7#; AXVH7#202307

(L)

main89458-33041iAXVA70201804-202010

(J)

main89458-33042iAXVA7#202307

(J)

89561BRELAY, ELECTRONIC FUEL INJECTION MAIN, NO.1

main90080-87026iAXVA75202003-202010

89561CRELAY, ELECTRONIC FUEL INJECTION MAIN, NO.2

main90080-87026iAXVA70,AXVH7#,GSV70201706-202010

89561ERELAY, ELECTRONIC FUEL INJECTION MAIN, NO.3

main90080-87026iAXVA70,AXVH7#,GSV70201706-202010

89571COMPUTER, FUEL PUMP CONTROL

main89571-06010iAXVA70,AXVH7#201706-202004

(L),MARK 89571-06010

main89571-06020iGSV70201706-202004

(L),MARK 89571-06020

main89571-08010iGSV70202004-202010

(L),MARK 89571-08010

main89571-0R010iAXVA7#,AXVH7#202010

(L)

main89571-33030iAXVA70,AXVH7#201706-202004

(J),MARK 89571-33030

main89571-42010iAXVA7#; AXVH7#202010

(J); (J),MARK 89571-42010

main89571-58010iGSV70201706-202004

(J),MARK 89571-58010

main89571-58020iGSV70202010

(J),MARK 89571-58020

89573BRACKET, FUEL PUMP CONTROL COMPUTER

main89573-33040iAXVA70,AXVH7#,GSV70201706-202004

MARK K

main89573-33070iAXVA70,AXVH7#,GSV70202004-202010

MARK C

89661COMPUTER, ENGINE CONTROL

main89661-06N40iAXVH70201706-201708

main89661-06N41iAXVH70201709-201711

DENSO

main89661-06N42iAXVH70201712-201802

DENSO

main89661-06N43iAXVH70201803-201804

DENSO

main89661-06N44iAXVH70201804-201809

DENSO

main89661-06U30iAXVH70202010-202208

DENSO

main89661-06X51iAXVA70201706-201709

DENSO

main89661-06X52iAXVA70201710-201711

DENSO

main89661-06X54iAXVA70201711-201805

DENSO

main89661-06X56iAXVA70201805-201809

DENSO

main89661-06X90iGSV70201809-201810

DENSO,MARK 89661-06X90

main89661-06X91iGSV70201811-201909

DENSO

main89661-0X280iAXVH71201706-201709

main89661-0X281iAXVH71201710-201802

DENSO

main89661-0X282iAXVH71201803-201804

DENSO

main89661-0X283iAXVH71201804-201809

DENSO

main89661-0X430iAXVH71202010-202208

DENSO

main89661-0X560iAXVH70201809-201909

DENSO

main89661-0X570iAXVH71201809-201909

DENSO

main89661-0X580iAXVA70201809-201810

DENSO

main89661-0X581iAXVA70201811-201812

DENSO

main89661-0X582iAXVA70201812-201906

DENSO

main89661-0X583iAXVA70201906-201909

DENSO

main89661-0X600iAXVA75202003-202010

DENSO

main89661-0X610iGSV70201909-201910

DENSO

main89661-0X620iAXVH70201909-201910

DENSO

main89661-0X621iAXVH70201910-202010

DENSO

main89661-0X630iAXVH71201909-201910

DENSO

main89661-0X631iAXVH71201910-202010

DENSO

main89661-0X650iAXVA70201909-201910

DENSO

main89661-0X651iAXVA70201911-202002

DENSO

main89661-0X652iAXVA70202003-202007

DENSO

main89661-0X653iAXVA70202008-202010

DENSO

main89661-0X710iAXVA70202010-202104

DENSO

main89661-0X711iAXVA70202105-202208

DENSO

main89661-0X720iAXVA75202010-202104

DENSO

main89661-0X721iAXVA75202105-202204

DENSO

main89661-0X722iAXVA75202205-202208

DENSO

main89661-0XB10iAXVA70202208

DENSO

main89661-0XB20iAXVA75202208

DENSO

main89661-0XB40iAXVH70202208-202304

DENSO

main89661-0XB41iAXVH70202305

DENSO

main89661-0XB50iAXVH71202208-202304

DENSO

main89661-0XB51iAXVH71202305

DENSO

main89661-06X61iAXVA70..LE,N,SE,XLE201706-201711

DENSO,MEXICO SPEC

main89661-06X62iAXVA70..LE,N,SE,XLE201711-201909

DENSO,MEXICO SPEC

main89661-06Y40supersedes 89661-0X700iGSV70201706-201802

MEXICO SPEC,MARK 89661-06Y40

main89661-0X190supersedes 89661-0X700iGSV70201802-201805

DENSO,MEXICO SPEC,MARK 89661-0X190

main89661-0X191supersedes 89661-0X172iGSV70201806-201809

DENSO,MEXICO SPEC,MARK 89661-0X191

main89661-0X440iAXVH70..XLE202010-202208

DENSO,MEXICO SPEC

main89661-0X590iAXVH71..XLE201809-201909

DENSO,MEXICO SPEC

main89661-0X640iAXVH71..XLE201909-202010

DENSO,MEXICO SPEC

main89661-0X660iAXVA70..LE,N,SE,XLE201909-202010

DENSO,MEXICO SPEC

main89661-0X730iAXVA70..LE,SE,XLE202010-202208

DENSO,MEXICO SPEC

main89661-0XB30iAXVA70..LE,SE202208

DENSO,MEXICO SPEC

main89661-0XB60iAXVH70..SE,XLE202208

DENSO,MEXICO SPEC

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-06240iAXVA7#202010-202103

(L)

main89667-06250iAXVH7#201911-202010

(L)

main89667-06260iGSV70202010-202103

(L)

main89667-33190iAXVA7#202103

(L)

main89667-33200iAXVH7#201911-202010

(J)

main89667-33210iGSV70202001-202010

(J)

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-06240iAXVA75202003-202010

(L)

main89668-06250iAXVH7#201911-202010

(L)

main89668-06260iGSV70201706-201911

main89668-33240iAXVA7#202103

(L)

main89668-33250iAXVH7#202106

(L)

main89668-33260iGSV70202103

(L)

9008017244

main90080-17244

9011906A12

main90119-06A12

90119A0416

main90119-A0416

9015350015

main90153-50015

90153A0003

main90153-A0003

90178A0023

main90178-A0023

9017906274

main90179-06274

9415180600

main94151-80600

23 parts on this diagram · 3 diagrams in section
