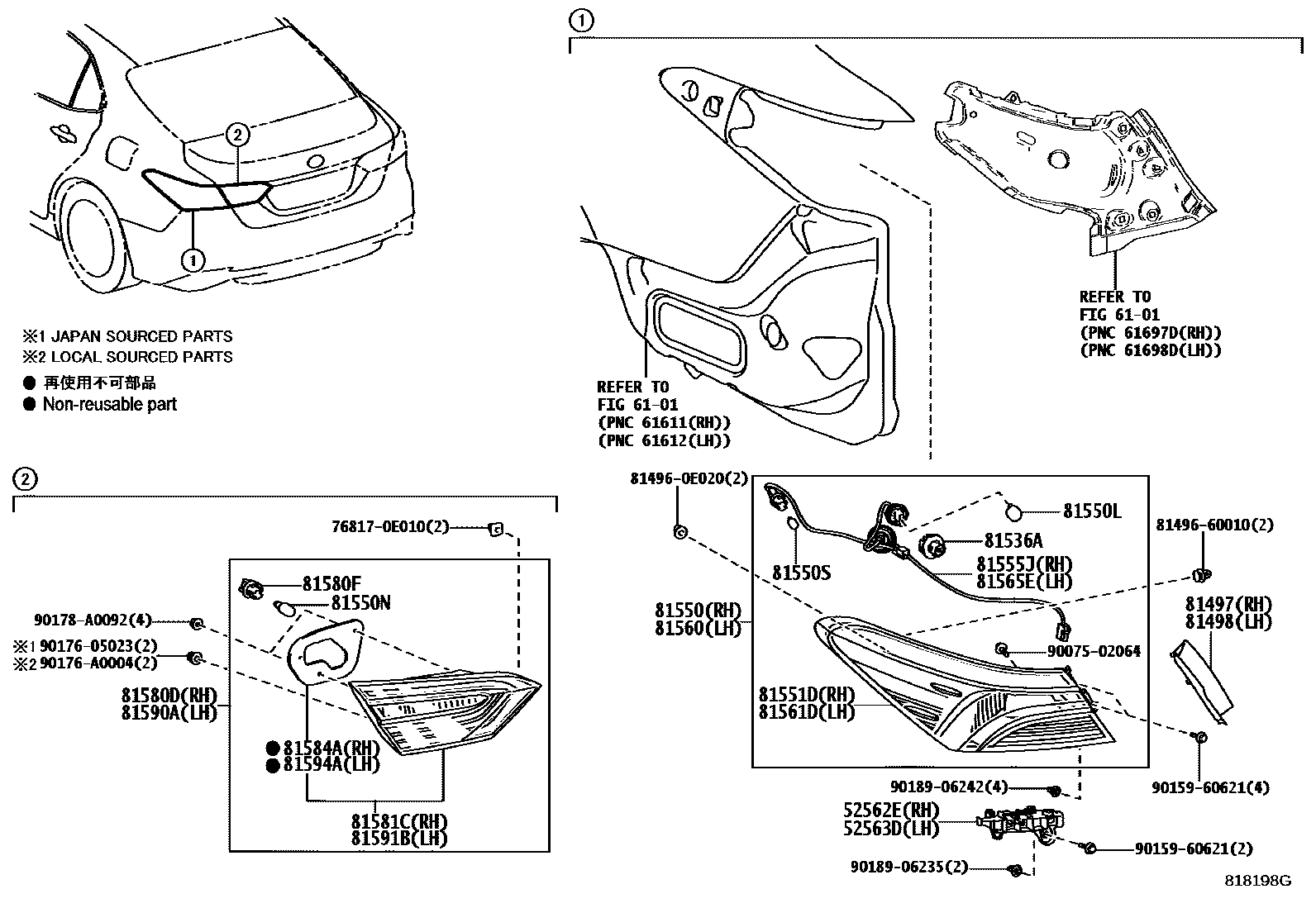

REAR COMBINATION LAMP

0001 1BULB TYPE REAR TURN SIGNAL LA0004 1LED TYPE REAR TURN SIGNAL LAM

52562ERETAINER, REAR BUMPER, UPPER RH

main52562-06090iAXVA70,AXVH7#,GSV70201706-202010

52563DRETAINER, REAR BUMPER, UPPER LH

main52563-06080iAXVA7#,AXVH7#,GSV70202010

6101SIDE MEMBER

→ Go to FIG 61-01

81497COVER, REAR COMBINATION LAMP, RH

main81497-06010iAXVA70,AXVH7#,GSV70201706-201911

main81497-06070iAXVA70,AXVH7#,GSV70201911-202010

81498COVER, REAR COMBINATION LAMP, LH

main81498-06010iAXVA70,AXVH7#,GSV70201706-201911

main81498-06070iAXVA70,AXVH7#,GSV70201911-202010

81536ALED, REAR COMBINATION LAMP

main81536-52C80×2iAXVA70,AXVH7#..LE,N,SE201706-202010

81550LAMP ASSY, REAR COMBINATION, RH

main81550-06720iAXVA75..LE,SE202003-202010

main81550-06730iAXVA70,AXVH7#,GSV70..XLE201706-202010

main81550-06840iAXVA70,AXVH71..SE201706-201909

main81550-06850iAXVA70,GSV70..XSE201706-201909

main81550-06A20iAXVA7#,AXVH7#..LE,SE; GSV70..XSE202010

TRD PACKAGE

main81550-06A30iAXVA7#,AXVH7#,GSV70..XLE,XSE202010

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15021×2iAXVA70,AXVH7#..LE,N,SE201706-202010

12V 21W,AMBER

81550NBULB, BACK UP LAMP

main90981-11059×2iAXVA7#,AXVH7#..LE,SE; GSV70..XSE202010

12V 16W; 12V 16W,TRD PACKAGE

81550SBULB, REAR SIDE MARKER LAMP

main90981-11069×2iAXVA75..LE,SE202003-202010

12V 5W

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-06720iAXVA75..LE,SE202003-202010

main81551-06840iAXVA70,AXVH71..SE201706-201909

main81551-06850iAXVA70,GSV70..XSE201706-201909

main81551-06A20iAXVA7#,AXVH7#..LE,SE; GSV70..XSE202010

TRD PACKAGE

81555JSOCKET & WIRE, REAR COMBINATION LAMP, RH

main81555-06720×2iAXVA70,AXVH71..SE201706-201909

81560LAMP ASSY, REAR COMBINATION, LH

main81560-06720iAXVA70,AXVH71..SE; GSV70..XSE201909-202010

TRD PACKAGE

main81560-06730iAXVA75..XLE,XSE202003-202010

main81560-06840iAXVA70,AXVH71..SE201706-201909

main81560-06850iAXVA70,GSV70..XSE201706-201909

main81560-06A20iAXVA7#,AXVH7#..LE,SE; GSV70..XSE202010

TRD PACKAGE

main81560-06A30iAXVA7#,AXVH7#,GSV70..XLE,XSE202010

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-06720iAXVA75..LE,SE202003-202010

main81561-06840iAXVA70,AXVH71..SE201706-201909

main81561-06850iAXVA70,GSV70..XSE201706-201909

main81561-06A20iAXVA7#,AXVH7#..LE,SE; GSV70..XSE202010

TRD PACKAGE

81565ESOCKET & WIRE, REAR COMBINATION LAMP, LH

main81555-06720iAXVA70..LE,N;AXVH70..LE,SE201706-202010

81580DLAMP ASSY, REAR, RH

main81580-06620iAXVA75..LE,SE202003-202010

main81580-06630iAXVA70,GSV70..XSE201810-202010

main81580-06770iAXVA70,AXVH71..SE201706-201810

main81580-06780iAXVA70,GSV70..XSE201706-201810

main81580-06870iAXVA7#,AXVH7#,GSV70..XLE,XSE202010

main81580-06880iAXVA7#,AXVH7#..LE,SE; GSV70..XSE202010

TRD PACKAGE

81580FSOCKET PLUG, REAR LAMP

main90075-60037×2iAXVA70,AXVH7#..LE,N,SE201706-202010

81581CLENS AND BODY, REAR LAMP, RH

main81581-06620iAXVA70..LE,N;AXVH70..LE,SE201706-202010

main81581-06630iAXVA75..XLE,XSE202003-202010

main81581-06770iAXVA70,AXVH71..SE201706-201810

main81581-06780iAXVA70,GSV70..XSE201706-201810

81584AGASKET, REAR LAMP RH

main81584-06620iAXVA75..LE,SE202003-202010

main81584-06630iAXVA75..XLE,XSE202003-202010

81590ALAMP ASSY, REAR, LH

main81590-06620iAXVA70..LE,N;AXVH70..LE,SE201706-202010

main81590-06630iAXVA75..XLE,XSE202003-202010

main81590-06770iAXVA70,AXVH71..SE201706-201810

main81590-06780iAXVA70,GSV70..XSE201706-201810

main81590-06870iAXVA7#,AXVH7#,GSV70..XLE,XSE202010

main81590-06880iAXVA7#,AXVH7#..LE,SE; GSV70..XSE202010

TRD PACKAGE

81591BLENS AND BODY, REAR LAMP, LH

main81591-06620iAXVA70..LE,N;AXVH70..LE,SE201706-202010

main81591-06630iAXVA70,GSV70..XSE201810-202010

main81591-06770iAXVA70,AXVH71..SE201706-201810

main81591-06780iAXVA70,GSV70..XSE201706-201810

81594AGASKET, REAR LAMP LH

main81594-06620iAXVA70,AXVH7#..LE,N,SE201706-202010

main81594-06630iAXVA75..XLE,XSE202003-202010

768170E010CLIP, BACK DOOR OUTSIDE GARNISH

main76817-0E010

814960E020GUIDE, REAR COMBINATION LAMP

main81496-0E020

8149660010GUIDE, REAR COMBINATION LAMP

main81496-60010

9007502064

main90075-02064

9015960621

main90159-60621

9017605023

main90176-05023

90176A0004

main90176-A0004

90178A0092

main90178-A0092

9018906235

main90189-06235

9018906242

main90189-06242
