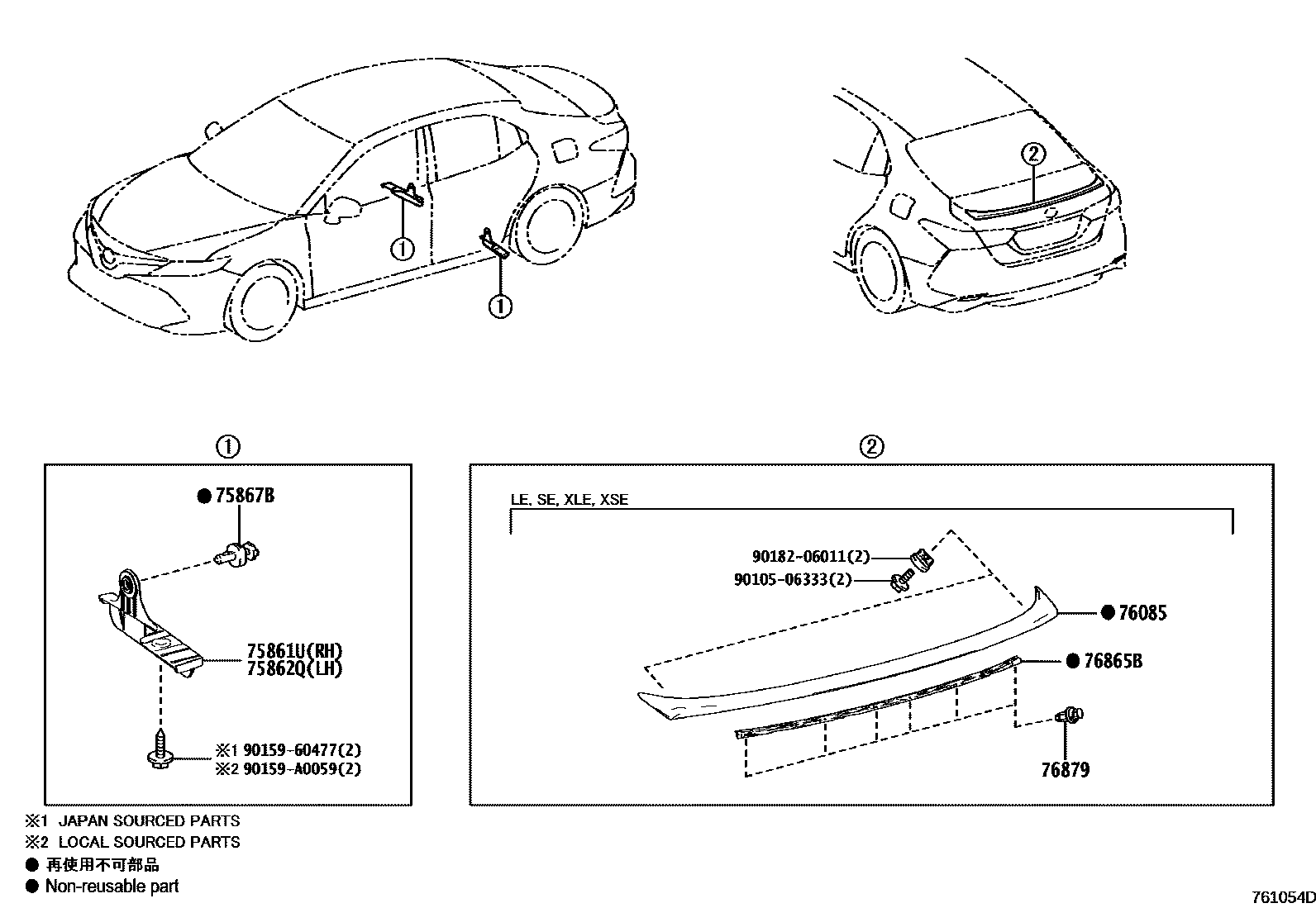

MUDGUARD & SPOILER

75861UCOVER, ROCKER PANEL MOULDING END, FRONT RH

main75861-06110iAXVA75202003-202010

75862QCOVER, ROCKER PANEL MOULDING END, FRONT LH

main75862-06120iAXVA75202003-202010

75867BCLIP, ROCKER PANEL MOULDING

main90467-07222×2iAXVA7#,AXVH7#,GSV70202010

76085SPOILER SUB-ASSY, REAR

main76085-06905iAXVA70,AXVH7#,GSV70..LE,XLE201706-202010

TRD PACKAGE

main76085-06170iAXVA75..XSE202003-202010

NO PAINT REQ.,BODY COLOR-TWO-TONES

76865BRETAINER, REAR SPOILER

main76865-06020iAXVA70,AXVH7#,GSV70..LE,XLE201706-202010

TRD PACKAGE

76879CLIP, REAR SPOILER, NO.1

main90467-05170×6iAXVA70,AXVH7#,GSV70..LE,XLE201706-202010

TRD PACKAGE

9010506333

main90105-06333

9015960477

main90159-60477

90159A0059

main90159-A0059

9018206011

main90182-06011

10 parts on this diagram · 1 diagram in section
