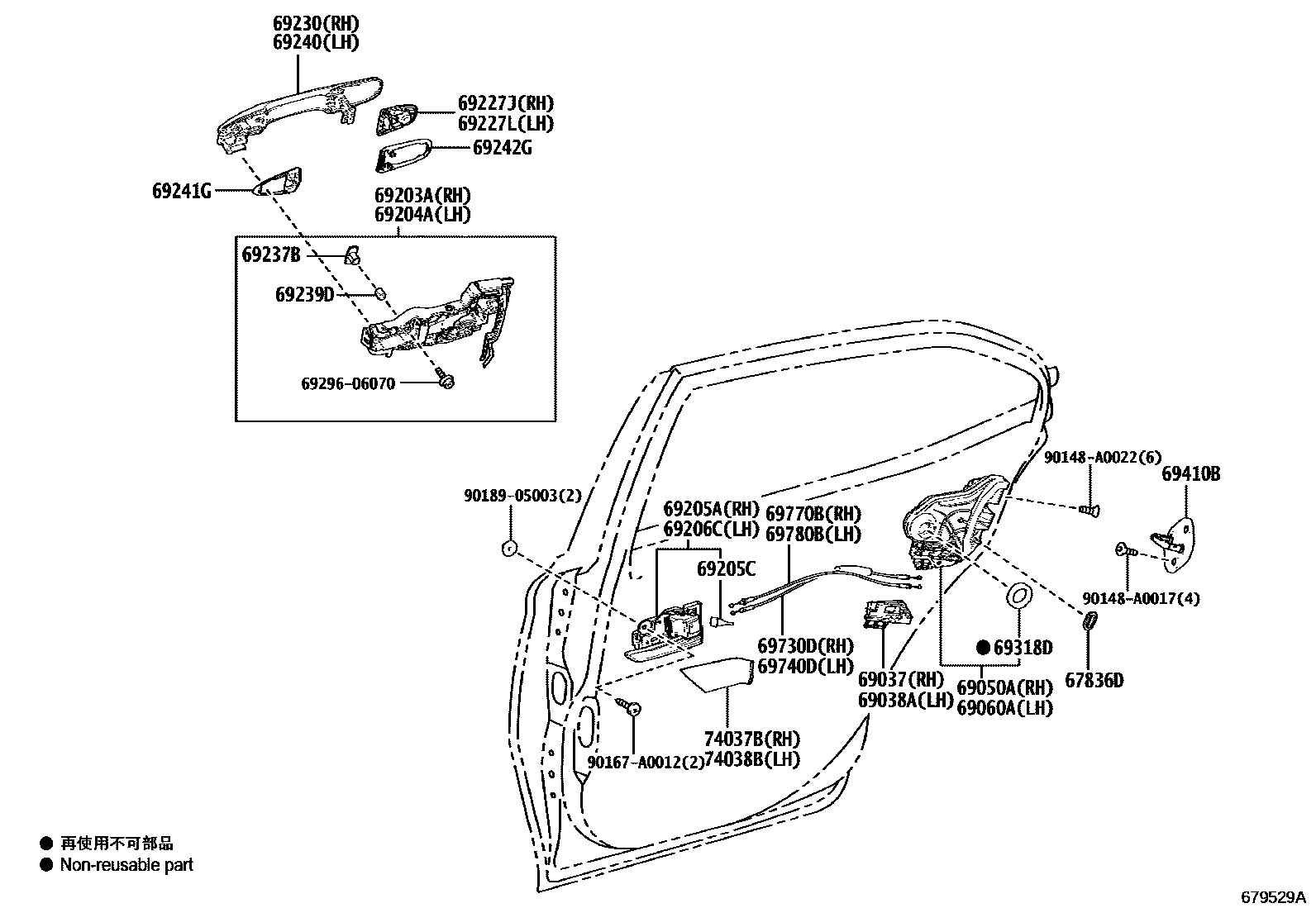

REAR DOOR LOCK & HANDLE

67836DCOVER, REAR DOOR LOCK CHILD PROTECTION

main67836-12040×2iAXVA70,AXVH7#,GSV70201706-201811

69037COVER SUB-ASSY, REAR DOOR LOCK, RH

main69037-02030iAXVA75202003-202010

69038ACOVER SUB-ASSY, REAR DOOR LOCK, LH

main69038-02030iAXVA70,AXVH7#,GSV70201706-202010

69050ALOCK ASSY, REAR DOOR W/MOTOR, RH

main69050-02340iAXVA7#,AXVH7#,GSV70202010

69060ALOCK ASSY, REAR DOOR W/MOTOR, LH

main69060-02340iAXVA70,AXVH7#,GSV70201706-202010

69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH

main69203-06140iAXVA70,AXVH7#,GSV70201706-202010

69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH

main69204-06140iAXVA70,AXVH7#,GSV70201706-202010

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-06120-C0iAXVA70,GSV70..XSE; AXVH70..LE;AXVA70,AXVH71,GSV70..LE,N,SE,XLE201706-202010

BLACK

69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)

main90080-54005×2iAXVA70,AXVH7#,GSV70201706-202010

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69206-06160-C0iAXVA70,GSV70..XSE; AXVH70..LE;AXVA70,AXVH71,GSV70..LE,N,SE,XLE201706-202010

BLACK

69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH

main69227-06100iAXVA70,AXVH7#,GSV70201706-202010

BLACK

69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH

main69227-06100iAXVA70,AXVH7#,GSV70201706-202010

BLACK

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69211-06110-A0iAXVA7#,AXVH7#,GSV70..LE,SE,XLE202010

SUPER WHITE 2,040

main69211-06110-A1iAXVA70,GSV70..XSE; AXVH70..XLE;AXVA70,AXVH71,GSV70..SE,XLE201706-202010

PLATINUM WHITE PEARL MC.,089; PLATINUM WHITE PEARL MC.,089 ,2PS

main69211-06110-B0iAXVA70,AXVH7#,GSV70201706-202010

GRAY M.M.,1H1

main69211-06110-B1iAXVA70,AXVH7#,GSV70..LE,N,SE,XLE; AXVA70,GSV70..XSE201706-202010

SILVER ME.,1J9; SILVER ME.,1J9 ,2PT

main69211-06110-C0iAXVA75..LE,XLE,XSE; AXVA75..SE202003-202010

ATTITUDE BLACK MC.,040 ,1J9 ,218; ATTITUDE BLACK MC.,218

main69211-06110-C1iAXVA75202003-202010

BLACKISH AGEHA GF.,221

main69211-06110-D0iAXVH70..LE,XLE;AXVA70,AXVH71,GSV70201706-202010

RED MC.,3T3

main69211-06110-D1iAXVA70..SE; GSV70..XSE201706-201709

EMOTIONAL RED,2PG ,3T7; EMOTIONAL RED,3T7

main69211-06110-D4iAXVA70,AXVH7#..SE; AXVA70,GSV70..XSE201809-202010

EMOTIONAL RED 2,2SC ,3U5; EMOTIONAL RED 2,3U5

main69211-06110-E0iAXVA75..LE,XLE202003-202010

GRAPHITE ME.,4X7

main69211-06110-J1iAXVA70,AXVH7#,GSV70..LE,SE,XLE,XSE201706-201809

DK.BLUE M.M.,8W7

main69211-06110-J2iAXVA7#,AXVH7#,GSV70202010-202208

DK. BLUE MC.,8X8

main69211-06110-J4iAXVA75..LE,SE,XLE; AXVA75..XSE202003-202010

BLUE ME.,2QQ ,8T7; BLUE ME.,8T7

main69211-06110-J7iAXVA7#,AXVH7#..SE,XSE; GSV70..XSE202108

GRAYISH BLUE,2VV ,8W2; GRAYISH BLUE,8W2

main69211-06110-J8iAXVA7#,AXVH7#,GSV70202208

DK.BLUE,8Q4

main69211-06110-P1iAXVA7#,AXVH7#..LE,SE,XSE; GSV70..XSE202010

ASH GRAY ME.,1K6; ASH GRAY ME.,1K6 ,2UZ

main69211-06110-P4iGSV70..XSE202208

DK.GRAY,2YE

69237BNUT, REAR DOOR HANDLE

main69237-06030×2iAXVA7#,AXVH7#,GSV70202010

69239DBUSH, REAR DOOR HANDLE

main69239-06030×2iAXVA70,AXVH7#,GSV70201706-202010

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69211-06110-A0iAXVA75..LE,SE,XLE202003-202010

SUPER WHITE 2,040

main69211-06110-A1iAXVA70,GSV70..XSE; AXVH70..XLE;AXVA70,AXVH71,GSV70..SE,XLE201706-202010

PLATINUM WHITE PEARL MC.,089; PLATINUM WHITE PEARL MC.,089 ,2PS

main69211-06110-B0iAXVA75202003-202010

GRAY M.M.,1H1

main69211-06110-B1iAXVA7#,AXVH7#,GSV70..LE,SE,XLE; AXVA7#,AXVH70,GSV70..XSE202010

SILVER ME.,1J9; SILVER ME.,1J9 ,2PT

main69211-06110-C0iAXVA7#,AXVH7#,GSV70..LE,XLE,XSE; AXVA7#,AXVH7#..SE202010

ATTITUDE BLACK MC.,040 ,1J9 ,218; ATTITUDE BLACK MC.,218

main69211-06110-C1iAXVA70,AXVH7#,GSV70201706-202010

BLACKISH AGEHA GF.,221

main69211-06110-D0iAXVH70..LE,XLE;AXVA70,AXVH71,GSV70201706-202010

RED MC.,3T3

main69211-06110-D1iAXVA70..SE; GSV70..XSE201706-201709

EMOTIONAL RED,2PG ,3T7; EMOTIONAL RED,3T7

main69211-06110-D4iAXVA75..SE,XSE202003-202010

EMOTIONAL RED 2,3U5

main69211-06110-E0iAXVH70..LE,XLE;AXVA70,AXVH71,GSV70201706-202010

GRAPHITE ME.,4X7

main69211-06110-J1iAXVA70,AXVH7#,GSV70..LE,SE,XLE,XSE201706-201809

DK.BLUE M.M.,8W7

main69211-06110-J2iAXVA7#,AXVH7#,GSV70202010-202208

DK. BLUE MC.,8X8

main69211-06110-J4iAXVA75..LE,SE,XLE; AXVA75..XSE202003-202010

BLUE ME.,2QQ ,8T7; BLUE ME.,8T7

main69211-06110-J7iAXVA7#,AXVH7#..SE,XSE; GSV70..XSE202108

GRAYISH BLUE,2VV ,8W2; GRAYISH BLUE,8W2

main69211-06110-J8iAXVA7#,AXVH7#,GSV70202208

DK.BLUE,8Q4

main69211-06110-P1iAXVA7#,AXVH7#..LE,SE,XSE; GSV70..XSE202010

ASH GRAY ME.,1K6; ASH GRAY ME.,1K6 ,2UZ

main69211-06110-P4iGSV70..XSE202208

DK.GRAY,2YE

69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT

main69241-06080×2iAXVA7#,AXVH7#,GSV70202010

69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR

main69242-06080×2iAXVA75202003-202007

main69242-06170×2iAXVA70,AXVH7#,GSV70; AXVA75202008-202010

69318DSEAL, DOOR LOCK WIRING HARNESS

main69318-AA010×2iAXVA70,AXVH7#,GSV70201706-202010

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-02020×2iAXVA70,AXVH7#,GSV70201706-202010

69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH

main69730-06190iAXVA75202003-202010

69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH

main69730-06190iAXVA75202003-202010

69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH

main69770-06180iAXVA70,AXVH7#,GSV70201706-202010

69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH

main69770-06180iAXVA75202003-202010

74037BCOVER SUB-ASSY, REAR DOOR ARMREST, RH

main74037-06010iAXVA7#,AXVH7#,GSV70202010

74038BCOVER SUB-ASSY, REAR DOOR ARMREST, LH

main74038-06010iAXVA7#,AXVH7#,GSV70202010

6929606070SCREW, DOOR INSIDE HANDLE

main69296-06070

90148A0017

main90148-A0017

90148A0022

main90148-A0022

90167A0012

main90167-A0012

9018905003

main90189-05003

31 parts on this diagram · 1 diagram in section
