INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

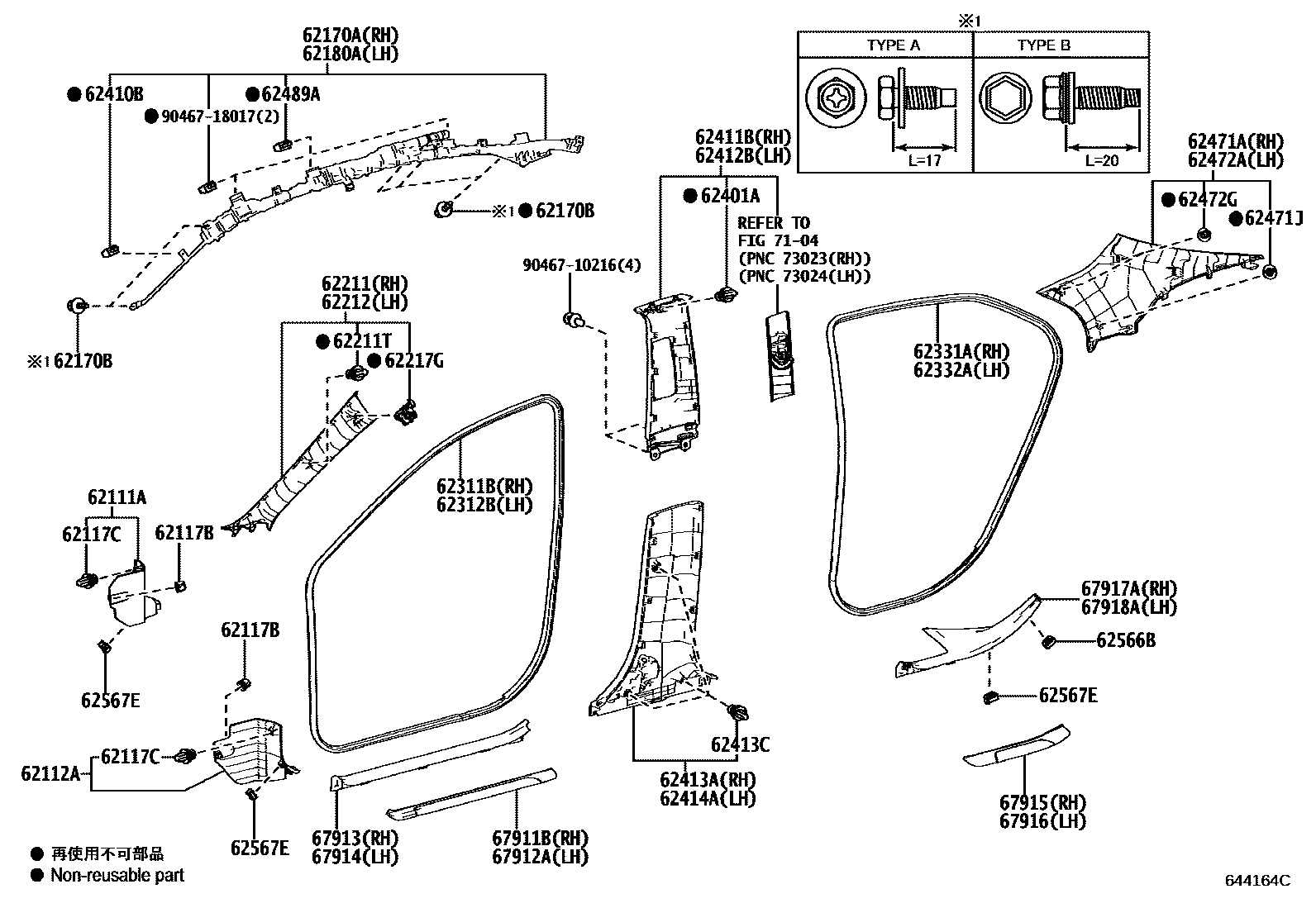

Parts diagram
62111ATRIM SUB-ASSY, COWL SIDE, RH
main62101-06200-B0i201706-202010
NEUTRAL WARM GRAY,TRIM10; NEUTRAL WARM GRAY,TRIM10,4#
main62101-06200-C0i201706-202010
BLACK,TRIM10,2#; BLACK,TRIM10,2#,3#
62112ATRIM SUB-ASSY, COWL SIDE, LH
main62102-06200-B0i202003-202010
NEUTRAL WARM GRAY,TRIM1#; NEUTRAL WARM GRAY,TRIM1#,4#
main62102-06200-C0i201909-202010
BLACK,TRIM2#
62117BCLIP, NO.1(FOR COWL SIDE TRIM)
main90467-A0024×2i202003-202010
62117CCLIP, NO.2(FOR COWL SIDE TRIM)
main90467-A0006×2i201706-202010
62170AAIRBAG ASSY, CURTAIN SHIELD, RH
main62170-06121i201706-201801
main62170-06122i202003-202010
62170BBOLT, W/WASHER
main90080-11628×10i201706-202010
TYPE A:REFER ILLUST.
main90080-11699×10i201706-202010
TYPE B:REFER ILLUST.
62180AAIRBAG ASSY, CURTAIN SHIELD, LH
main62180-06121i201706-201801
main62180-06122i201802-202010
62211GARNISH, FRONT PILLAR, RH
main62210-06300-B3i202003-202010
GRAY,TRIM1#,2#; GRAY,TRIM1#,2#,3#
main62210-06300-E3i202003-202010
NEUTRAL BEIGE,TRIM4#
main62210-06340-B3supersedes 62210-06300-B3i202010
AUDIO-9INCH *DA & JBL & 9SPEAKER,GRAY,TRIM1#,2#; AUDIO-9INCH *DA & JBL & 9SPEAKER,GRAY,TRIM1#,2#,3#; GRAY,TRIM1#,2#; GRAY,TRIM1#,2#,3#
main62210-06340-E3i202010
AUDIO-9INCH *DA & JBL & 9SPEAKER,NEUTRAL BEIGE,TRIM4#; NEUTRAL BEIGE,TRIM4#
62211TCLIP(FOR FRONT PILLAR GARNISH)
main90467-A0006×2i202003-202010
62212GARNISH, FRONT PILLAR, LH
main62220-06300-B3i201706-202010
GRAY,TRIM1#,2#; GRAY,TRIM1#,2#,3#
main62220-06300-E3i202003-202010
NEUTRAL BEIGE,TRIM4#
main62220-06340-B3supersedes 62220-06300-B3i202010
AUDIO-9INCH *DA & JBL & 9SPEAKER,GRAY,TRIM1#,2#; AUDIO-9INCH *DA & JBL & 9SPEAKER,GRAY,TRIM1#,2#,3#; GRAY,TRIM1#,2#; GRAY,TRIM1#,2#,3#
main62220-06340-E3i202010
AUDIO-9INCH *DA & JBL & 9SPEAKER,NEUTRAL BEIGE,TRIM4#; NEUTRAL BEIGE,TRIM4#
62217GCLIP, FRONT PILLAR GARNISH
main62217-06030×2i202311
main62217-24020×2i202003-202010
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
main62311-06210i201706-202010
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
main62312-06210i202010
62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH
main62331-06190i202010
62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH
main62332-06190i201706-202010
62401ACLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)
main90467-10167×2i202010
62410BCLIP
main90467-05164-C0×2i201706-201802
BLACK
main90467-18017×2i202010
62411BGARNISH, CENTER PILLAR, UPPER RH
main62410-06240-B5i201706-202010
GRAY,TRIM1#,2#; GRAY,TRIM1#,2#,3#
main62410-06240-E3i202010
NEUTRAL BEIGE,TRIM4#
62412BGARNISH, CENTER PILLAR, UPPER LH
main62420-06240-B5i201706-202010
GRAY,TRIM1#,2#; GRAY,TRIM1#,2#,3#
main62420-06240-E3i201706-202010
NEUTRAL BEIGE,TRIM4#
62413AGARNISH, CENTER PILLAR, LOWER RH
main62413-06190-B0i202010
NEUTRAL WARM GRAY,TRIM1#; NEUTRAL WARM GRAY,TRIM1#,4#
main62413-06190-C0i202003-202010
BLACK,TRIM2#; BLACK,TRIM2#,3#
62413CCLIP (FOR CENTER LOWER GARNISH)
main90467-A0006×6i202003-202010
62414AGARNISH, CENTER PILLAR, LOWER LH
main62414-06190-B0i201706-202010
NEUTRAL WARM GRAY,TRIM1#; NEUTRAL WARM GRAY,TRIM1#,4#
main62414-06190-C0i201706-202010
BLACK,TRIM2#; BLACK,TRIM2#,3#
62471AGARNISH, ROOF SIDE, INNER RH
main62470-06350-B0i201706-202010
GRAY,TRIM1#,2#; GRAY,TRIM1#,2#,3#
main62470-06350-E0i201706-202010
NEUTRAL BEIGE,TRIM4#
62471JCLIP (FOR ROOF SIDE GARNISH)
main90467-09240×2i201706-202010
62472AGARNISH, ROOF SIDE, INNER LH
main62480-06350-B0i202003-202010
GRAY,TRIM1#,2#; GRAY,TRIM1#,2#,3#
main62480-06350-E0i201706-202010
NEUTRAL BEIGE,TRIM4#
62472GCLIP (FOR ROOF SIDE GARNISH)
main90467-10188×4i202010
62489ACLIP, ROOF SIDE INNER GARNISH
main62489-28010×2i202010
62566BCLAMP, ROCKER PANEL INNER PROTECTER, NO.1
main62566-32010×2i202010
62567ECLAMP, ROCKER PANEL INNER PROTECTOR, NO.2
main62567-33040×2i201706-202010
67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH
main67911-06130i202003-202010
main67911-06131i202404
67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH
main67912-06130i202010-202403
main67912-06131i202404
67913PLATE, FRONT DOOR SCUFF, RH
main67913-06270-B0i201909-202010
NEUTRAL WARM GRAY,TRIM1#; NEUTRAL WARM GRAY,TRIM1#,4#
main67913-06270-C0i202003-202010
BLACK,TRIM2#; BLACK,TRIM2#,3#
67914PLATE, FRONT DOOR SCUFF, LH
main67914-06260-B0i202003-202010
NEUTRAL WARM GRAY,TRIM1#; NEUTRAL WARM GRAY,TRIM1#,4#
main67914-06260-C0i202010
BLACK,TRIM2#; BLACK,TRIM2#,3#
67915PLATE, REAR DOOR SCUFF, OUTSIDE RH
main67915-06110i201706-202010
main67915-06111i202404
67916PLATE, REAR DOOR SCUFF, OUTSIDE LH
main67916-06120i201706-202010
main67916-06121i202404
67917APLATE, REAR DOOR SCUFF, RH
main67917-06280-B0i201706-202010
NEUTRAL WARM GRAY,TRIM10; NEUTRAL WARM GRAY,TRIM10,4#
main67917-06280-C0i202003-202010
BLACK,TRIM2#; BLACK,TRIM2#,3#
main67917-06290-B0i201706-202010
NEUTRAL WARM GRAY,TRIM10; NEUTRAL WARM GRAY,TRIM10,4#
main67917-06290-C0i202010
BLACK,TRIM2#; BLACK,TRIM2#,3#
67918APLATE, REAR DOOR SCUFF, LH
main67918-06280-B0i201706-202010
NEUTRAL WARM GRAY,TRIM10; NEUTRAL WARM GRAY,TRIM10,4#
main67918-06280-C0i201706-202010
BLACK,TRIM10,2#; BLACK,TRIM10,2#,3#
main67918-06290-B0i202010
NEUTRAL WARM GRAY,TRIM1#; NEUTRAL WARM GRAY,TRIM1#,4#
main67918-06290-C0i202010
BLACK,TRIM2#; BLACK,TRIM2#,3#
7104SEAT BELT & CHILD RESTRAINT SEAT
→ Go to FIG 71-04
9046710216
main90467-10216
9046718017
main90467-18017

40 parts on this diagram · 3 diagrams in section
