MAT & CARPET

0001 1 0002 1

55213BPAD, DASH PANEL INSULATOR, NO.1

main55213-06110iAXVA70,AXVH7#,GSV70201706-201809

main55213-06111iAXVA70,AXVH7#,GSV70201809-202010

55214CPAD, DASH PANEL INSULATOR, NO.2

main55214-06140iAXVA70,AXVH7#,GSV70201706-202010

55215DPAD, DASH PANEL INSULATOR, NO.3

main55215-06030iAXVA70,AXVH7#,GSV70202010

main55215-06040iAXVA75202010

58510DCARPET ASSY, FLOOR, FRONT

main58510-06680-B0iAXVA75..LE,XLE; AXVA75..SE,XSE202010

NEUTRAL WARM GRAY,TRIM1#; NEUTRAL WARM GRAY,TRIM1#,4#

main58510-06680-C0iAXVA75..LE,SE,XLE; AXVA75..XSE202003-202010

BLACK,TRIM2#; BLACK,TRIM2#,3#

main58510-06700-B2iAXVA70,GSV70..LE,XLE; AXVA70,GSV70..N,SE,XSE201706-202003

NEUTRAL WARM GRAY,TRIM1#; NEUTRAL WARM GRAY,TRIM1#,4#

main58510-06700-C1iAXVA70,GSV70..LE,N,SE,XLE; AXVA70,GSV70..XSE201706-202003

BLACK,TRIM2#; BLACK,TRIM2#,3#

main58510-06701-B2iAXVA70,GSV70..LE,XLE; AXVA70,GSV70..SE,XSE202010

NEUTRAL WARM GRAY,TRIM1#; NEUTRAL WARM GRAY,TRIM1#,4#

main58510-06701-C1iAXVA70,GSV70..LE,SE,XLE; AXVA70,GSV70..XSE202003-202010

BLACK,TRIM2#; BLACK,TRIM2#,3#

main58510-06710-B2iAXVH7#..LE,XLE; AXVH7#..SE201706-202003

NEUTRAL WARM GRAY,TRIM1#; NEUTRAL WARM GRAY,TRIM1#,4#

main58510-06710-C1iAXVH7#201706-202003

BLACK,TRIM2#

main58510-06711-B2iAXVH7#..LE,XLE; AXVH7#..SE202003-202010

NEUTRAL WARM GRAY,TRIM1#; NEUTRAL WARM GRAY,TRIM1#,4#

main58510-06711-C1iAXVH7#202003-202010

BLACK,TRIM2#

58511MAT, FLOOR, FRONT

main58511-06040iAXVA75202003-202010

main58511-06100iAXVA70,GSV70201706-201809

main58511-06101iAXVA70,GSV70201809-202003

main58511-06102iAXVA70,GSV70202003-202010

main58511-06110iAXVH7#201706-201809

main58511-06111iAXVH7#201809-202003

main58511-06112iAXVH7#202003-202010

58511ECLIP(FOR FRONT FLOOR MAT)

main90467-07042-C4iAXVA70,AXVH7#,GSV70201706-201907

BLACK

58521BHOOK, FLOOR CARPET

main58521-06130×8iAXVA75202003-202010

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-07049-23×4iAXVA70,GSV70; AXVH7#201706-201806

BLACK

main90467-07161-C1×4iAXVA7#,GSV70; AXVH7#202010

BLACK

58543BBRACKET, FLOOR CARPET, RH

main58543-06150iAXVA75202003-202010

58544BBRACKET, FLOOR CARPET, LH

main58544-06160iAXVA7#,AXVH7#,GSV70202010

58565BCLIP

main90467-A0016-C3×2iAXVA75202003-202010

BLACK

58694BPLATE, MAT SET, UPPER

main58694-33010×2iAXVA7#,AXVH7#,GSV70202010

58698CPLATE, MAT SET, LOWER

main58698-33010×2iAXVA70,AXVH7#,GSV70201706-202010

9046713079

main90467-13079

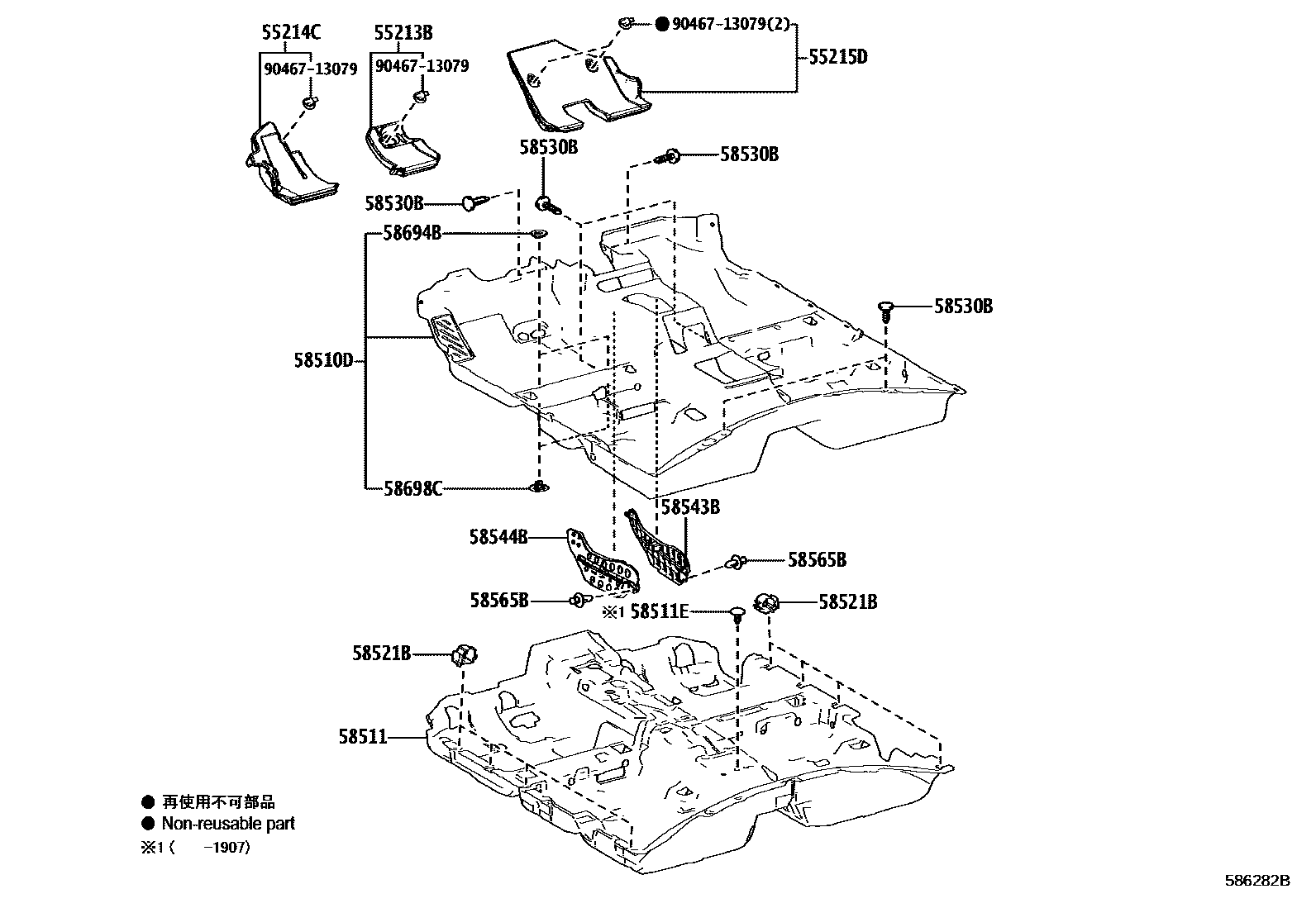

14 parts on this diagram · 2 diagrams in section
