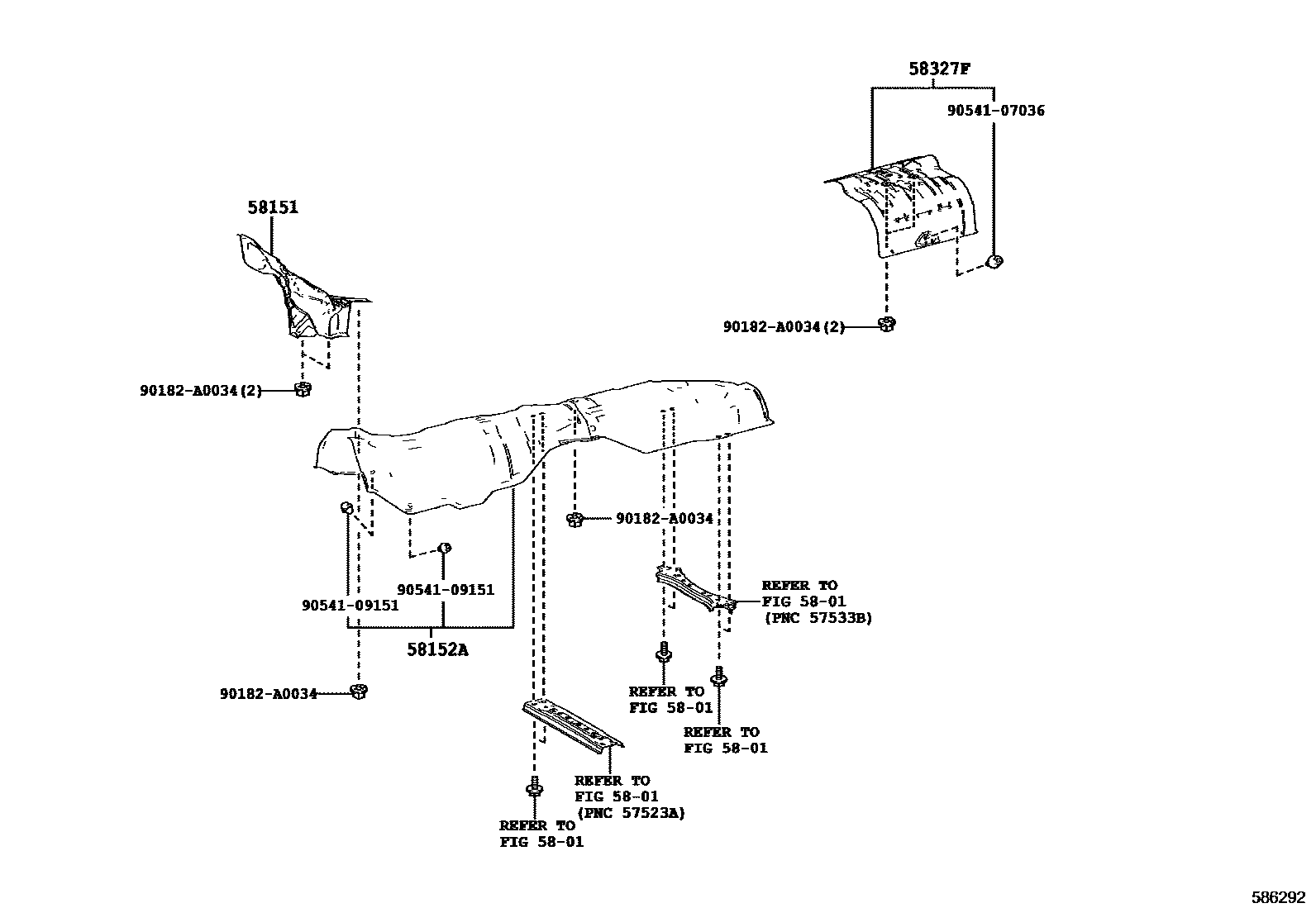

FLOOR INSULATOR

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-06010iAXVA70,AXVH7#202010

main58151-06050iAXVA75202010

58152AINSULATOR, FRONT FLOOR HEAT, NO.1 LOWER

main58152-06160iAXVA70,AXVH7#,GSV70201706-202010

main58152-06161iAXVA70,AXVH7#,GSV70202102

main58152-06200iAXVA75202003-202010

58327FINSULATOR, MAIN MUFFLER HEAT, RH

main58041-06020iAXVA70,GSV70201706-202010

main58041-06030iAXVA75202003-202010

90182A0034

main90182-A0034

9054107036

main90541-07036

9054109151

main90541-09151

7 parts on this diagram · 6 diagrams in section
