46422ACAP, PARKING BRAKE CABLE, CASING

main46422-33020×2i201801-202010

main46422-78010×2i201706-201712

55119BEXTENSION, DASH PANEL, LH

main55119-06010i201706-202010

55239FPLATE, DASH PANEL INSULATOR, NO.3

main55239-06050×2i201706-202010

5701HOLE PLUG

→ Go to FIG 57-01

57043AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH

main57043-06060i201706-202010

57044AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH

main57044-06060i201706-202010

57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH

main57053-06040i201706-202010

main57053-06050i202003-202010

57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH

main57054-06090i202003-202010

57405DRAIL SUB-ASSY, FLOOR SIDE, CENTER RH

main57405-06010i201706-202010

57406CRAIL SUB-ASSY, FLOOR SIDE, CENTER LH

main57406-06010i201706-202010

main57406-06060i202309

57419GREINFORCEMENT, FRONT FLOOR UNDER, REAR RH

main57419-06090i201706-202010

57429REINFORCEMENT, FRONT FLOOR UNDER, REAR LH

main57419-06090i202003-202010

57465AGUSSET, CENTER FLOOR CROSSMEMBER, RH

main57465-06010i201706-202010

57466AGUSSET, CENTER FLOOR CROSSMEMBER, LH

main57466-06010i202003-202010

57475DPLATE, FRONT FLOOR CROSSMEMBER, RH

main57475-06060i201706-202010

main57475-06100i202003-202010

57476PLATE, FRONT FLOOR CROSSMEMBER, LH

main57476-06050i201706-202010

57511REINFORCEMENT, FRONT FLOOR, CENTER

main57511-06060i201706-202010

57523ABRACE, CENTER FLOOR CROSSMEMBER

main57523-06010i201706-202010

TRD PACKAGE

main57523-06050i202003-202010

57533BBRACE, FRONT FLOOR, CENTER

main57533-06070i201706-202010

TRD PACKAGE

main57533-06090i202003-202010

57609CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.5

main57609-06040i201706-202010

57805BREINFORCEMENT SUB-ASSY, BELT ANCHOR, RH

main57805-06030i201706-202010

main57805-06040i201706-202010

main57805-06110i202003-202010

57806REINFORCEMENT SUB-ASSY, BELT ANCHOR, LH

main57805-06040i201706-202010

main57806-06030i202010

main57806-06070i202003-202010

58088BRACKET SUB-ASSY, FLOOR SHIFT LINK

main58088-06010i201706-201803

main58088-06060i202003-202010

58105BPANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB

main58105-06060i201706-202010

58109BRACKET SUB-ASSY, INSTRUMENT PANEL BRACE MOUNTING

main58109-06010i201706-202010

58111APAN, FRONT FLOOR, RH

main58111-06140i201706-201912

main58111-06141i202001-202010

main58111-06191i202003-202010

58112CPAN, FRONT FLOOR, LH

main58112-06010i201706-201912

main58112-06011i202001-202010

58113APANEL, FRONT FLOOR, CENTER

main58113-06010i202010

main58113-06070i202003-202010

58117AREINFORCEMENT, FRONT FLOOR SIDE, RH

main58117-06010i201706-202010

58118CREINFORCEMENT, FRONT FLOOR SIDE, LH

main58117-06010i202003-202010

58127AREINFORCE, FRONT CROSS TO FRONT PANEL MEMBER, RH

main58127-06070i202003-202010

main58127-33030i201706-202010

58128AREINFORCEMENT, FRONT CROSS TO FRONT PANEL MEMBER, LH

main58128-06070i202010-202107

main58128-06071i202108

main58128-33010i201706-202010

58129FCLAMP, SHIFT & SELECT CABLE

main58129-06010i201706-202010

58136COVER, FRONT FLOOR HOLE

main58136-06050×2i202003-202010

58136BCOVER, CENTER FLOOR HOLE

main58136-06070×2i201706-202010

58177AEXTENSION, FRONT FLOOR PANEL, RH

main58177-06010i202010

main58177-06050i202003-202010

58189REINFORCEMENT, EXHAUST PIPE CLAMP BRACKET

main58189-06140i201706-202010

58202APAN SUB-ASSY, CENTER FLOOR, FRONT

main58202-06060i202010

main58202-06100i201706-202010

main58202-06140i202003-202010

58203AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, RH

main58203-06020i201706-202010

58204AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, LH

main58204-06050i201706-202010

58211HPAN, CENTER FLOOR

main58211-06230i201706-201812

main58211-06231i201901-202010

main58211-06250i201706-202010

main58211-06330i202003-202010

58301GPAN SUB-ASSY, REAR FLOOR

main58301-06904i202010

main58301-06905i201706-202010

main58301-06907i202003-202010

58303JREINFORCE SUB-ASSY, REAR BUMPER ARM SUPPORT, RH

main58303-06030i201706-202010

58304JREINFORCE SUB-ASSY, REAR BUMPER ARM SUPPORT, LH

main58304-06050i201706-202010

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-06220i201706-202004

main58307-06221i202010

58315CEXTENSION, REAR FLOOR SIDE PANEL, RH

main58315-06020i202003-202010

58316CEXTENSION, REAR FLOOR SIDE PANEL, LH

main58316-06040i201706-202010

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-06080i202010

main58325-06090i201706-202010

main58325-06100×2i202003-202010

58385DBRACKET, REAR BUMPER COVER

main58385-06150×2i201706-202010

9008011610

main90080-11610

9008011699

main90080-11699

9008011710

main90080-11710

90105A0189

main90105-A0189

90119A0120

main90119-A0120

90119A0444

main90119-A0444

9017908261

main90179-08261

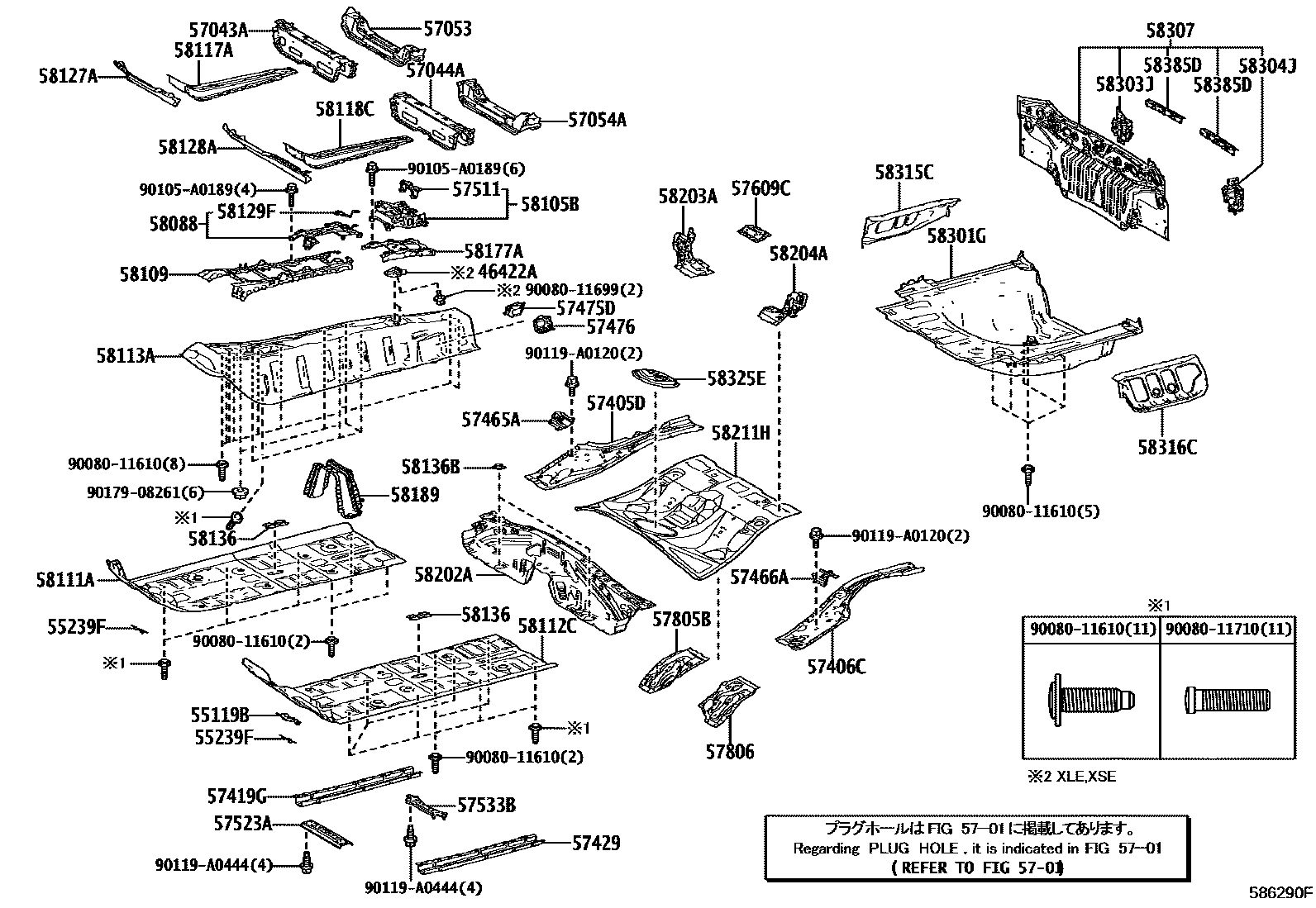

FLOOR PAN & LOWER BACK PANEL
