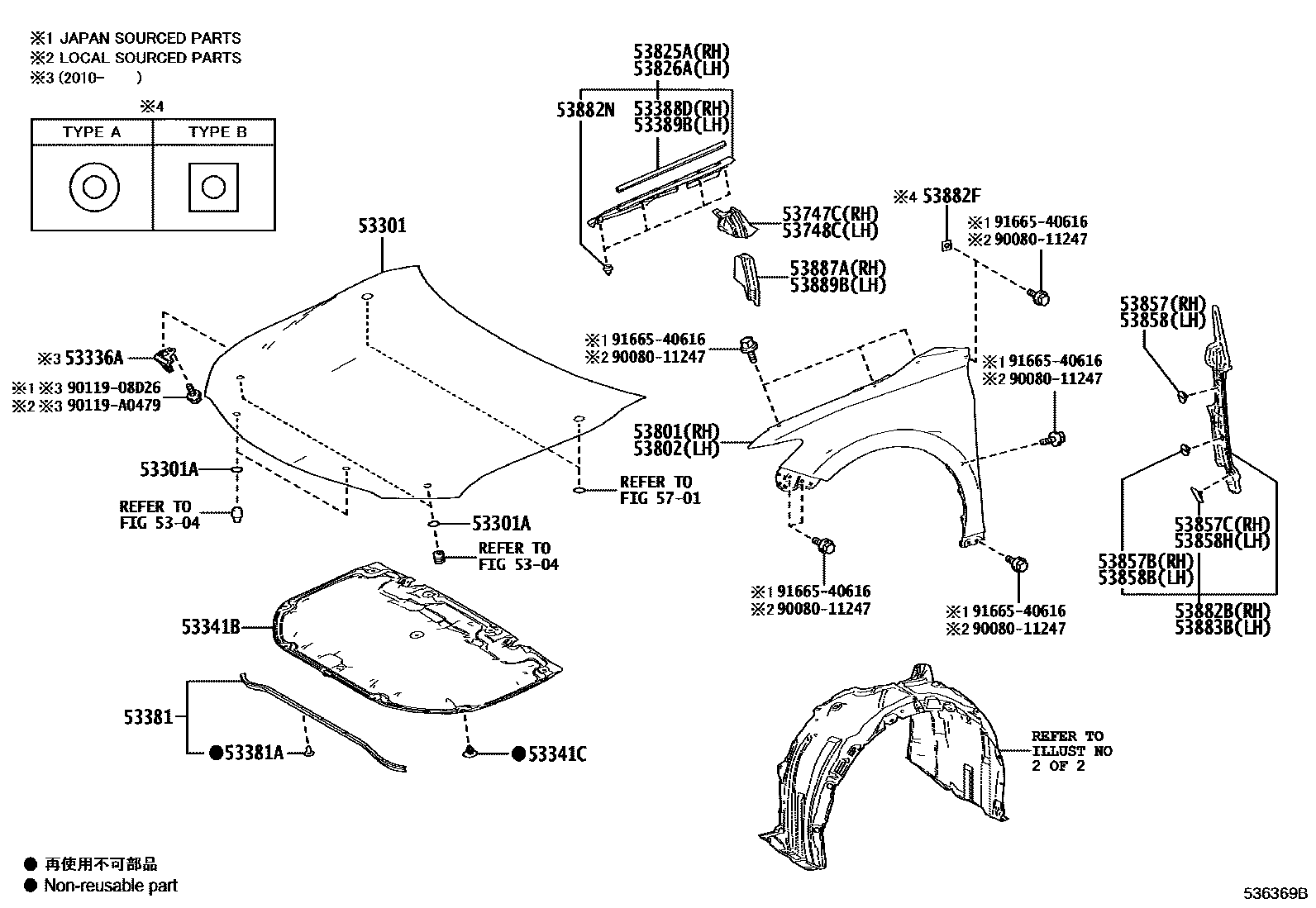

HOOD & FRONT FENDER
5304FRONT FENDER APRON & DASH PANEL
53301HOOD SUB-ASSY
53301APLUG, HOLE(FOR HOOD)
53336ABRACKET, HOOD STAY
53341BINSULATOR, HOOD
53341CCLIP(FOR HOOD INSULATOR)
53381SEAL, HOOD TO RADIATOR SUPPORT
53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
53388DSEAL, HOOD TO FRONT FENDER, RH
53389BSEAL, HOOD TO FRONT FENDER, LH
53747CPLATE, AIR SEALED, RH
53748CPLATE, AIR SEALED, LH
53801FENDER SUB-ASSY, FRONT RH
53802FENDER SUB-ASSY, FRONT LH
53825APROTECTOR, FRONT FENDER, UPPER RH
53826APROTECTOR, FRONT FENDER, UPPER LH
53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH
53857BRETAINER, FRONT WHEEL OPENING EXTENSION, RH
53857CRETAINER, FRONT WHEEL OPENING EXTENSION, RH
53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH
53858BRETAINER, FRONT WHEEL OPENING EXTENSION, LH
53858HRETAINER, FRONT WHEEL OPENING EXTENSION, LH
53882BSEAL, FRONT FENDER, RH
53882FSEAL, FRONT FENDER
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
53882NCLIP(FOR FRONT FENDER SEAL)
53883BSEAL, FRONT FENDER, LH
53887ASEAL, FRONT FENDER SPLASH SHIELD, NO.1
53889BSEAL, FRONT FENDER SPLASH SHIELD, LH NO.2
5701HOLE PLUG
9008011247
main90080-11247
9011908D26
main90119-08D26
90119A0479
main90119-A0479
9166540616
main91665-40616
33 parts on this diagram · 2 diagrams in section
