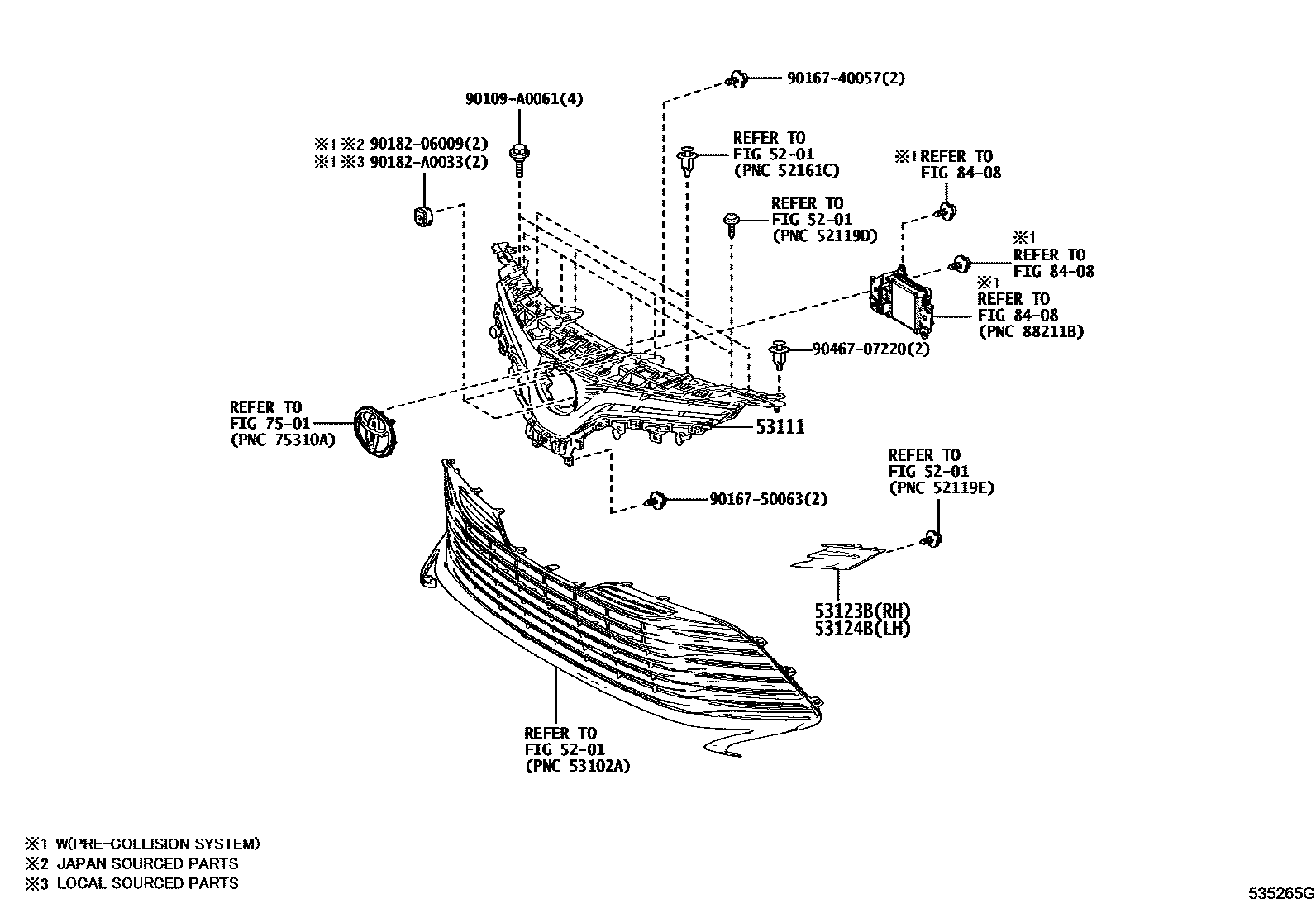

RADIATOR GRILLE

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

53111GRILLE, RADIATOR

main53101-06A70i201706-202010

main53101-06E10i201706-202010

main53101-06E30i201706-202010

main53111-06B60i202010

NO PAINT REQ.

main53111-06C50i202010

NO PAINT REQ.

main53101-06A90i201706-201809

NO PAINT REQ.,DRIVER ASSIST PACKAGE&AUDIO-8INCH DISPLAY & CD & 9SPEAKER&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT); NO PAINT REQ.,DRIVER ASSIST PACKAGE&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT)

53123BMOULDING, RADIATOR GRILLE SIDE, RH

main53123-06070i201706-202010

main53123-06110i202003-202010

53124BMOULDING, RADIATOR GRILLE SIDE, LH

main53124-06050i201706-202010

main53124-06150i201706-202010

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

8408CRUISE CONTROL (AUTO DRIVE)

→ Go to FIG 84-08

90109A0061

main90109-A0061

9016740057

main90167-40057

9016750063

main90167-50063

9018206009

main90182-06009

90182A0033

main90182-A0033

9046707220

main90467-07220

12 parts on this diagram · 5 diagrams in section
