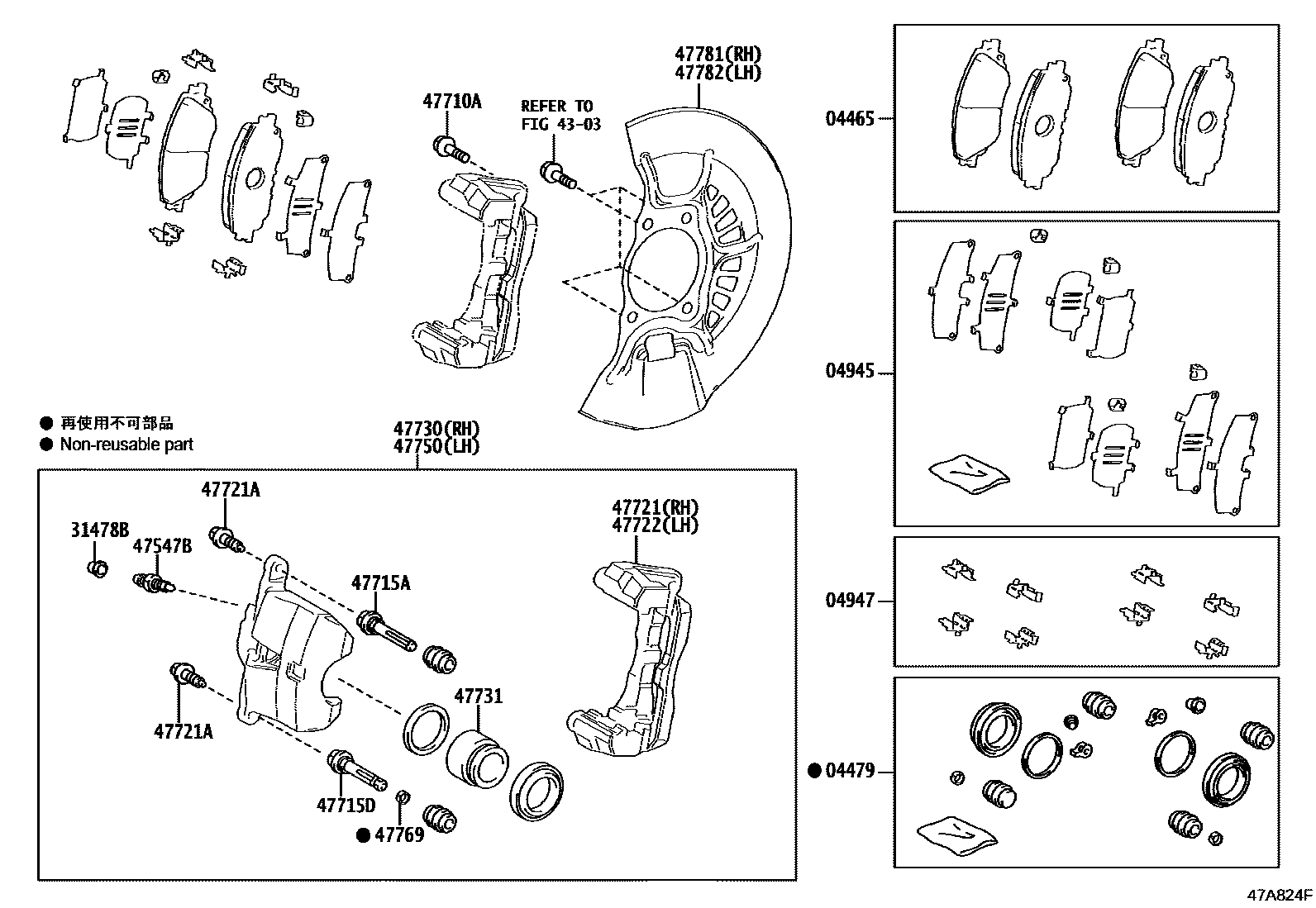

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1TRD PACKAGE

04465PAD KIT, DISC BRAKE, FRONT

main04465-06170iAXVA75;AXVA70..SE,XSE202301

MARK NBK D6504H

main04465-0E060iAXVA75;AXVA70..SE,XSE201706-202302

MARK NBK D6994H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-0E060iAXVA70,AXVH7#,GSV70201706-201801

sub04478-0E061

main04478-0E061iAXVA70,AXVH7#,GSV70201801-202010

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-0E070iAXVA70,AXVH7#,GSV70201706-201801

sub04945-0E071

main04945-0E071iAXVA70,AXVH7#,GSV70201801-202010

04947FITTING KIT, DISC BRAKE, FRONT

main04947-0E030iAXVA70,AXVH7#,GSV70201706-201808

main04947-0E031iAXVA70,AXVH7#,GSV70201808-202010

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iAXVA70,AXVH7#,GSV70201706-202010

4303

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12130iAXVA70,AXVH7#,GSV70201706-202010

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90080-10067iAXVA70,AXVH7#,GSV70201706-202010

*12-1.25PX29.5-23

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-04080iAXVA70,AXVH7#,GSV70201706-202406

main47715-08040iAXVA7#,AXVH7#,GSV70202406

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-33340iAXVA75201706-202010

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-06321iAXVA70,AXVH7#,GSV70201706-201808

main47721-06322iAXVA70,AXVH7#,GSV70201808-202010

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90016-AA103iAXVA70,AXVH7#,GSV70201706-202010

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-06321iAXVA70,AXVH7#,GSV70201706-201808

main47722-06322iAXVA70,AXVH7#,GSV70201808-202010

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-06320iAXVA70,AXVH7#,GSV70201706-201808

main47730-06321iAXVA70,AXVH7#,GSV70201808-202010

47731PISTON, FRONT DISC BRAKE

main47731-06320iAXVA70,AXVH7#,GSV70201706-202010

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-06320iAXVA70,AXVH7#,GSV70201706-201808

main47750-06321iAXVA70,AXVH7#,GSV70201808-202010

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-50010iAXVA70,AXVH7#,GSV70201706-202010

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-06180iAXVA70,AXVH7#,GSV70201706-202010

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-06180iAXVA70,AXVH7#,GSV70201706-202010

19 parts on this diagram · 2 diagrams in section
