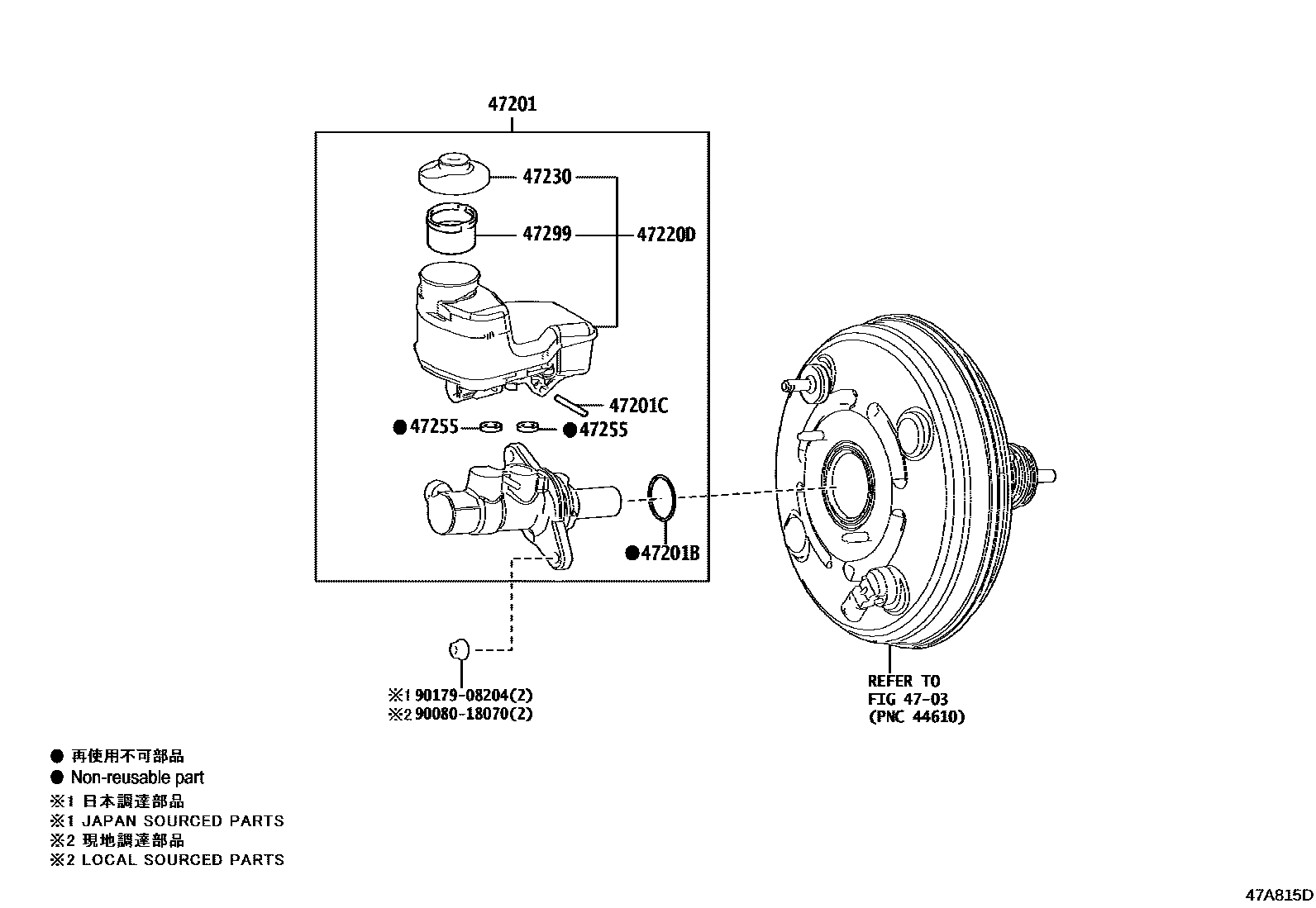

BRAKE MASTER CYLINDER

0001 1 0002 1

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-06510iAXVA7#,GSV70202010

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iAXVA75202003-202010

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iAXVA7#,GSV70202010

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-06260iAXVA70,GSV70201706-202010

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-01031iAXVA70,GSV70201706-202010

main47230-33330iAXVH7#202002-202008

main47230-47090iAXVH7#202008-202010

47255GROMMET, MASTER CYLINDER RESERVOIR

main90029-48001×2iAXVA70,GSV70201706-202010

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iAXVA70,GSV70201706-202010

9008018070

main90080-18070

9017908204

main90179-08204

10 parts on this diagram · 2 diagrams in section
