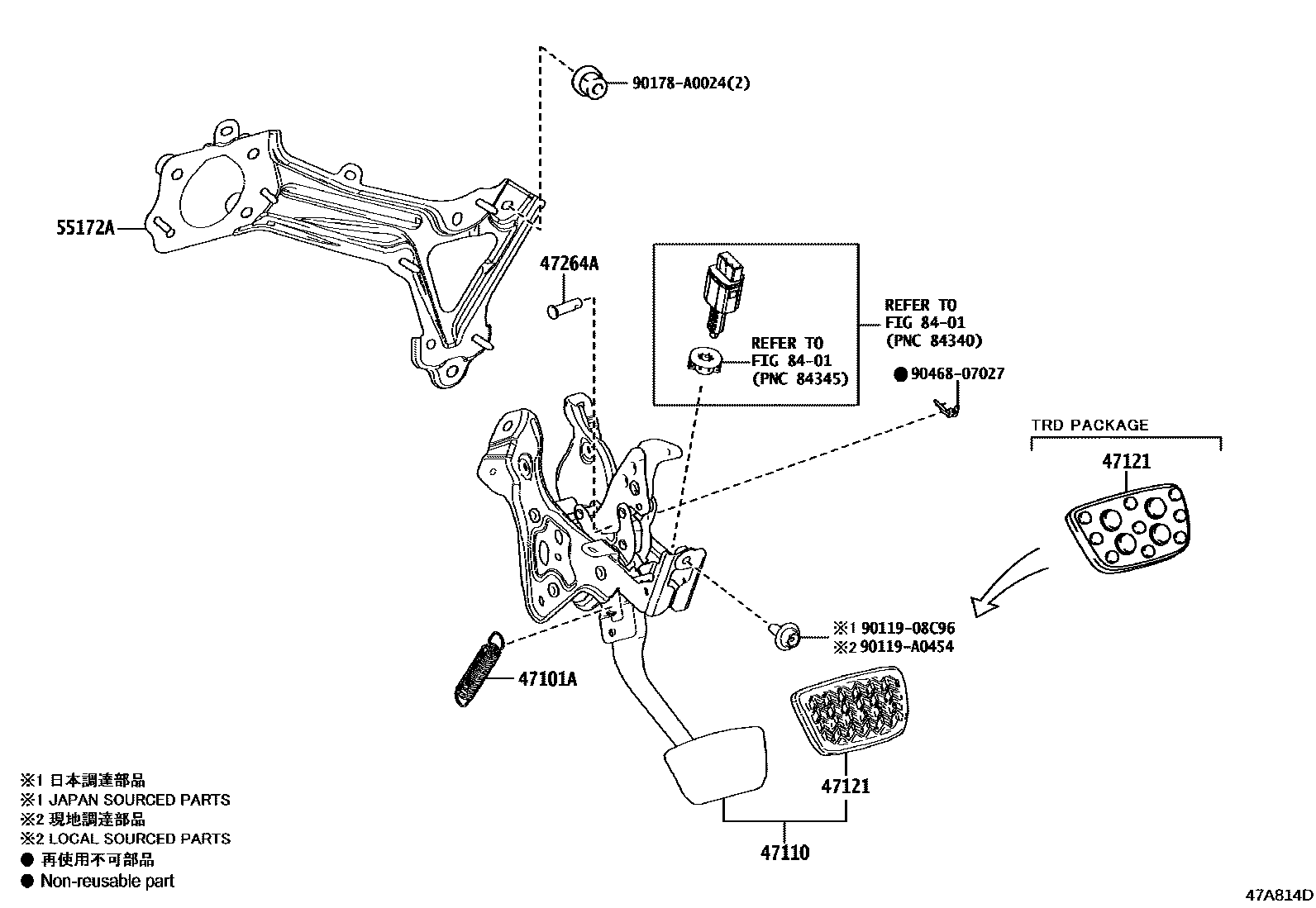

BRAKE PEDAL & BRACKET

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-12046iAXVA70,AXVH7#,GSV70201706-202010

main90506-A0012iGSV70..XSE201909-202010

TRD PACKAGE

main90507-A0003iGSV70..XSE202201

TRD PACKAGE

47110SUPPORT ASSY, BRAKE PEDAL

main47110-06310iAXVA7#,GSV70202010-202108

main47110-06311iAXVA7#,GSV70202109

main47110-06320iAXVH7#202010-202108

main47110-06321iAXVH7#202109

main47110-07050iGSV70..XSE201909-202010

TRD PACKAGE

main47110-07051iGSV70..XSE202109

TRD PACKAGE

47121PAD, BRAKE PEDAL

main47121-48010iAXVA70,AXVH7#,GSV70201706-202010

main47121-62010iAXVA7#,AXVH7#,GSV70202109

main47121-34010iGSV70..XSE202109

TRD PACKAGE

main47121-48020iGSV70..XSE201909-202010

TRD PACKAGE

47264APIN(FOR PUSH ROD)

main90240-08078iAXVA70,AXVH7#,GSV70201709-202010

main90240-08082iAXVA70,AXVH7#,GSV70201706-201708

55172ABASE, BRAKE PEDAL SUPPORT

main55172-06070iAXVA70,AXVH7#,GSV70201910-202010

(L)

main55172-33040iAXVA75202003-202010

(J)

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011908C96

main90119-08C96

90119A0454

main90119-A0454

90178A0024

main90178-A0024

9046807027

main90468-07027

10 parts on this diagram · 1 diagram in section
