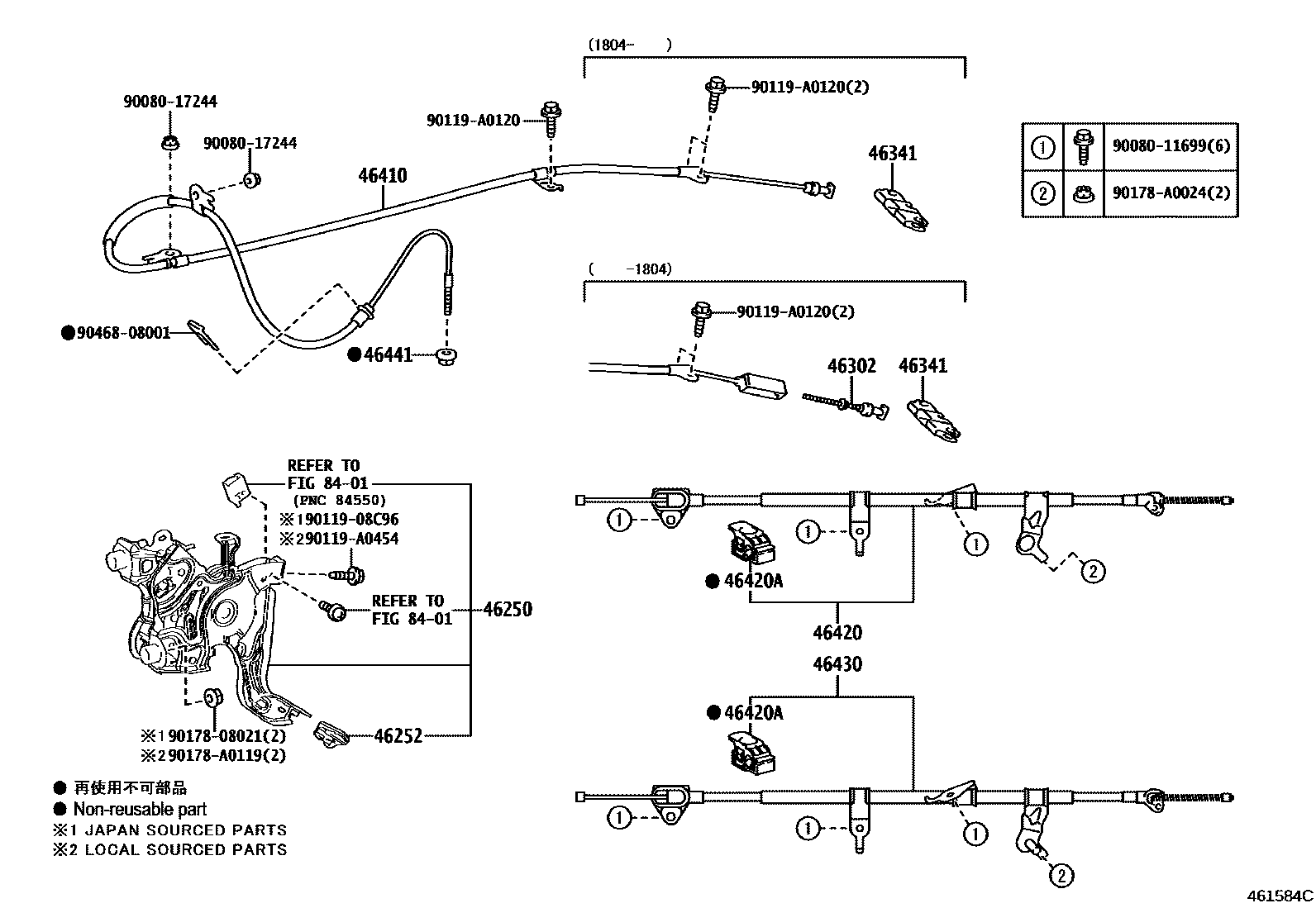

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1

46250PEDAL ASSY, PARKING BRAKE W/O CABLE

main46250-06010iAXVA70..LE,N,SE201706-202010

46252PAD, PARKING PEDAL

main46252-06030iAXVA70..LE,N,SE201706-202010

46302ROD SUB-ASSY, PARKING BRAKE PULL, NO.1

main46302-06010iAXVA70..LE,N,SE201706-201804

46341EQUALIZER, PARKING BRAKE

main46341-33030iAXVA70..LE,SE201706-202010

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-06170iAXVA70..LE,N,SE201706-201804

main46410-06171iAXVA70..LE,N,SE201804-202010

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-06230iAXVA70..LE,N,SE201706-202010

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main46402-02020iAXVA70..LE,SE201706-202010

RH

main46402-06010iAXVA70..LE,N,SE201706-202010

LH

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-06190iAXVA70..LE,N,SE201706-202010

46441NUT, WIRE ADJUSTING, NO.1

main90177-06003iAXVA70..LE,N,SE201706-202010

8401

9008011699

main90080-11699

9008017244

main90080-17244

9011908C96

main90119-08C96

90119A0120

main90119-A0120

90119A0454

main90119-A0454

9017808021

main90178-08021

90178A0024

main90178-A0024

90178A0119

main90178-A0119

9046808001

main90468-08001

19 parts on this diagram · 3 diagrams in section
