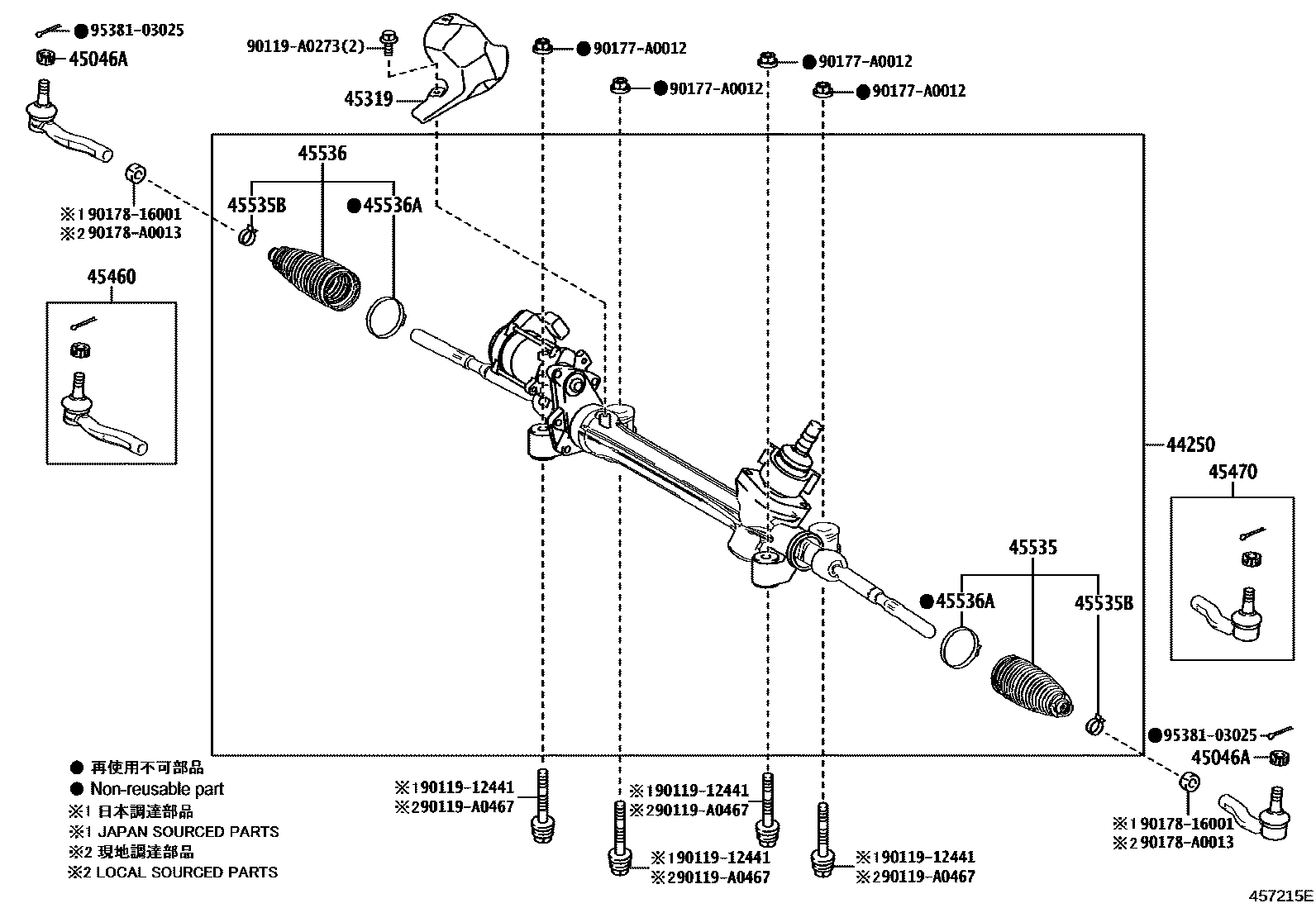

FRONT STEERING GEAR & LINK
44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)
main44250-06370supersedes 44250-06380iAXVA70,AXVH70..LE,N; AXVA70,AXVH71,GSV70..XLE; AXVA70..SE; AXVA70..XLE201706-201908
MEXICO SPEC&TIRE & DISC WHEEL-215/55R17 7.5J ALUMINUM, SUMMER TIRE; TIRE & DISC WHEEL-215/55R17 7.5J ALUMINUM, SUMMER TIRE; TIRE & DISC WHEEL-215/55R17 7.5J ALUMINUM,ALL SEASON TIRE
main44250-06371supersedes 44250-06381iAXVA70,AXVH7#,GSV70..XLE; AXVA70,AXVH70..LE,N; AXVA70,AXVH71..XLE; AXVA70..SE201909-202002
MEXICO SPEC&TIRE & DISC WHEEL-215/55R17 7.5J ALUMINUM, SUMMER TIRE; TIRE & DISC WHEEL-215/55R17 7.5J ALUMINUM, SUMMER TIRE; TIRE & DISC WHEEL-215/55R17 7.5J ALUMINUM,ALL SEASON TIRE
main44250-06372supersedes 44250-06382iAXVA70,AXVH7#,GSV70..XLE; AXVA70,AXVH70..LE,N; AXVA70,AXVH71..XLE; AXVA70..SE; AXVA75..LE; AXVA75..XLE202003-202010
MEXICO SPEC&TIRE & DISC WHEEL-215/55R17 7.5J ALUMINUM, SUMMER TIRE; TIRE & DISC WHEEL-215/55R17 7.5J ALUMINUM, SUMMER TIRE; TIRE & DISC WHEEL-215/55R17 7.5J ALUMINUM,ALL SEASON TIRE
main44250-06373supersedes 44250-06383iAXVA7#,AXVH7#,GSV70..XLE; AXVA7#,AXVH70..LE; AXVA70..SE; AXVH70..XLE202010
MEXICO SPEC&TIRE & DISC WHEEL-215/55R17 7.5J ALUMINUM, SUMMER TIRE; TIRE & DISC WHEEL-215/55R17 7.5J ALUMINUM, SUMMER TIRE; TIRE & DISC WHEEL-215/55R17 7.5J ALUMINUM,ALL SEASON TIRE
MEXICO SPEC&TIRE & DISC WHEEL-235/45R18 8J ALUMINUM, SUMMER TIRE
MEXICO SPEC&TIRE & DISC WHEEL-235/45R18 8J ALUMINUM, SUMMER TIRE
MEXICO SPEC&TIRE & DISC WHEEL-235/45R18 8J ALUMINUM, SUMMER TIRE
MEXICO SPEC&NIGHTSHADE EDITION&TIRE & DISC WHEEL-235/45R18 8J BLACK SUMMER TIRE; MEXICO SPEC&TIRE & DISC WHEEL-235/45R18 8J ALUMINUM, SUMMER TIRE
TIRE & DISC WHEEL-215/55R17 7.5J ALUMINUM,ALL SEASON TIRE
TIRE & DISC WHEEL-215/55R17 7.5J ALUMINUM,ALL SEASON TIRE
TIRE & DISC WHEEL-215/55R17 7.5J ALUMINUM,ALL SEASON TIRE
TIRE & DISC WHEEL-215/55R17 7.5J ALUMINUM,ALL SEASON TIRE
TRD PACKAGE&TIRE & DISC WHEEL-235/40R19 8.5J IS45TRD AS; TRD PACKAGE&TIRE & DISC WHEEL-235/40R19 8J ALUMINUM (ILA)
TRD PACKAGE&TIRE & DISC WHEEL-235/40R19 8.5J IS45TRD AS; TRD PACKAGE&TIRE & DISC WHEEL-235/40R19 8J ALUMINUM (ILA)
45046ANUT, CASTLE(FOR TIE ROD END)
45319INSULATOR, STEERING GEAR HEAT
45460ROD ASSY, TIE, RH
45470ROD ASSY, TIE, LH
45535BOOT, STEERING RACK, NO.1
45535BCLIP(FOR STEERING RACK BOOT)
45536BOOT, STEERING RACK, NO.2
45536ACLAMP(FOR STEERING RACK BOOT NO.2)
9011912441
main90119-12441
90119A0273
main90119-A0273
90119A0467
main90119-A0467
90177A0012
main90177-A0012
9017816001
main90178-16001
90178A0013
main90178-A0013
9538103025
main95381-03025
16 parts on this diagram · 3 diagrams in section
