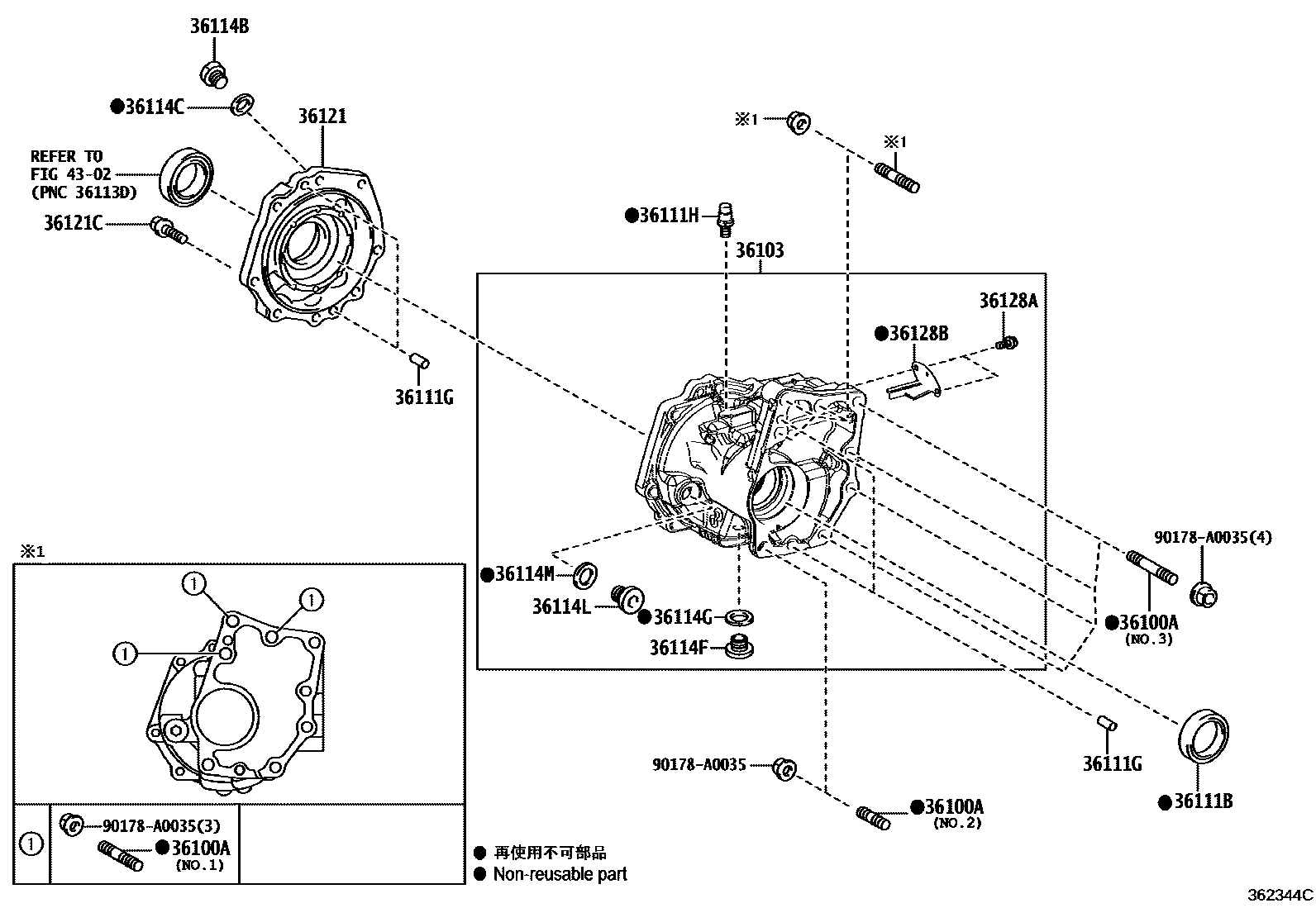

TRANSFER CASE & EXTENSION HOUSING

36100ABOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING)

main90116-12041×4iAXVA75202010

S=30 & 22,L=64,NO.3

main90116-12051×3iAXVA75202003-202010

S=22 & 22,L=73,NO.1

main90116-12052iAXVA75202003-202010

S=22 & 22,L=53,NO.2

36103CASE SUB-ASSY, TRANSFER

main36103-42070iAXVA75202003-202007

main36103-52030iAXVA75202010

36111BSEAL, OIL (FOR TRANSFER CASE)

main90311-55002iAXVA75202003-202010

36111GPIN, STRAIGHT (FOR TRANSFER CASE)

main90250-10017×4iAXVA75202003-202010

L=20,OD=10

36111HPLUG, BREATHER (FOR TRANSFER CASE)

main90930-03133iAXVA75202003-202010

36114BPLUG, NO.1 (FOR TRANSFER CASE)

main90341-18006iAXVA75202003-202010

36114CGASKET, NO.1 (FOR TRANSFER CASE)

main12157-10010iAXVA75202003-202010

36114FPLUG (FOR TRANSFER DRAIN)

main90341-18051iAXVA75202003-202010

36114GGASKET (FOR TRANSFER DRAIN PLUG)

main12157-10010iAXVA75202003-202010

36114LPLUG, FILLER(FOR TRANSFER)

main90341-18023iAXVA75202003-202010

36114MGASKET (FOR TRANSFER FILLER PLUG)

main12157-10010iAXVA75202003-202010

36121COVER, TRANSFER CASE, NO.1

main36121-52020iAXVA75202003-202010

36121CBOLT, WASHER BASED HEAD HEXAGON (FOR TRANSFER CASE COVER)

main91552-81030×8iAXVA75202003-202010

36128ABOLT (FOR BREATHER OIL DEFLECTOR)

main91621-60614×2iAXVA75202003-202010

36128BDEFLECTOR, BREATHER OIL

main36128-42010iAXVA75202003-202010

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

90178A0035

main90178-A0035

17 parts on this diagram · 1 diagram in section
